ETI 9230 Differential Manometer

ETI
SKU: ETI9230
  • Wide pressure measurement range goes from -2068mbar to +2068mbar
  • Readings are precise to 1mbar and accurate to ±0.5%
  • Suitable for industrial applications thanks to IP65 waterproof rating
More Info
In Stock - Available Next Day

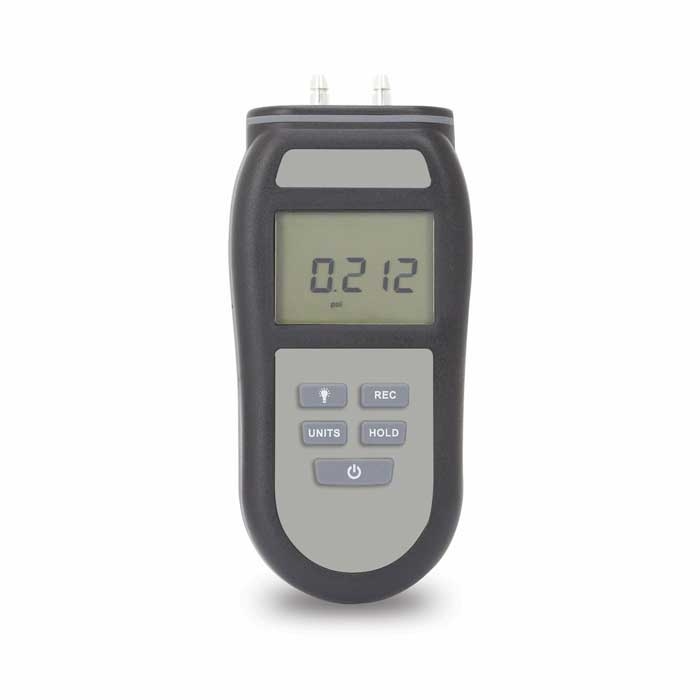

ETI 9230 Differential Manometer

The ETI 9230 Differential Manometer can measure pressure from -2068mbar to +2068mbar with an accuracy of ±0.5% and a resolution of 1mbar. That makes it suitable for measuring high pressures in a range of sectors including HVAC and gas engineering. It is suitable for both gauge and differential pressure measurement of air or non-corrosive gases.

The ETI 9230 has a backlit display screen capable of showing gauge pressure from each hose or differential pressure with options for both min/max recording and data hold. The user has the choice of 11 different units and there is a battery life of 100 hours.

The manometer is covered by a two-year guarantee and it has an IP65 waterproof rating thanks to an integrated rubber seal and tough ABS casing. Two 500mm pressure hoses are supplied as standard.

9200 Series Pressure Meters Comparison table

  ETI 9205 ETI 9215 ETI 9230 ETI 9275
Range & Resolution - psi:

Range: ±5,    Resolution: 0.001

Range: ±15,    Resolution: 0.01

Range: ±30,    Resolution: 0.01

Range: ±75,  Resolution: 0.1
Range & Resolution - inH2O: Range: ±138.4, Resolution: 00.1 Range: ±415.2, Resolution: 0.1 Range: ±830.4, Resolution: 1 Range: ±2076, Resolution: 1
Range & Resolution - mbar: Range: -334.7 to +344.7,          Resolution: 0.1 Range: -1034.2 to +1034.2,          Resolution: 1 Range: -2068.4 to +2068.4,          Resolution: 1 Range: -5171 to +5171,        Resolution: 1
Range & Resolution - kPa: Range: ±34.47, Resolution: 0.01 Range: ±103.4, Resolution: 1 Range: ±206.8, Resolution: 0.1 Range: ±517.1, Resolution: 0.1
Range & Resolution - inHg Range: ±10.18, Resolution: 0.001 Range: ±30.54, Resolution: 0.01 Range: ±61.08, Resolution: 0.01 Range: ±152.7, Resolution: 0.1
Range & Resolution - mmHg: Range: ±258.5, Resolution: 0.1 Range: ±775.7, Resolution: 0.1 Range: ±1551.4, Resolution: 1 Range: ±3879, Resolution: 1
Range & Resolution - ozin2: Range: ±80,      Resolution: 0.01 Range: ±240, Resolution: 0.1 Range: ±480, Resolution: 0.1 Range: ±1200, Resolution: 1
Range & Resolution - ftH2O: Range: ±11.53, Resolution: 0.001 Range: ±34.60, Resolution: 0.01 Range: ±69.20, Resolution: 0.01 Range: ±173.0, Resolution: 0.1
Range & Resolution - cmH2O: Range: ±351.5, Resolution: 0.1 Range: ±1055, Resolution: 1 Range: ±2109, Resolution: 1 Range: ±5273, Resolution: 1
Range & Resolution - kgcm2: Range: ±0.351, Resolution: 0.001 Range: ±1.055, Resolution: 0.001 Range: ±2.109, Resolution: 0.001 Range: ±5.273, Resolution: 0.001
Range & Resolution - bar: Range: ±0.344, Resolution: 0.001 Range: ±1.034, Resolution: 0.001 Range: ±2.068, Resolution: 0.001 Range: ±5.171, Resolution: 0.001
Accuracy ±0.5%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C
Two 500mm long x 6mm ID connection hoses with batteries ✔
Two 300mm long x 4mm ID hoses with batteries   ✔ ✔ ✔

ETI part number: 825-930

Key Features

  • Range: -2068mbar to +2068mbar
  • Resolution: 1mbar
  • Accuracy: ±0.5%
  • Applicable across industries
  • Backlit digital display
  • Min/max recording and data hold
  • IP65 waterproof rating
  • Two-year guarantee
Specification
  • Range: -2068mbar to +2068mbar
  • Resolution: 1mbar
  • Accuracy: ±0.5% FS (25˚C)
  • Units: psi, inH2O, mbar, kPa, inHg, mmHg, ozin2, ftH2O, cmH2O, kgcm2, bar
  • Repeatability: ±0.2% (Max. 0.5% FS)
  • Battery: 3 x 1.5V AAA
  • Battery life: 100 hours
  • Display: Custom LCD
  • Dimensions: 32mm x 71mm x 141mm
  • Weight: 220g
