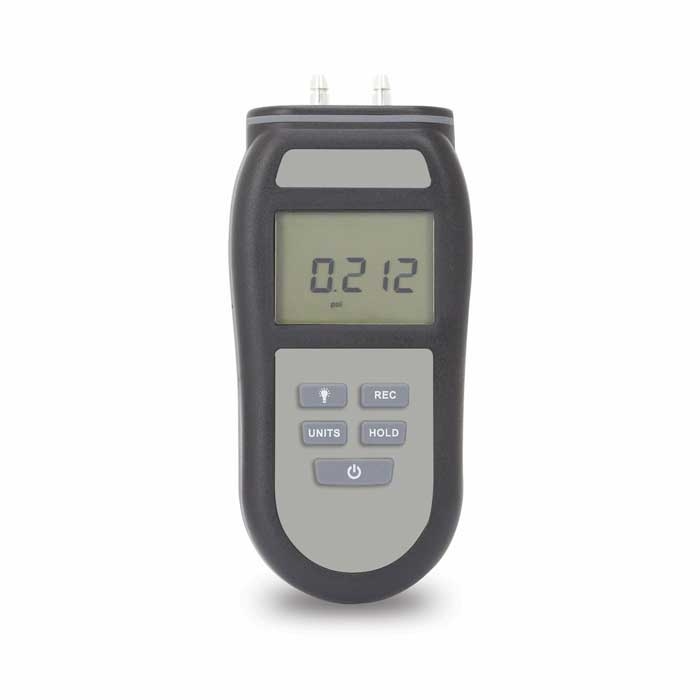

ETI 9275 Differential Manometer

SKU: ETI9275
  • Measures over large -5168mbar to +5168mbar range
  • Provides both differential and gauge readings
  • User has choice of readings in eleven different units
More Info
In Stock - Available Next Day

ETI 9275 Differential Manometer

The ETI 9275 Differential Manometer is a useful pressure meter with a measurement range of -5168mbar to +5168mbar, accuracy of ±3% and a resolution of 1mbar. It is particularly suited to measuring high pressures in the HVAC and gas sectors as it can perform both differential and gauge pressure measurements of air and non-corrosive gas.

A backlit digital display screen shows pressure readings from the first hose and second hose as well as a differential pressure reading. Minimum and maximum readings can be recorded and there is also a display hold function that freezes a reading on screen. The user can choose between 11 different units.

The ETI 9275 is covered by a two-year warranty and it has a practical 100-hour battery life. IP65-rated ABS casing is made watertight by a rubber seal and the manometer is supplied with two 500mm pressure hoses as standard.

9200 Series Pressure Meters Comparison table

  ETI 9205 ETI 9215 ETI 9230 ETI 9275
Range & Resolution - psi:

Range: ±5,    Resolution: 0.001

Range: ±15,    Resolution: 0.01

Range: ±30,    Resolution: 0.01

Range: ±75,  Resolution: 0.1

Range & Resolution - inH2O: Range: ±138.4, Resolution: 00.1 Range: ±415.2, Resolution: 0.1 Range: ±830.4, Resolution: 1 Range: ±2076, Resolution: 1
Range & Resolution - mbar: Range: -334.7 to +344.7,          Resolution: 0.1 Range: -1034.2 to +1034.2,          Resolution: 1 Range: -2068.4 to +2068.4,          Resolution: 1 Range: -5171 to +5171,        Resolution: 1
Range & Resolution - kPa: Range: ±34.47, Resolution: 0.01 Range: ±103.4, Resolution: 1 Range: ±206.8, Resolution: 0.1 Range: ±517.1, Resolution: 0.1
Range & Resolution - inHg Range: ±10.18, Resolution: 0.001 Range: ±30.54, Resolution: 0.01 Range: ±61.08, Resolution: 0.01 Range: ±152.7, Resolution: 0.1
Range & Resolution - mmHg: Range: ±258.5, Resolution: 0.1 Range: ±775.7, Resolution: 0.1 Range: ±1551.4, Resolution: 1 Range: ±3879, Resolution: 1
Range & Resolution - ozin2: Range: ±80,      Resolution: 0.01 Range: ±240, Resolution: 0.1 Range: ±480, Resolution: 0.1 Range: ±1200, Resolution: 1
Range & Resolution - ftH2O: Range: ±11.53, Resolution: 0.001 Range: ±34.60, Resolution: 0.01 Range: ±69.20, Resolution: 0.01 Range: ±173.0, Resolution: 0.1
Range & Resolution - cmH2O: Range: ±351.5, Resolution: 0.1 Range: ±1055, Resolution: 1 Range: ±2109, Resolution: 1 Range: ±5273, Resolution: 1
Range & Resolution - kgcm2: Range: ±0.351, Resolution: 0.001 Range: ±1.055, Resolution: 0.001 Range: ±2.109, Resolution: 0.001 Range: ±5.273, Resolution: 0.001
Range & Resolution - bar: Range: ±0.344, Resolution: 0.001 Range: ±1.034, Resolution: 0.001 Range: ±2.068, Resolution: 0.001 Range: ±5.171, Resolution: 0.001
Accuracy ±0.5%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C
Two 500mm long x 6mm ID connection hoses with batteries
Two 300mm long x 4mm ID hoses with batteries

ETI part number: 825-975

Key Features

  • Range: -5168mbar to +5168mbar
  • Accuracy: ±3%
  • Resolution: 1mbar
  • Differential and gauge temperature measurement
  • Suitable for air and non-corrosive gases
  • Min/max recording and data hold
  • Choice of 11 different units
  • IP65 watertight casing
  • Two-year warranty
Specification
  • Range: -5168mbar to +5168mbar
  • Accuracy: ±3%
  • Resolution: 1mbar
  • Units: psi, inH2O, mbar, kPa, inHg, mmHg, ozin2, ftH2O, cmH2O, kgcm2, bar
  • Repeatability: ±0.2% (Max. 0.5% FS)
  • Battery: 3 x 1.5V AAA
  • Battery life: 100 hours
  • Display: Custom LCD
  • Dimensions: 32mm x 71mm x 141mm
  • Weight: 220g
