ETI MicroCal 1 Plus Temperature Calibrator

SKU: ETIMICROCAL1PLUS
  • Simulates temperature on thermocouple types K, J, T, R, N, S and E
  • Supplied with five-point UKAS Certificate of Calibration
  • Measures temperature in addition to calibration
More Info
Typically ships in 2-4 working days

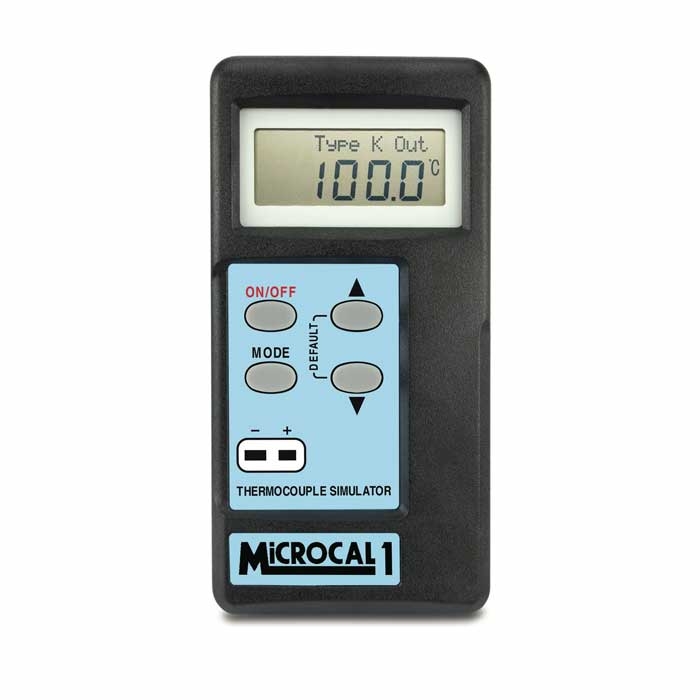

ETI MicroCal 1 Plus Temperature Calibrator

The ETI MicroCal 1 Plus Temperature Calibrator simulates a chosen temperature for thermometers that operate type K, J, T, R, N, S and E thermocouples. This is done via 12 adjustable temperature points and there is no need for a conversion table or any specialist equipment.

Temperature simulation is accurate to ±0.3˚C and the calibrator is supplied with a five-point UKAS Certificate of Calibration. The instrument can also act as a thermometer thanks to a temperature measurement function.

The ETI MicroCal 1 has a clear digital screen which shows the reference or measured temperature in Celsius or Fahrenheit and the calibrator is operated using the simple push-button interface. It has a battery life of 300 hours and a two-year warranty.

Please note that a 1m type K thermocouple lead is provided as standard with the ETI MicroCal 1 Plus, but an extra set of test leads are required to test types K, J, T, R, N, S and E. It is possible to add this set to the purchase by clicking the checkbox above.

ETI part number: 271-101

Key Features

  • Simulate temperature for thermocouples
  • Compatible with: Type K, J, T, R, N, S and E
  • Five-point UKAS Calibration Certificate provided
  • 12 adjustable temperature points
  • Simulation accurate to ±0.3˚C
  • Measures temperature
  • Helps calibrate thermometers
  • Two-year warranty
Specification

Ranges

  • Type K: -200˚C to 1372˚C
  • Type J: -200˚C to 1200˚C
  • Type T: -270˚C to 400˚C
  • Type R: 0˚C to 1768˚C
  • Type N: -200˚C to 1300˚C
  • Type S: 0˚C to 1768˚C
  • Type E: -140˚C to 1000˚C
  • Accuracy: ±0.3˚C (dependent on thermocouple type)
  • Battery: 2 x 1.5V AAA
  • Battery life: 300 hours
  • Sensor type: Thermocouple types K, J, T, R, N, S and E
  • Display: Custom LCD
  • Dimensions: 35mm x 73mm x 141mm
  • Weight: 175g
