Extech 382213 Digital Triple Output DC Power Supply

Be the first to review this product

  • Adjustable Voltage and Current output
  • Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
  • Constant Voltage or Current
In Stock
Returns Guarantee

rrp £209.42

now £169.00 (Ex. VAT) £202.80 (Inc. VAT)

rrp £209.42


Please select a free gift below.

  • Description

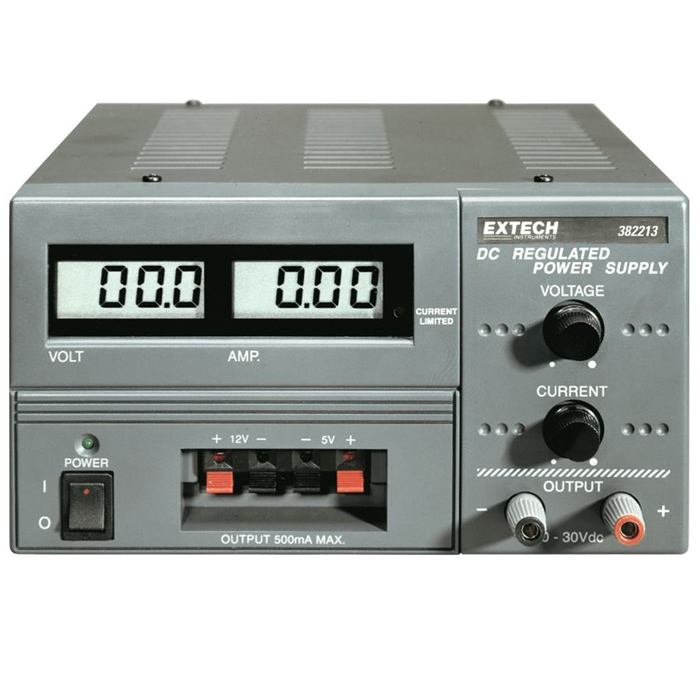

    Extech 382213 Digital Triple Output DC Power Supply

    Outputs a constant amount of voltage and current from three output ports that can be used absolutely anywhere

    A power supply module with digital indicators that show the level of current/voltage currently being sent out from the unit, with easy to adjust output levels thanks to rotary dials on the front of the unit. An adjustable range from 0-30V and includes a 0-3A modes and fixed 5V and 12V voltage modes. The latter of these functions make this an ideal power supply for TTL or CMOS projects.

    The 382213 also includes easy snap terminals, overload protection, short circuit protection, has a current limiting front panel LED indicator and uses binding post terminals for variable supply.

    Extech 382213 Key Features

    • Digital LCD display
    • Triple Output: Adjustable 0-30V, 0-3A plus fixed 5V and 12V
    • 0-30V Adjustable Voltage Output
    • 0-3A Adjustable Current Output
    • Independent 5V and 12V Outputs Provide Power for TTL or CMOS Projects
    • Easy Snap Terminals for 5V and 12V outputs
    • Overload and Short Circuit Protection
    • Constant Voltage or Current
    • Current Limiting Front Panel LED Indicator
    • Binding Post Terminals for Variable Supply
    • Complete with power cord
  • Specification

    • Voltage Output, DC: 0 to 30 Volts
    • Current Output, DC: 0 to 3 Amps
    • Ripple and Noise: <5mV
    • Line Regulation: <0.05%+10mV
    • Load Regulation: <0.05%+10mV
    • Fixed Output Voltage: 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max)
    • Display: Digital (V&A),3 digit 0.1 res. LCD
    • Power: 110/220VAC 50/60Hz
    • Dimensions: 6 x 5.6 x 9.5" (152 x 142 x 242)
    • Weight: 11lbs. (5kg)
  • Product Documents

    Product Attachments

    View FileExtech 382203 Datasheet    Size: (198.78 KB)
