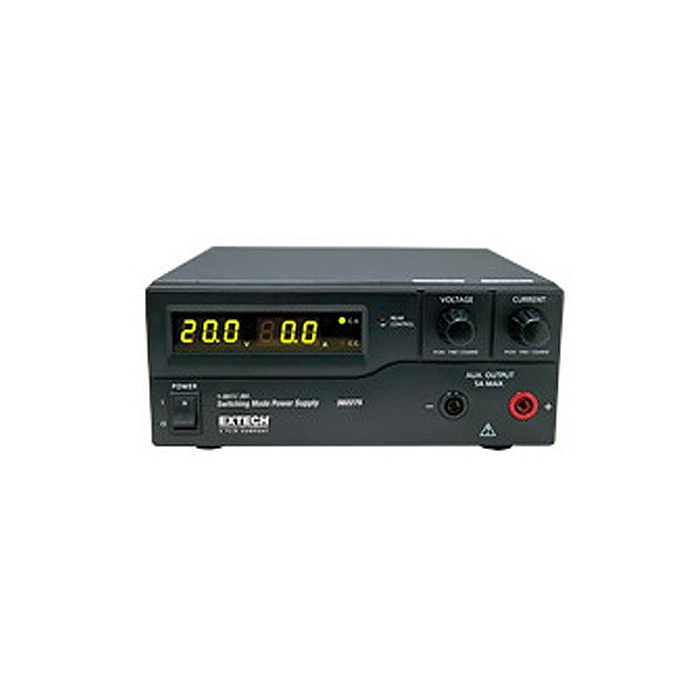

Extech 382276 600W Switching Mode DC Power Supply (230V)

SKU: EXTE382276
  • 0 to 30V, 20A max. adjustable output switching mode power supply
  • Remote Control for output Voltage/Current and On/Off
  • Two user-defined Voltage and Current presets and one 13.8V/20A factory preset
More Info
Typically ships in 7-10 working days

Extech 382276 600W Switching Mode DC Power Supply (230V)

An advanced, laboratory grade bench DC power supply that outputs voltage and current as needed, comes with a remote Control for output Voltage/Current and On/Off ease of use.

Two user-defined Voltage and Current presets and one 13.8V/20A factory preset, this device is suitable for use in a wide variety of testing environments where a constantly generated supply of power is needed over a time period. With advanced features such as automatic constant current, constant voltage crossover and high RFI immunity

Another main feature is the 3 dual LED displays on the front of the device, also featuring a thermostatic control fan that can be configured at different speeds and advanced safety protection with built-in over voltage, over-temperature and short circuit protection. Comes with a 2 Year Warranty.

Extech 382275 Bench Power Supply Key Features

  • 0 to 30V, 20A adjustable output switching mode power supply
  • Remote Control for output Voltage/Current and On/Off
  • Two user-defined Voltage and Current presets and one 13.8V/20A factory preset
  • Automatic Constant Current and Constant Voltage crossover
  • Dual 3-Digit LED displays
  • High RFI immunity and excellent EMI
  • Thermostatic Control Fan from zero to full speed
  • Over voltage, over-temperature, and short circuit protection
  • Low profile and small footprint
  • Complete with power cord
  • 2 Year Warranty
Specification
  • Output Voltage (Res.): 1 to 30V (100mV)
  • Output Current (Res.): 1 to 20A (100mA)
  • Basic accuracy: ±(0.5%+2 digits)
  • Load Voltage Regulation: 50mV
  • Line Voltage Regulation: 20mV
  • Load Current Regulation: 100mA min
  • Line Current Regulation: 50mA min
  • Ripple and Noise: <5mVrms
  • Power Input: 230V, 50Hz/60Hz
  • Dimensions: 7.9 x 3.5 x 8.5" (200 x 90 x 215mm)
  • Weight: 5.7lbs (2.6kg)
  • Extech 382276 Warranty: 2 years
Label Type Size Download
pdf Extech 382275 382276 Datasheet pdf 140.8 KB Download
