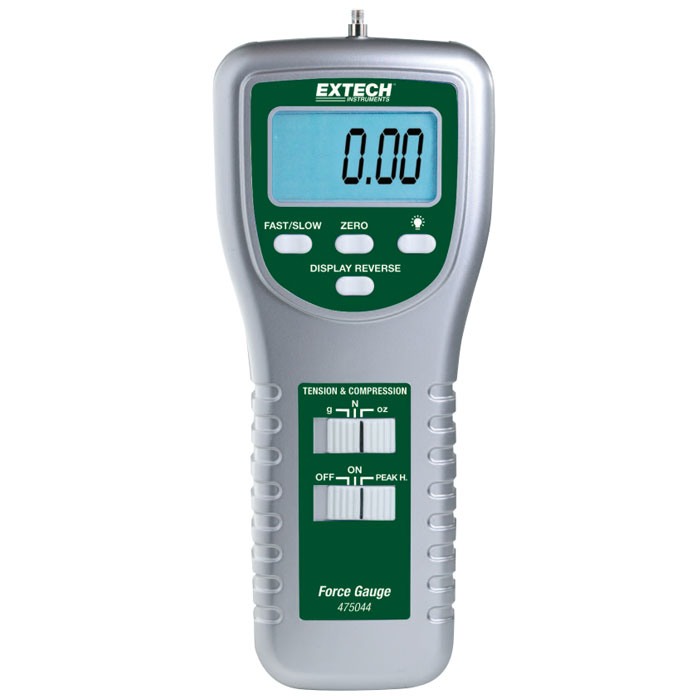

Extech 475044 High Capacity Force Gauge

Be the first to review this product

  • Measures push/pull force up to 20kg, 44lbs and 196 newtons
  • Allows readings at Fast/slow rates
  • Reversible display, Zero Adjust, Peak Hold and more

rrp £448.68

now £359.00 (Ex. VAT) £430.80 (Inc. VAT)

rrp £448.68

Please select a free gift below.

"Measures push/pull force up to 20kg, 44lbs and 196 newtons"

  • Description

    Extech 475044 High Capacity Force Gauge

    Measuring push/pull force up to 20kg, 44lbs and 196 newtons, the Extech 475044 High Capacity Force Gauge is the perfect instrument for measuring force in any location.

    With its high accuracy and resolution ensuring that measurements are always right, the Extech 475044’s results are displayed on a reversible LCD screen making it ideal for use in all environments.

    Allowing readings at fast or slow rates, the 475044 also features a zero adjust button, peak hold switch and indicators for overrange and low battery.

    Extech 475044 Key Features

    • Range: 44 lbs, 20kg, 196 Newtons (with ±0.5% accuracy)
    • Reversible display
    • Fast/slow response modes
    • Exclusive load cell measurement transducer
    • Overrange, low battery and advanced function indication
    • Zero Adjust push-button and Peak Hold switch
    • Complete with hook adaptor for tension/compression adaptors, 5" extension rod, 6 AA batteries and carrying case
  • Specification

    • Range: 44 lbs, 20kg, 196 Newtons
    • Accuracy (23°C): ±(0.5% + 2 digit)
    • Resolution: 0.01lbs, 0.01kg, 0.05 Newtons
    • Overload Capacity: 30kg
    • Display: 5 digits, 0.4" (10mm) LCD display
    • Update Rate: Fast mode 0.2 secs; Slow mode 0.6 secs.
    • Full Scale Deflection: 2.00mm
    • Transducer Type: Load cell
    • Peak Hold: Freezes Max reading on display
    • Power Supply: Six 1.5V AA (UM-3) batteries or DC 9V adaptor (not included)
    • Weight: 551g (1.2 lbs)
    • Size: 227 x 83 x 39mm (8.9 x 3.3 x 1.5")
  • Supplied Accessories

    • Extech 475044 High Capacity Force Gauge
    • Hook Adaptor
    • Compression Adaptors (Flat, Cone And Chisel Head)
    • 5" Extension Rod
    • 6x AA Batteries
    • Carrying Case
  • Product Documents

    Product Attachments

    View FileExtech Digital Forge Gauges Datasheet    Size: (361.17 KB)
