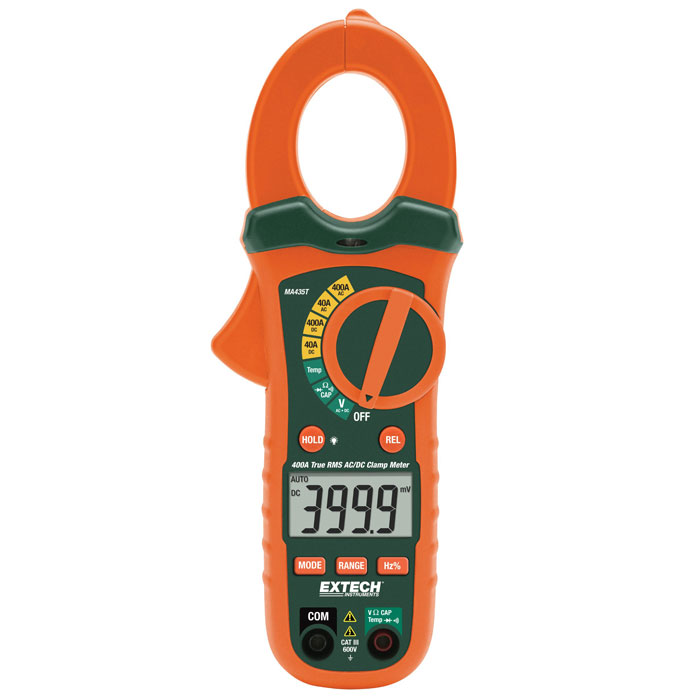

Extech MA435T 400A True RMS AC/DC Clampmeter with NCV

Be the first to review this product

  • True RMS AC/DC Current measurement up to 400A
  • Temperature measurements from -20 to 760°C
  • Full range of multimeter functions, including non-contact voltage detection

rrp £108.88

now £92.00 (Ex. VAT) £110.40 (Inc. VAT)

rrp £108.88

Please select a free gift below.

"True RMS AC/DC current measurement, plus temperature from -20 to 760°C and NVD"

  • Description

    Extech MA435T 400A True RMS AC/DC Clampmeter with NCV

    The Extech MA435T True RMS AC/DC Clamp Meter is capable of measuring a wide range of electrical parameters such as AC/DC current up to 400A and AC/DC voltage up to 600V in addition to resistance (40MΩ), capacitance (100µF), frequency (10kHz), and temperature (-20˚C to 760˚C). AC current readings have an accuracy of ±(2.8% + 8 digits) and DC current readings have an accuracy of ±(2.5% + 5 digits) with a maximum resolution of 0.01A. There are also diode and continuity test functions.

    Current readings are taken via the Extech MA435T’s 30mm movable jaw clamp and the whole meter is designed for one-handed operation with features such as simple dial function selection, data hold, automatic and manual ranging, and a lightweight compact design. Readings are shown on the backlit LCD screen and there is also a relative mode.

    The Extech MA435T comes supplied with a type K thermocouple for measuring surface temperatures as well as test leads, test probes, a battery and a soft carry case with a handle.

    Key Features

    • AC/DC current range: 0 to 400A
    • AC/DC voltage range: 0 to 600V
    • Resistance range: 0 to 40MΩ
    • Capacitance range: 0 to 100µF
    • Frequency range: 10Hz to 10kHz
    • Temperature range: -20˚C to 760˚C
    • 30mm jaw clamp
    • Simple dial function
    • Data hold and relative mode
    • Type K thermocouple and test lead supplied
  • Specification

    • AC Current: 400A (0.01A) range, ±(2.5% + 8d) basic accuracy
    • DC Current: 400A (0.01A) range, ±(2.5% + 5d) basic accuracy
    • AC Voltage: 600V (0.1mV) range, ±(1.5% + 5d) basic accuracy
    • DC Voltage: 600V (0.1mV) range, ±(1.5% + 2d) basic accuracy
    • Resistance: 40MΩ (0.1Ω) range, ±(1.5% + 2d) basic accuracy
    • Frequency: 10Hz to 10kHz range, ±(1.5% + 2d) basic accuracy
    • Capacitance: 100µF (0.01nF) range, ±(3.0% + 5d) basic accuracy
    • Temperature: -4 to 1400°F/-20 to 760°C (0.1°) range, ±(3% + 9°F/5°C) basic accuracy
    • Diode/Continuity: Yes
    • Display Count: 4000
    • Dimensions: 197 x 70 x 40mm (7.8 x 2.8 x 1.6")
    • Weight: 183g
  • Supplied Accessories

    • Extech MA435T 400A True RMS AC/DC Clampmeter with NCV
    • Type K Temperature Probe
    • Test leads
    • 9V battery
    • Soft case
