Extech SDL470 UVA/UVC Light Meter

Extech Instruments
SKU: EXTESDL470
  • Measures UV irradiance under UVA and UVC light sources
  • Date/time stamp readings and store them on an SD card (supplied)
  • Type K/J Thermocouple input for temperature measurements (probes sold separately)
More Info
Typically ships in 7-10 working days

Extech SDL470 UVA/UVC Light Meter

Featuring two types of probe, allowing measurement of UVA and UVC light sources up to 20mW/cm2, the Extech SDL470 UVA/UVC Light Meter is a versatile instrument for measuring UV irradiance under a range of sources.

With its cosine correction filter and metal housing, the Extech SDL470 provides offset adjustment for zero function or to make relative measurements and an adjustable data sampling rate, ranging from 1 to 3600 seconds.

The Extech SDL470 also provides datalogging functionality, date/time stamping readings and storing them on an SD card in an Excel format.

Featuring a large backlit LCD screen, Type K/J thermocouple input for temperature measurements (probes sold separately), MIN/MAX readings, data hold and auto power off functions, the Extech SDL470 UVA/UVC Light Meter comes complete with built-in stand, hard case and 6 AA batteries to get you started right away.

Specification

UVA Range

  • Range: 2mW/cm2, 20mW/cm2
  • Max Resolution: 0.001mW/cm2
  • Basic Accuracy: ±4% FS

UVC Range

  • Range: 2mW/cm2, 20mW/cm2
  • Max Resolution: 0.001mW/cm2
  • Basic Accuracy: ±4% FS

Frequency Bandwidth

  • Range: 365nm (UVA); 254nm (UVC)

Type K Temperature

  • Range: -148 to 2372°F (-100 to 1300°C)
  • Max Resolution: 0.1°F/°C
  • Basic Accuracy: ±(0.4%±1.8°F/1°C)

Type J Temperature

  • Range: -148 to 2192°F (-100 to 1200°C)
  • Max Resolution: 0.1°F/°C
  • Basic Accuracy: ±(0.4%±1.8°F/1°C)

General

  • Memory: Datalog readings on SD card (included)
  • Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
  • Weight: 16.2oz (475g)
Label Type Size Download
pdf Extech SDL470 Datasheet pdf 270.5 KB Download

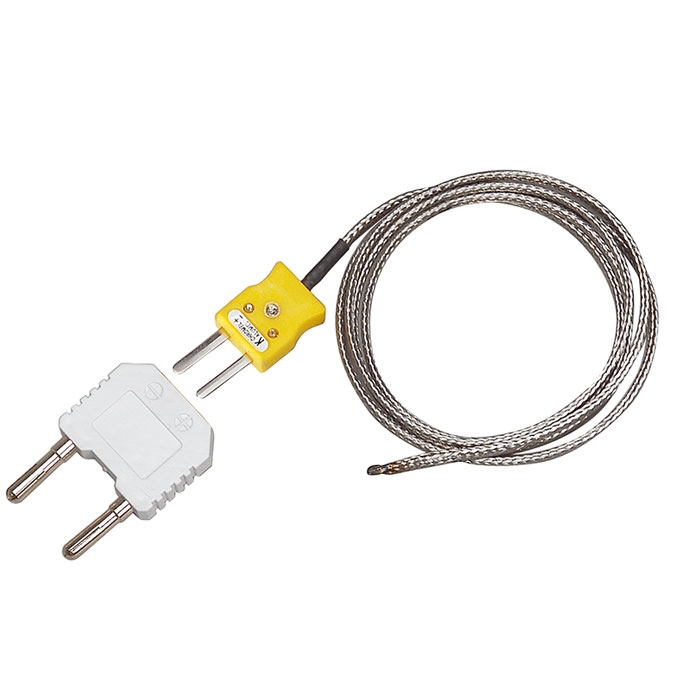

  1. Extech TP875 Type K Thermocouple
