Extech VIR50 Video IR Thermometer

SKU: EXTEVIR50
Built-in camera offers JPEG and video recording when making temperature, humidity, dew point & wet bulb measurements.
More Info
Typically ships in 7-10 working days

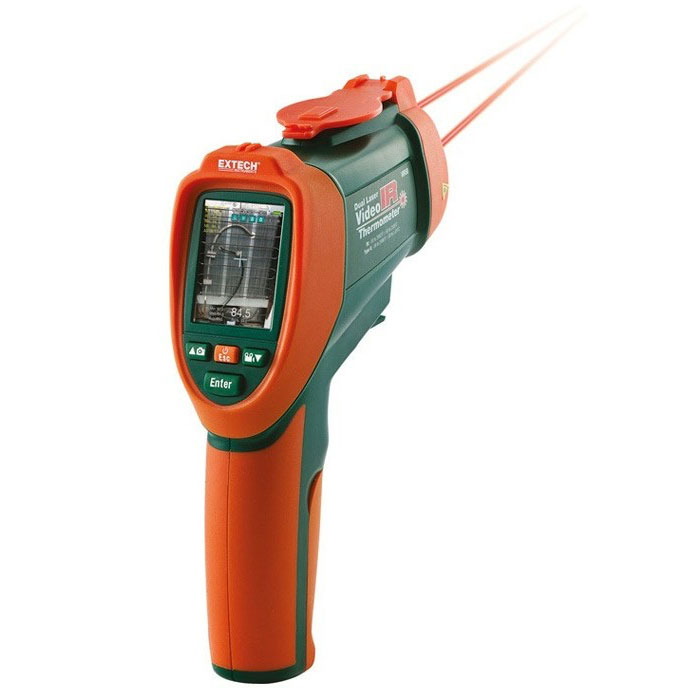

Extech VIR50 Video IR Thermometer

The Extech VIR50 Video IR Thermometer provides both infrared and thermocouple temperature readings. A unique feature of the VIR50 is a built-in camera that offers photographic and video recording of targets, allowing enhanced documentation of temperature measurements.

While in video and IR mode, the Extech VIR50 can measure infrared temperature, air temperature, humidity, dew point and wet bulb temperatures along with full use of the video camera. The IR Video Thermometer can also be used in IR-only Mode when the video capabilities are not required.

In addition the versatile Extech Video Thermometer offers min, max, average and differential temperature values with adjustable emissivity allowing users to compensate for different surfaces and achieve accurate temperature readings.

The VIR50 Infrared Thermometer is supplied complete with a micro SD memory card for storing and transferring JPEG, video and temperature data to a PC for further analysis. The built-in laser pointer increases target accuracy while the backlit display and handy push buttons enable straightforward and convenient operation.

Extech VIR50 InfraRed Video Thermometer Features:

  • Dual laser targeting
  • Fast 150 millisecond response time
  • Color LED bargraph for viewing trends
  • Type K Thermocouple input
  • Air Temperature and Relative Humidity measurement
  • Adjustable emissivity increases measurement accuracy
  • Adjustable High/Low set points with audible alarm
  • MAX/MIN/AVG/DIF functions
  • Trigger lock function for continuous readings
  • Auto power off
  • Double molded housing

What's In The Box?

  • Type K Bead Wire Probe
  • microSD Card
  • USB Cable
  • Rechargeable 3.7V Battery
  • Carry Case
Specification
  • Laser Convergence Distance: 50" (127cm)
  • IR Temperature Range: -50 to 2200°C
  • Repeatability: ±0.5% or 1°C
  • Basic Accuracy: ±(1% of rdg + 2°C)
  • Max Resolution: 0.1°C
  • Emissivity: 0.10 to 1.00 Adjustable
  • Field of View (Distance to Target): 50:1
  • Type K Temperature Range: -50 to 1370°C
  • Air Temperature Range: 0 to 50°C
  • Relative Humidity: 0 to 100%RH
  • LCD Display: 2.2” TFT 320 x 240 pixels
  • Camera: 640 x 480 pixels
  • Dimensions: 189 x 152 x 57mm
  • Weight: 494g
