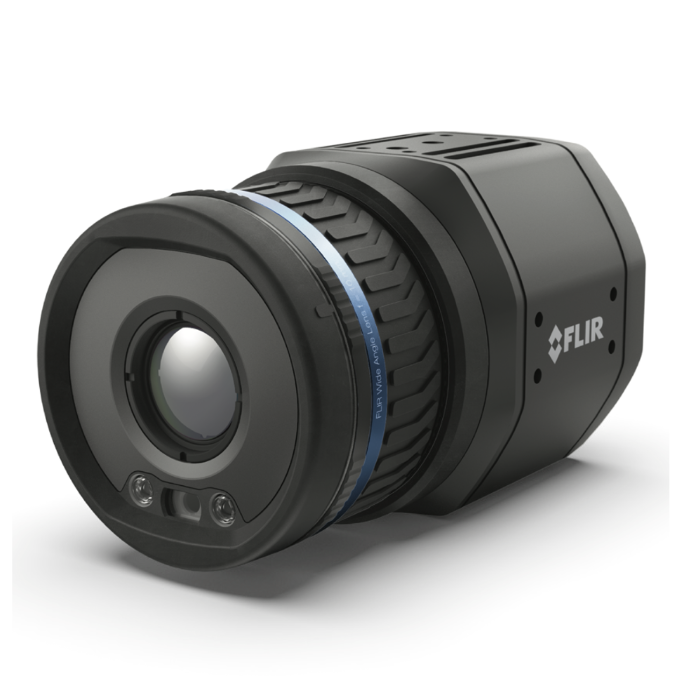

FLIR A400 Elevated Skin Temperature Thermal System

Be the first to review this product

  • Thermal imaging system for detecting Elevated Body Temperatures (EBT)
  • Featuring a 24˚ lens, ±2˚ accuracy and 320 x 420 pixel thermal resolution
  • Incorporated Wi-Fi & compatible with new or pre-existing networks
(Ex. VAT) £8,888.00 (Inc. VAT) £10,665.60
OR

Please select a free gift below.

  • Description

    FLIR A400 Elevated Skin Temperature Thermal System

    The FLIR A400 Elevated Skin Temperature Thermal System offers advanced thermal imaging, compatible with new or pre-existing networks to provide a customisable system capable of detecting abnormal skin temperatures. While the A400 is not a diagnostic tool, it can be paired with the relative medical equipment and used as a device for potentially detecting illnesses by determining EBT (elevated body temperatures). This smart sensor designed for screening individuals features a 24˚ lens, an accuracy of ±2˚C and a thermal resolution of 320 x 240 pixels. Tailor the system to suit safety needs with a vast array of configurable options.

    An intuitive system, the FLIR A400 features a motorised focus function alongside a wealth of analytical tools. The thermal camera includes 10 spotmeters, 10 boxes or mask polygons, 3 Deltas, 2 isotherms (above/below/interval) and hot/cold detection capabilities. Analysis features such as the polygon line function enable the operator to increase thermal imagery definition for further analysis, similarly the Flexible Scene Enhancement (FSX) enhances low light details by increasing the contrast even in areas with little variance in temperature. With this advanced model, the option to adjust measurements and alarms based on a reference temperature source is also included.

    Combining edge computing and an Industrial Internet of Things (IIOT) with incorporated Wi-Fi, the FLIR A400 Elevated Skin Temperature Thermal System is a sophisticated thermal imaging tool. Compressed radiometric streaming actually reduces the bandwidth needed to share images from the A400 by 90%, also allowing for multiple cameras to be connected together. The device supports Modbus TCP and EtherNet/IP, both of which simplify integration into HMI/SCADA systems. The imager can also easily integrate into web services with the REST API over XML or JSON. The FLIR A400 Thermal advanced system comes complete with a FLIR Axxx Accessory Kit and smart sensor configuration.

    FLIR A400 In Use

    Key Features

    • Thermal System for detecting Elevated Skin Temperature
    • Smart Sensor for screening individual bodies
    • 24˚ lens with motorised focus
    • Reliable accuracy of ±2˚C
    • 320 x 240 pixel thermal resolution
    • Compatible with new or pre-existing networks
    • Highly customisable
    • Analytical tools such as spotmeters, boxes & isotherms
    • Polygon line function for highly detailed thermal images
    • Flexible Scene Enhancement improves details in low light conditions
    • Adjustable measurement settings
    • Adjustable alarms
    • Edge computing included
    • An Industrial Internet of Things included
    • Wi-Fi compatible
    • Compressed radiometric streaming for sharing images
    • Reduce bandwidth by 90% with the compressed radiometric streaming
    • Connect multiple systems together
    • Modbus TCP & EtherNet/IP supported
    • Easy integration into HMI/SCADA systems
    • Easy integration into web services with the REST API over XML or JSON
    • FLIR Axxx Accessory kit included

    FLIR part number: A400

    DISCLAIMER: Although Non-Contact Forehead thermometer products should never be used to make a diagnosis of a disease or virus, they are vital in screening those with a higher skin surface temperature so that they can be medically assessed.

    Buyers Guide Banner
  • Specification

    Image and Optical Data

    • IR resolution: 320 × 240
    • Visual resolution: 1280 × 960
    • Thermal resolution: <30 mK to <50 mK, lens dependent
    • Lens: 24°
    • IR Camera Focus: One-shot contrast, motorised, manual

    Measurement

    • Object temperatures: -20°C to 2000°C (-4°F to 3632°F), 3 ranges
    • Accuracy: ±2°C (±3.6°F) or ±2% of reading

    Measurement analysis

    • Standard functions: 10 spotmeters, 10 boxes & mask polygons, 3 Deltas, 2 isotherm, 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline
    • Automatic hot/cold detection: Max./min. temperature value and position shown within box
    • Scheduled response: SFTP (image), SMTP (image and/or measurement data/result)
    • Measurement frequency: Up to 10 Hz
    • Measurement result read-out: Yes; common protocols include EtherNet/IP, Modbus TCP, MQTT, and REST API

    Alarm

    • Alarm function: On any selected measurement function; digital in; internal camera temperature
    • Alarm output: Yes: common output includes e-mail, EtherNet/IP, Modbus TCP, and RESTful API

    Video streaming, RTSP protocol

    • Unicast: Yes
    • Multicast: Yes
    • Multiple image streams: Yes

    Video stream 0

    • Source: Visual, IR, MSX®
    • Contrast enhancement: FSX , histogram equalization (IR only)
    • Overlay: With, without
    • Pixel format: YUV411
    • Encoding: H.264/MPEG4/MJPEG

    Video stream 1

    • Source: Visual
    • Overlay: No
    • Pixel format: YUV411
    • Encoding: H.264/MPEG4/MJPEG

    Radiometric streaming

    • Source: IR
    • Pixel format: MONO 16
    • Encoding: Compressed JPEG-LS; FLIR radiometric

    Ethernet

    • Interface: Wired; Wi-Fi
    • Connector types: M12 8-pin X-coded, female; RP-SMA, female
    • Ethernet type & standard: 1000 Mbps, IEEE 802.3
    • Ethernet power: Power over Ethernet, PoE IEEE 802.3af class 3
    • Ethernet protocols: Include EtherNet/IP, Modbus TCP, and MQTT

    Digital input/output

    • Connector type: M12 Male 12-pin A-coded (shared with ext. power)
    • Digital input: 2× opto-isolated, Vin (low) = 0-1.5 V, Vin (high) = 3-25 V
    • Digital output: 3× opto-isolated, 0–48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)

    Power system

    • Connector type: M12 Male 12-pin A-coded (shared with Digital I/O)
    • Power consumption: 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical

    Wi-Fi

    • Connector type: Female RP-SMA
  • Supplied Accessories

    • FLIR A400 Thermal Camera
    • 24° Lens
    • Advanced Smart Sensor Software
    • FLIR EBT Software
    • Integrated Wi-Fi
    • FLIR Axxx Accessory Kit
  • Product Documents

    Product Attachments

    View FileFLIR A400 / A700 Elevated Skin Temperature Thermal System Datasheet    Size: (1.28 MB)
