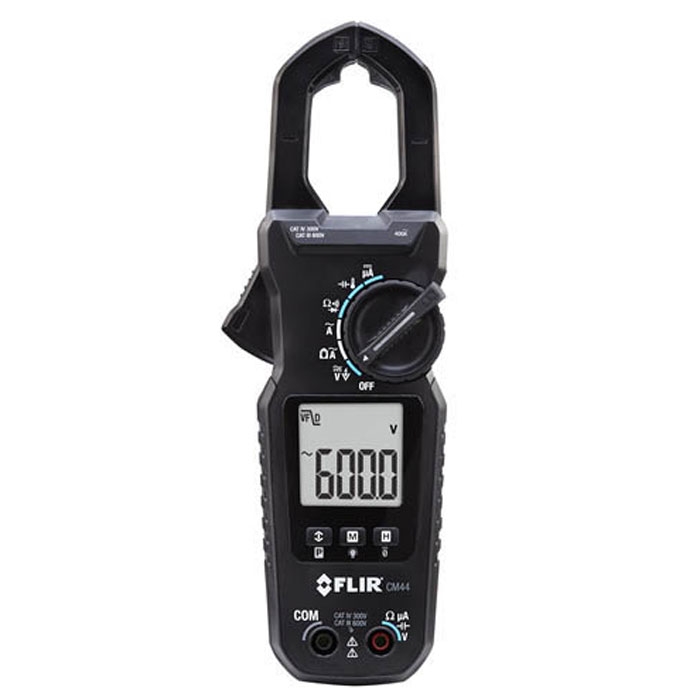

FLIR CM44 400A AC Digital True RMS Clamp Meter with Type K

Be the first to review this product

  • Takes a variety of electrical measurements to a high degree of accuracy
  • Type K thermometer probe measures temperature in case of hot/cold spots
  • Slimline design built to FLIR’s usual good build quality

rrp £143.00

now £119.00 (Ex. VAT) £142.80 (Inc. VAT)

rrp £143.00

Please select a free gift below.

"A versatile clamp meter that features an additional thermometer"

  • Description

    FLIR CM44 400A AC Digital True RMS Clamp Meter with Type K

    Part of FLIR’s CM4X clamp meter range, the FLIR CM44 Digital True RMS Clamp Meter with Type K is an affordable and versatile True RMS clamp meter that measures a range of electrical values including DC and AC voltage (up to 600V), AC current (up to 400A), frequency (50-400Hz), resistance (up to 60kΩ), capacitance (up to 2500µF), diode (up to 2V) and DCµA (up to 2000µA). Additionally, the CM44 can also make use of a Type K  thermometer probe to measure temperatures from -40℃ to +400℃. This is all done to a high degree of accuracy, particularly with current readings which benefit from Accu-Tip™ technology. Users can select between Min/Max/Avg, frequency and diode measurement when taking readings whilst there is also data hold, zero function and low pass filter (VFD) for voltage measurement.

    Like all FLIR products, the CM44 is sturdy and will last for years if maintained correctly. It is built to absorb a 2m drop and also comes with a limited lifetime warranty. The CM44 boasts several user-friendly features such as a backlit LCD screen for use in the dark, ergonomic handles and a lightweight design for comfortable use. The narrow 30mm jaw opening brings access to awkward wiring and the slim overall shape lets the Meter fit easily into a toolbox. It is versatile and practical whilst the capacity for measuring temperature adds extra utility value.

    FLIR part number: CM44

    Key Features

    • Measures AC and DC voltage (600V max), AC current (400A max), resistance, frequency, capacitance and DCµA.
    • Accu-Tip technology for more accurate currency readings
    • Narrow 30mm jaw opening for thin wiring
    • Min/Max/Avg
    • Measures temperature with Type K thermometer probe
    • Data hold, zero function, low pass filter
    • Sturdy enough to withstand 2m drop
    • Backlit LCD screen
    • Lightweight, slim, ergonomic design
    • Limited lifetime warranty
  • Specification


    • DC Voltage: 400V (accuracy: ±1%)
    • AC Voltage (Digital Low Pass Filter/VFD): 600V (accuracy: ±1%)
    • Clamp-On AC Current (50-100Hz; 100-400Hz): 400A (accuracy: ±1.8%; 2%)
    • Accu-Tip Clamp-On AC Current: 60A (accuracy: ±1.5%)
    • Frequency: 50-400Hz (accuracy 1%)
    • Resistance: 60kΩ (1%)
    • Capacitance: 2500µF (accuracy: ±2%)
    • Diode: 2.0V (accuracy: ±1.5%)\
    • DCµA: 2000µA (accuracy: ±1%)
    • Temperature: -40℃ to +400℃ (accuracy: ±1%)

    General Meter

    • Display: 1-5/6 digits 6000 counts
    • Operating Temperature: -10℃ to 50℃
    • Continuity: 10Ω< & <250Ω
    • Recording: Max/Min/Avg
    • Backlight LCD: Yes
    • Drop Test: 2m
    • Certifications: UL, CE
    • Category: Cat IV 300V / Cat III 600V
    • Jaw Opening: 30mm Max
    • NCV: Yes
    • Warranty: Limited Lifetime
    • Battery Type: 2 x AAA
