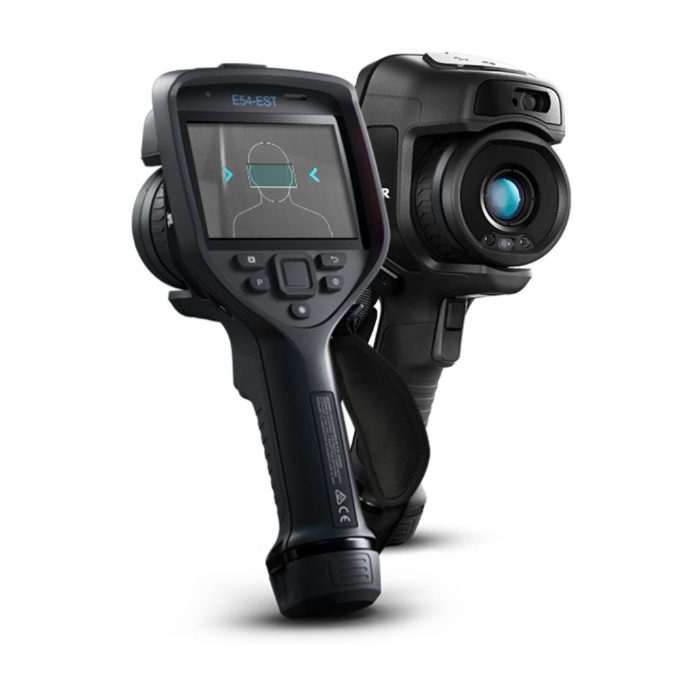

FLIR E54-EST Advanced Thermal Camera

Be the first to review this product

  • Hands-free screening device for detecting elevated skin temperatures
  • On-camera FLIR Screen-EST Mode with 'Button' & 'Auto' user options
  • Accurate, consistent readings with intuitive ambient drift compensation
(Ex. VAT) £4,172.00 (Inc. VAT) £5,006.40

Please select a free gift below.

  • Description

    FLIR E54-EST Advanced Thermal Camera

    The FLIR E54-EST Advanced Thermal Camera is a handheld, non-contact screening tool purpose built to be the first line of defence against potential health risks. With a 320 × 240 thermal pixel resolution, the E54-EST accurately detects and quickly visualises the temperature of individuals with an elevated skin temperature. These easy-to-interpret measurements are taken within a range of 15°C to 45°C and with a thermal sensitivity of <40 mK at 30°C. This state of the art FLIR IR Camera includes a fixed 24˚ lens, field of view (FOV) of 24° × 18° and an impressive on board FLIR Screen-EST Mode.

    FLIR Screen-EST Mode

    Incorporated within the FLIR E54-EST, this feature is designed specifically to determine elevated skin temperatures and to reduce the burden on screening station operators. When a temperature, compared against a sampled average value, is found to be higher than the user defined threshold an audible alarm will be produced. This average value can be updated either manually via Bluetooth using a remotely operated button in 'Button Mode', or automatically with each new screening in 'Auto mode'.

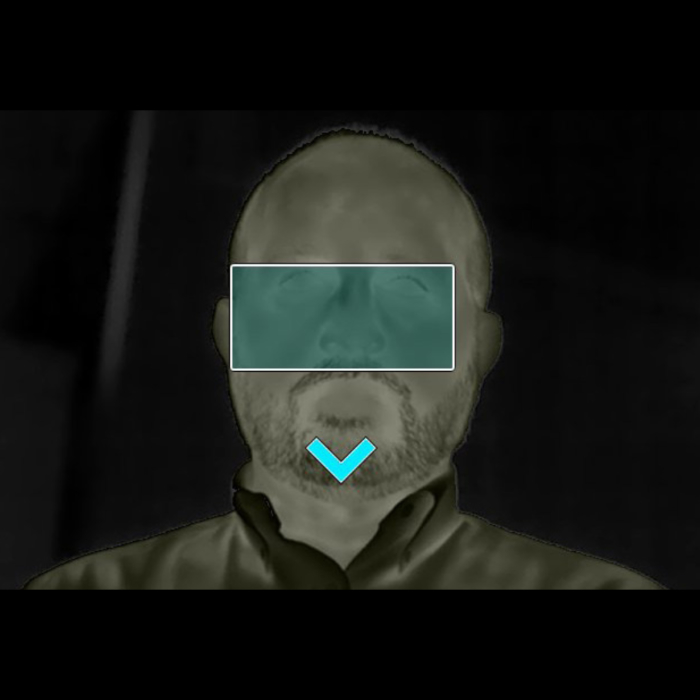

    FLIR Screen-EST Mode Auto Mode

    Auto Mode

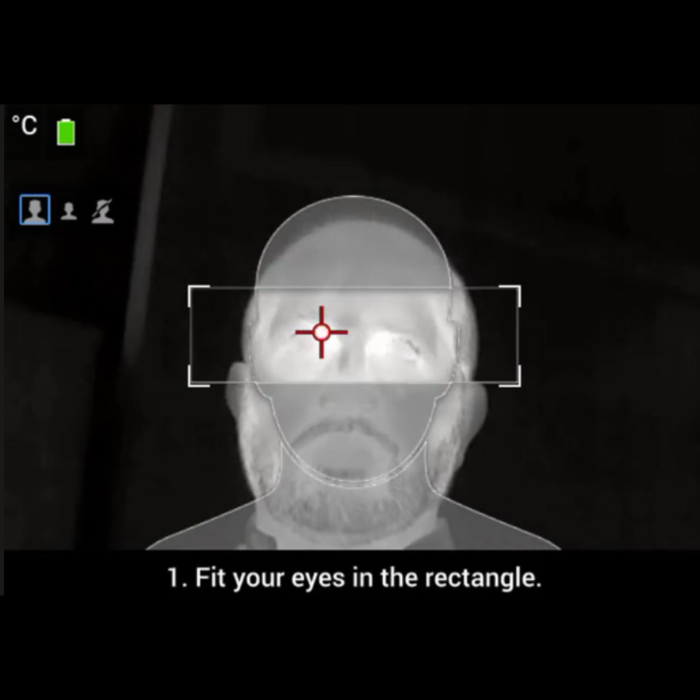

    FLIR Screen-EST Mode Button Mode

    Button Mode

    The intuitive FLIR Screen-EST Mode of the E54-EST offers helpful visual positioning guides for subjects and simple graphic pass/fail indicators for users. These thermal images refrain from displaying identifying facial features, maintaining privacy even further by not storing any images or sensitive personal information. All thermal temperature measurements captured by the EST mode require zero personal contact and are fully in line with social distancing protocols. If an individual tests above the designated threshold, they should then be evaluated using a medical device such as a thermometer.

    Accurate Screening & Easy Set-Up

    Ensure the accuracy of the FLIR E54-EST Advanced Thermal Camera with an automatic drift compensator based on ambient temperature measurements taken regularly throughout the day. Complete with 6 colour palette options, four image modes including infrared, visual and picture-in-picture the E54-EST also incorporates patented FLIR MSX technology. Alongside high performance hardware, smart analytics and reliable calibration options for optimising the screening process this thermal camera is fully compatible with FLIR Screen-EST Desktop software.

    Screening can commence swiftly with the FLIR E54-EST camera thanks to its impressively limited ramp-up time and simple video connectivity. Featuring a bright touchscreen display, integrated tripod mount and 1-4x digital zoom this device can utilise either batteries or an external power source. The 2.5 hour battery life benefits from being cable free, however the external power option makes this camera an ideal option for establishing a permanent screening station. Other features include a removable 8GB SD card and a 2 meter drop tested, IP54 rated protective outer casing.

    FLIR Exx-EST Series

    For a larger infrared pixel resolution, increased thermal sensitivity or alternate field of view the E86-EST Advanced Thermal Camera from FLIR is also available.

    Imaging DataE54-ESTE86-EST
    Infrared resolution 320 × 240 pixels 464 × 348 pixels
    Thermal sensitivity/NETD<40 mK @ 30°C (86°F)<40 mK @ 30°C (86°F): 24° lens
    <30 mK @ 30°C (86°F): 42° lens
    Frame rate 30 Hz
    Optical Data
    Included Lens Fixed lens, 24° (17 mm) 24° (17 mm) or 42° (10 mm)
    Field of view 24° × 18° 24° × 18° or 42° × 32°
    Focus Manual Continuous laser distance meter (LDM),
    one-shot LDM,
    one-shot contrast, manual
    Screening Mode
    Temperature range 15°C to 45°C (59°F to 113°F)
    Screening accuracy (drift) ±0.3°C (±0.5°F)
    Image Presentation
    Video out DisplayPort over USB Type-C
    Digital data streaming Simultaneous thermal and visible, USB Type-C
    Command and control On-camera screen, USB Type-C
    Display 4 in. touchscreen LCD, 640 × 480 pixels
    General
    Operating temperature range -15°C to 50°C (5°F to 122°F)
    Battery type Rechargeable Li ion battery
    Power Rechargeable Li ion battery, >2.5 hrs (typical use)
    External power AC adapter 90–260 V AC, 50/60 Hz
    Size (L x W x H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
    Weight 1 kg (2.2 lb)
    Tripod mounting UNC 1⁄4”-20



    Key Features

    • Handheld non-contact thermal camera
    • Impressive FLIR Screen-EST Mode
    • 'Button Mode' or 'Auto Mode' options
    • Compliant with social distancing protocols
    • Customise screening settings
    • Hands-free operation with Bluetooth connectivity
    • 320 x 240 IR resolution
    • Temperature range of 15˚C to 45˚C
    • Thermal sensitivity of <40 mK at 30˚C
    • Easy to use interface with pass/fail graphics
    • Visual positioning guides
    • Fixed 24˚ lens
    • Includes a FOV of 24˚ x 18˚
    • Automatic ambient drift compensator built-in
    • Audible alarms
    • Choose from 6 colour palettes
    • 1-4x digital zoom
    • Four images modes including infrared & visual
    • Featuring Patented FLIR MSX technology
    • Compatible with FLIR Screen-EST Desktop software
    • Quick installation time
    • Simple USB video connections
    • 8GB removable SD memory card
    • Integrated tripod mount
    • 2.5 hour battery powered lifespan
    • Option to connect to external power source
    • 2m drop tested
    • IP54 rated casing

    FLIR part number: E54-EST

  • Specification

    Overview

    • Display Technology: IPS
    • Field of view (FOV): 24° × 18°
    • Housing material: PCABS with TPE, magnesium
    • IR Resolution: 320 × 240
    • Object Temperature Range: 15°C to 45°C (59°F to 113°F)
    • Programmable Buttons: 1
    • Size (L x W x H): 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
    • Warranty: http://www.flir.com/warranty/
    • Weight: 1 kg (2.2 lbs)
    • FLIR Screen-EST Mode: Yes
    • Sampling Average in Screen-EST Mode: Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature
    • Accuracy [Drift] in Screen-EST Mode: ±0.3°C (±0.5°F)

    App

    • Palette: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

    Connections & Communications

    • Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi
    • Remote Control: Bluetooth®-enabled Remote Operation Button
    • Storage Media: Removable SD card (8 GB)
    • USB: USB Type-C: data transfer/video/power
    • USB - Standard: USB 2.0 High Speed
    • Video Out: DisplayPort over USB Type-C
    • WiFi: Peer to peer (ad hoc) or infrastructure (network)
    • Setup Commands: Local adaptation of units, language, date and time formats
    • Command and Control: On-camera screen, USB Type-C

    Environmental

    • Drop: Designed for 2 m (6.6 ft)
    • Emissivity Correction: Yes: variable from 0.01 to 1.0 or selected from materials list
    • Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
    • Radio Spectrum: ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2
    • Safety: EN/UL/CSA/PSE 60950-1
    • Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
    • Tripod Mounting: UNC ¼"-20
    • Shock & Vibration & Encapsulation: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1

    Imaging & Optical

    • Aspect ratio: 4:3
    • Camera f-number: 1.3
    • Colour: Black
    • Colour depth (bits): 24
    • Detector Type and Pitch: Uncooled microbolometer, 17 µm
    • Digital Data Streaming: Simultaneous thermal and visible, USB Type-C
    • Digital Zoom: 1-4x continuous
    • Focal Length: 17 mm (0.67 in)
    • Focus: Manual
    • Frame Rate: 30 Hz
    • Image Modes: Infrared, visual, MSX°, picture-in-picture
    • Lens: 24° (fixed)
    • Lens Identification: Automatic
    • Minimum Focus Distance: 0.15 m (0.49 ft)
    • Spatial resolution (IFOV): 1.75 mrad/pixel
    • Spectral Range: 7.5–14 µm
    • Viewfinder: No
    • MSX: Yes
    • UltraMax: No
    • Viewing Angle: 80°

    Measurement & Analysis

    • Languages: 21
    • Measurement Corrections: Yes
    • Reference Temperature: Yes
    • Automatic hot & cold detection: Auto-maximum/minimum markers within area

    Meter Data

    • Cover Glass Material: Dragontrail®
    • Display: 4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness

    Other

    • Stream Non_Radiometric Video: H.264 or MPEG4 over Wi-Fi, MJPEG over UVC and Wi-Fi
    • Stream Radiometric Video: Over UVC
    • Thermal Sensitivity-NETD [typical]: <40 mK @ 30°C (86°F)

    Power

    • Battery Life (Operating): >2.5 hours at 25°C (68°F) and typical use
    • Battery size (L x W x H): 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in)
    • Battery type: Rechargeable Li ion battery, >2.5 hrs (typical use)
    • Battery voltage: 3.6 V
    • Battery weight: 140 g (4.9 oz)
    • Charging Temperature: 0°C to 45°C (32°F to 113°F)
    • Charging Time (using two-bay charger): 2.5 hours to 90% capacity with charging status indicated by LEDs
    • External Power Operation: USB 2.0 A to USB Type-C with Power supply
    • Power Management: No
  • Supplied Accessories

    • FLIR E54-EST Advanced Thermal Camera with lens

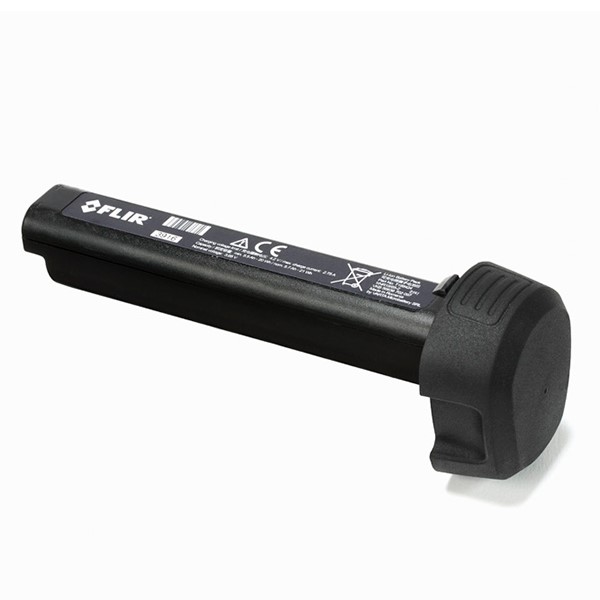

    • 2 x Battery
    • Battery Charger
    • Front protection
    • Carabiner hook
    • Straps (hand, wrist)
    • Hard transport case
    • Lanyards
    • Lens cap
    • Lens cleaning cloth
    • Power supplies
    • Torx T10 wrench
    • Screws
    • Cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C & USB Type-C to HDMI)
    • USB-C to USB Type-A with power supply included
    • Remote operation button
    • 8 GB SD card
    • Printed documentation
  • Product Documents

    Product Attachments

    View FileFLIR Exx-EST Datasheet    Size: (1.29 MB)
