FLIR E60bx Thermal Camera

  • 320 x 240 resolution provides 76,800 measurement spots for detailed thermal images.
  • Building specific alarms highlight issues with moisture and poor insulation.
  • Now with MSX Technology and Auto-Orientation
(Ex. VAT) £4,804.00 (Inc. VAT) £5,764.80

This product has now been discontinued and replaced by the FLIR E75 Thermal Imaging Camera.

Please select a free gift below.

  • Description

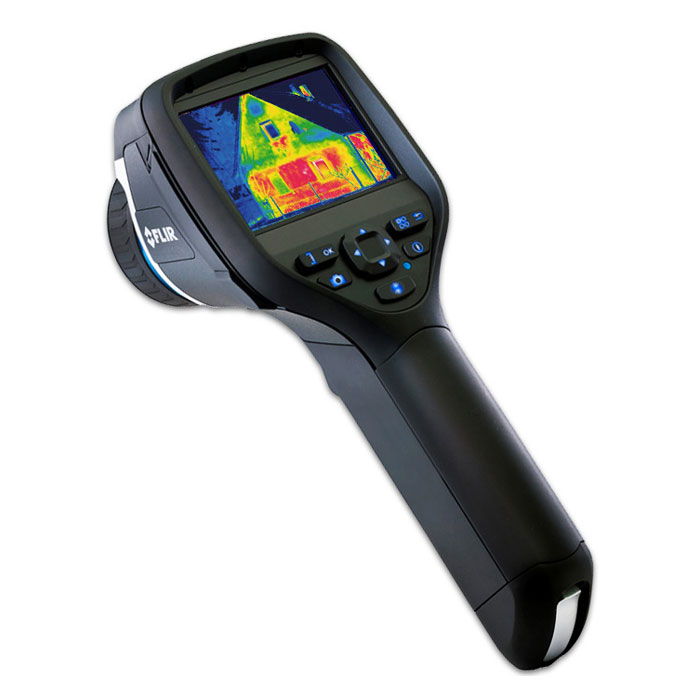

    FLIR E60bx E-Series Thermal Imaging Camera

    This product has now been discontinued and replaced by the FLIR E75 Thermal Imaging Camera.

    The FLIR E60bx Infrared Camera offers an impressive level of thermal image quality and temperature sensitivity, designed to bring point and shoot operation to building applications.

    With the FLIR E60bx thermal camera in hand, users can quickly perform building diagnostics and detect problems ranging from insulation defects and air leaks to thermal bridges and electrical faults. The E60bx camera has the precision to show exactly where energy losses and anomalies are so that they can be quickly dealt with.

    The new automatic screen orientation feature allows users to switch between landscape and portrait views while keeping temperature measurement overlays upright, particularly useful when rotating the camera to inspect taller objects.

    As with all cameras in the Ebx-series, the E60bx imager enables wireless transfer of infrared images to mobile devices for further investigation and analysis, significantly speeding up the thermal inspection process. In addition the FLIR E60bx thermal imaging camera has advanced measurement analysis tools including thermal fusion, picture in picture, MSX imaging, the ability to create instant reports directly on the touch screen and a digital camera so that temperature data and infrared images can be associated with the real-life target.

      320 x 240 pixel resolution
    The FLIR E60bx infrared camera image resolution is 320 x 240 pixels, allowing a range of valuable thermal information to be displayed to isolate faults.
      Wi-Fi Connectivity
    Transfer images and data wirelessly to mobile devices (iPad or iPhone for example) for fast sharing and analysis of thermal reports.
    Flir MeterLink technology allows data transfer from an Extech EX845 clampmeter and MO297 moisture meter onto the E60bx.
      Picture-in-Picture (PiP)
    For overlying the infrared image on the visual image while retaining all thermal data. This helps to spot dangerous temperature developments and is movable & resizable.
      FLIR Thermal Fusion
    The E60bx merges visual and infrared images to offer better analysis.
      Multi Spectral Dynamic Imaging (MSX)
    New feature that overlays a digital image onto thermal image and thus providing greater visual detail.
      Instant Reports
    Create instant reports directly in your thermal camera that are easy to copy to USB.
    New automatic screen orientation lets you switch between landscape and portrait while keeping temperature measurements upright no matter which way you hold the camera.
      Measurement Modes
    Including measurement spot, automatic hot/cold detection marker, isotherms and Delta T.
      High Sensitivity and Accuracy
    An impressive accuracy of ±2% and a thermal sensitivity of 0.045°C
      Dew Point & Insulation Alarms
    The Relative Humidity Alarm alerts you to the areas where there is a risk of condensation. An Insulation Alarm shows the insulation performance of the building.
      LCD Touchscreen
    A large 3.5" LCD touchscreen puts thermal analytics at your fingertips.
      Thumbnail image gallery
    An easy-to-access thumbnail image gallery helps you to quickly review and find your infrared images.
      Text and voice annotations to images
    Text comments can be made from a pre-defined list or using the touch screen. A Bluetooth headset can be used to make voice annotations.
      Laser Pointer and LED Light
    To associate hot/cold spot in IR image with physical target in the field, an LED light ensures image quality from built-in 3 megapixel digital camera regardless of light level.
      Long Life Battery
    Lithium-Ion battery (replaceable in the field) provides 4 hour continuous operation to keep up with a demanding on-site schedule.
      Copy to USB
    Transfer images and measurement data directly from the E60bx to a USB stick.
  • Specification

    • Field of view (FOV): 25° × 19°
    • IR resolution: 320 × 240 pixels
    • Image frequency: 60Hz
    • Thermal sensitivity/NETD: < 0.045°C
    • Temperature range: -20°C to 120°C
    • Accuracy: +/- 2°C or +/- 2% of reading
    • Adjustable Emissivity: 0.1 to 1.0
    • Zoom: 1 -4x continuous digital zoom
    • Digital Camera: 3.1 Mega pixels with LED light
    • File formats: JPEG
    • Display: 3.5 inch colour LCD touch screen
    • Battery type: Rechargeable Li Ion battery
    • Dimensions: 246 x 97 x 184mm
    • Weight: 825g
  • Supplied Accessories

    • Hard transport case
    • 2 x Li-ion rechargeable batteries
    • Dual battery charging bay with mains lead
    • Hand strap
    • Calibration certificate
    • FLIR Tools software
    • SD Memory Card
    • Lens cap
    • USB cable
    • Video cable
    • Power supply including multiplugs
    • Getting Started Guide
    • Warranty Extension or Registration Card
  • Product Questions

    Please Sign in or Create an account to post a question.

    There are no entries.

  • Reviews

    Review by Anonymous (Posted on 12/10/2012)
    We ordered this camera a couple of months ago primarily for use in building heat loss surveys, but also for electrical installation condition reports.

    It certainly satisifes both criteria, and the image quality is superb. Test-meter looked after us, as I initially hired the E60, and they refunded my entire 7 day hire cost against this purchase.

    I'd certainly recommend test-meter, we were very happy with the service and product knowledge - Thanks.
