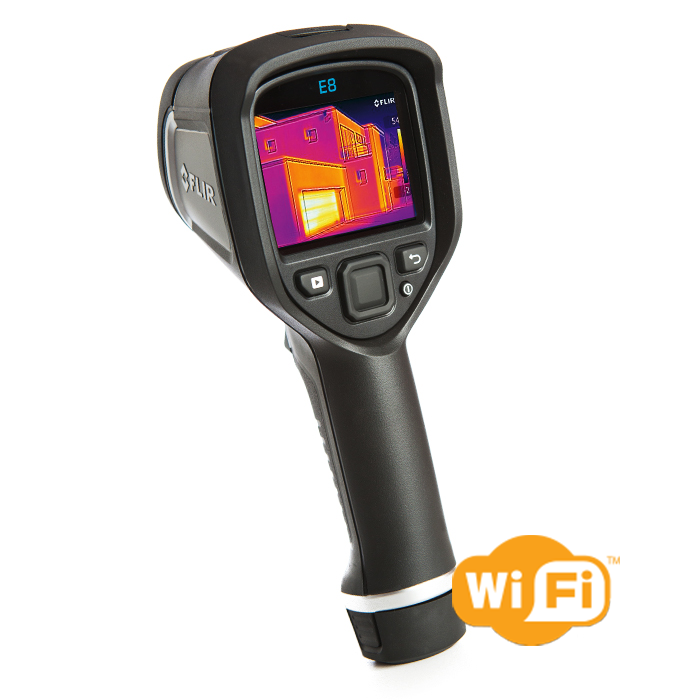

FLIR E8 Wifi Thermal Imaging Camera

Be the first to review this product

  • High thermal sensitivity with a temperature resolution of 320 x 240 pixel
  • Link the E8 up to your phone or tablet for instant reporting and synchronisation
  • MSX® image enhancement with integrated digital camera
(Ex. VAT) £2,400.00 (Inc. VAT) £2,880.00

Please select a free gift below.

Choose Your Free Gift (please tick below)
  • Description

    FLIR E8 Wifi Thermal Imaging Camera

    PROMOTION: FLIR Systems and Test-Meter.co.uk are running a promotional campaign for the E6/E8 thermal imaging cameras. If you order a FLIR E8 or E6 before the 30th September 2017 you will get one of the FLIR CM4x range Clamp Meters or a FLIR Accessory pack (spare battery, in-car charger and carry pouch) completely free of charge.

    The FLIR E8 Wifi Thermal Imaging Camera is a sophisticated instrument that stands out for its powerful thermal imaging capabilities and intuitive operation.

    High thermal resolution (320 x 240 pixel) provides an extremely clear thermal image, particularly as the high thermal sensitivity (60mK) detects temperature differences of just 0.06˚C These capabilities make the FLIR E8 Wifi useful in a range of industries and it can even be used for certain veterinary purposes. The large 45˚ field of view aids building inspections by allowing the user to capture a large area at once, thus saving time.

    Three measurement modes, a centre spot, a Min/Max box, isotherms and hot/cold spots all add greater detail and depth to inspections undertaken with the FLIR E8 Wifi.

    An integrated digital camera takes photographs to go alongside the thermograph files from the thermal sensor which enables easier analysis. Furthermore, the FLIR E8 Wifi also boasts MSX® image enhancement which uses the visible-light image to add detail and perspective to the thermal display.

    As the name suggests, the FLIR E8 Wifi can communicate files wirelessly to smart devices over a local wifi signal thus saving time and smoothing the inspection process. Once an image has been uploaded to a smartphone or tablet, it can be edited and put into a report using FLIR Tools Software for Windows and Macs.

    With excellent temperature measurement and advanced depiction of heat distribution in an object, the FLIR E8 Wifi constitutes an excellent tool for inspecting buildings and much more.

    FLIR part number: 63908-0805

      320 x 240 pixel resolution
    The FLIR E8 resolution is 320 x 240 pixels, allowing a range of valuable thermal information to be displayed to isolate faults.

      Temperature Range & Accuracy
    Detects 0.15°C temperature differences from -20 to 250°C with 2% accuracy.

      Built-in Digital Camera
    Visible light camera captures images for comparison and quicker fault location on thermal images.

      Multi Spectral Dynamic Imaging (MSX)
    New feature that overlays a digital image onto thermal image and thus providing greater visual detail.

      Wi-Fi Connectivity
    Connects camera to mobile devices so you can analyse stored images, and email findings quickly from the field. *Requires Free FLIR Tools Mobile App for Android and iPhone.

      Picture-in-Picture
    Overlays an infrared image onto a digital image to quickly locate faults and anomalies.

      Measurement Functions
    Spotmeter, area with max/min, hot & cold spot recognition with colour alarm.

      Thumbnail Gallery
    Easy access gallery allows users to quickly review captured infrared imagery.

      Reporting & Analysis Software Included
    FLIR Tools software is available for free download, allowing comprehensive inspection reports to be generated.
  • Specification

    • Field of view (FOV): 45° × 34°
    • IR resolution: 320 × 240 pixels
    • Image frequency: 9Hz
    • Thermal sensitivity/NETD: < 0.06°C
    • Temperature range: -20°C to 250°C
    • Accuracy: ±2°C or ±2% of reading
    • Adjustable Emissivity: 0.1 to 1.0
    • Digital Camera: 640 x 480 pixels
    • File formats: JPEG
    • Display: 3 inch colour LCD
    • Battery type: Rechargeable Li Ion battery
    • Dimensions: 244 x 95 x 140mm
    • Weight: 575g
  • Supplied Accessories

    • FLIR E8 Wifi Thermal Camera
    • Hard transport case
    • 2 x FLIR Li-ion rechargeable batteries
    • Battery charger station
    • USB cable
    • Power supply including multiplugs
    • Calibration Certificate
    • Getting Started Guide
    • Warranty Extension or Registration Card
