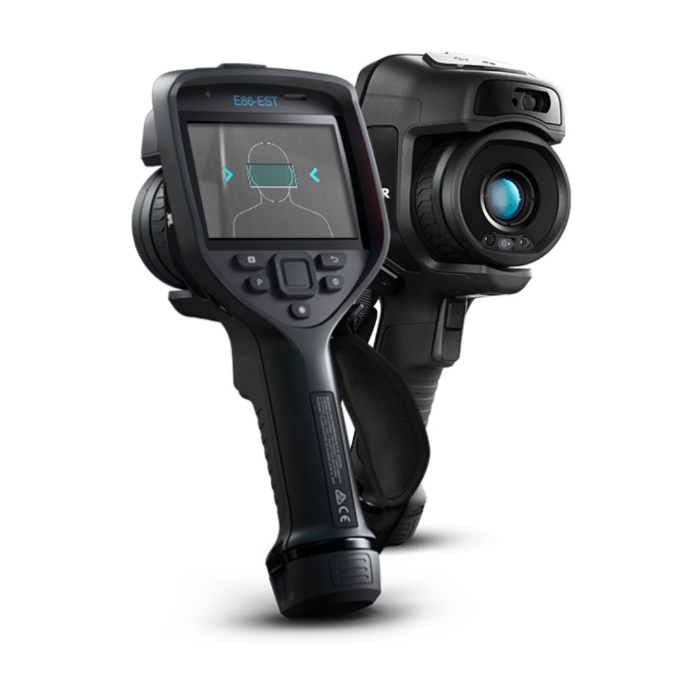

FLIR E86-EST Advanced Thermal Camera

Be the first to review this product

  • Non-contact screening camera for detecting elevated skin temperatures
  • Built-in FLIR Screen-EST Mode with 'Button' & 'Auto' user options
  • Features ambient temperature drift compensator and choice of lens
(Ex. VAT) £6,342.00 (Inc. VAT) £7,610.40

* Required Fields

Please select a free gift below.

  • Description

    FLIR E86-EST Advanced Thermal Camera

    The FLIR E86-EST Advanced Thermal Camera is a non-contact, handheld screening device built with an impressive on-camera FLIR Screen-EST Mode to be the initial line of defence against possible health risks. With a 464 x 348 IR pixel resolution, the E86-EST can determine the presence of an elevated skin temperature through accurate detection and rapid visualisation. These easy-to-understand measurements are captured with a thermal sensitivity of <40 mK or <30 mK at 30°C depending on lens and within a range of 15°C to 45°C. With the choice of either a 24˚ or 42˚ lens, the E86-EST's field of view (FOV) can be either 24° × 18° or 42° × 32°.

    FLIR Screen-EST Mode

    Featured with the FLIR E86-EST, this mode is a system designed to simplify elevated skin temperature readings and alleviate the burden on screening station operators. All temperatures are first compared against a sampled average value, should the result be higher than a user defined threshold an audible alarm will sound. This average value can be edited either automatically with each new screening in Auto mode, or via a Bluetooth connected remote control in 'Button Mode'.

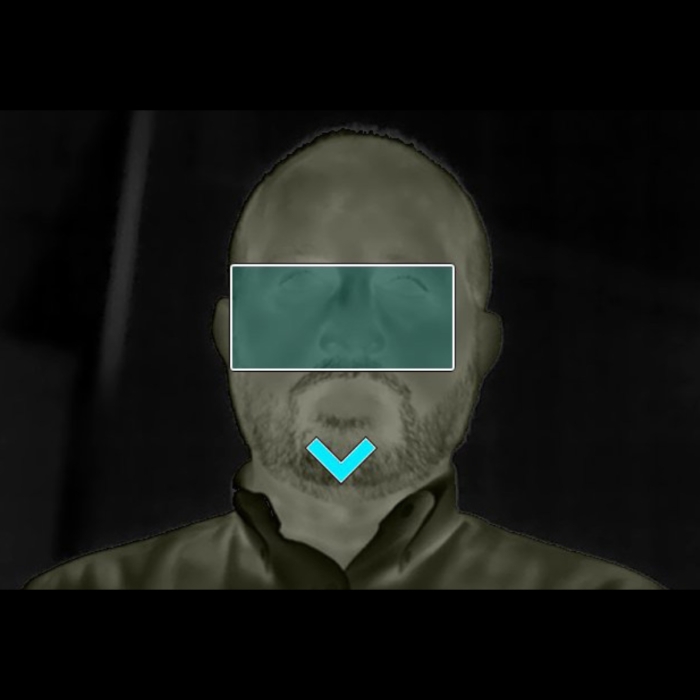

    FLIR Screen-EST Mode Auto Mode

    Auto Mode

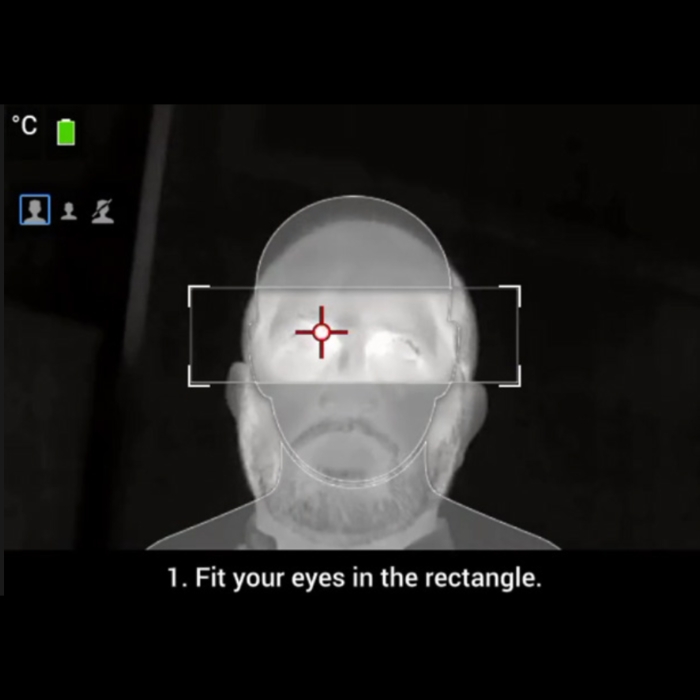

    FLIR Screen-EST Mode Button Mode

    Button Mode

    Intuitive and user-friendly, the FLIR Screen-EST Mode within the E86-EST provides useful positioning guides for targets and a simple pass/fail graphic for users. Privacy is a priority with the FLIR Screen-EST Mode as thermal images do not display identify facial features, nor does the mode store any images or sensitive personal data. Requiring zero personal contact to take a reading, all thermal temperature measurements are completely in line with social distancing protocols. If an individual tests above the designated threshold, they should then be evaluated using a medical device such as a thermometer.

    Accurate Screening & Easy Set-Up

    With a drift feature compensating for differences in ambient temperatures, the FLIR E54-EST ensures accuracy by automatically taking regular temperature readings. Complete with a continuous laser distance meter for focus, four image modes and a choice of 6 colour palettes the E86-EST also uses Patented FLIR MSX technology. Alongside smart analytics, high performance hardware and reliable calibration options for optimising the screening process this thermal camera is fully compatible with FLIR Screen-EST Desktop software.

    Commence screening swiftly with the FLIR E86-EST camera due to its exceptionally limited ramp-up time and easy video connectivity. Featuring an integrated tripod mount, bright touchscreen display and 1-4x digital zoom this instrument can be powered by both batteries or an external power source. The FLIR E86-EST battery life last for 2.5 hours and has the added benefit of being cable free. However, the external power option makes this camera an ideal option for establishing a permanent screening station. Other features include a removable 8GB SD card and a 2 meter drop tested, IP54 rated protective outer casing.

    FLIR Exx-EST Series

    For an affordable option with fixed 24˚ lens, view the E54-EST Advanced Thermal Camera from FLIR is also available.

    Imaging DataE54-ESTE86-EST
    Infrared resolution 320 × 240 pixels 464 × 348 pixels
    Thermal sensitivity/NETD<40 mK @ 30°C (86°F)<40 mK @ 30°C (86°F): 24° lens
    <30 mK @ 30°C (86°F): 42° lens
    Frame rate 30 Hz
    Optical Data
    Included Lens Fixed lens, 24° (17 mm) 24° (17 mm) or 42° (10 mm)
    Field of view 24° × 18° 24° × 18° or 42° × 32°
    Focus Manual Continuous laser distance meter (LDM),
    one-shot LDM,
    one-shot contrast, manual
    Screening Mode
    Temperature range 15°C to 45°C (59°F to 113°F)
    Screening accuracy (drift) ±0.3°C (±0.5°F)
    Image Presentation
    Video out DisplayPort over USB Type-C
    Digital data streaming Simultaneous thermal and visible, USB Type-C
    Command and control On-camera screen, USB Type-C
    Display 4 in. touchscreen LCD, 640 × 480 pixels
    General
    Operating temperature range -15°C to 50°C (5°F to 122°F)
    Battery type Rechargeable Li ion battery
    Power Rechargeable Li ion battery, >2.5 hrs (typical use)
    External power AC adapter 90–260 V AC, 50/60 Hz
    Size (L x W x H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
    Weight 1 kg (2.2 lb)
    Tripod mounting UNC 1⁄4”-20



    Key Features

    • Non-contact handheld thermal camera
    • Highly useful FLIR Screen-EST Mode
    • 'Button Mode' or 'Auto Mode' options
    • Compliant with social distancing protocols
    • Personalise screening settings
    • Choice of 24˚ or 42˚ lens
    • Hands-free operation with Bluetooth connectivity
    • 464 × 348 IR resolution
    • Temperature range of 15˚C to 45˚C
    • Thermal sensitivity of <40 mK at 30˚C or <30 mK @ 30°C
    • User-friendly interface with pass/fail graphics
    • Visual positioning guides
    • 4 Focus modes including continuous laser distance meter
    • Includes a FOV of 24˚ x 18˚ or 42° × 32°
    • Automatic ambient drift compensator incorporated
    • Audible alarms
    • Select from 6 colour palettes
    • 1-4x digital zoom
    • Four images modes including infrared & visual
    • Patented FLIR MSX technology featured
    • Compatible with FLIR Screen-EST Desktop software
    • Swift installation time
    • USB video connections
    • 8GB removable SD memory card
    • Integrated tripod mount
    • 2.5 hour battery powered lifespan
    • Option to connect to external power source
    • 2m drop tested
    • IP54 rated casing

    FLIR part number: E86-EST

  • Specification

    Overview

    • Display Technology: IPS
    • Field of view (FOV): 24° × 18° or 42° × 32°
    • Housing material: PCABS with TPE, magnesium
    • IR Resolution: 464 × 348
    • Object Temperature Range: 15°C to 45°C (59°F to 113°F)
    • Programmable Buttons: 1
    • Size (L x W x H): 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
    • Warranty: http://www.flir.com/warranty/
    • Weight: 1 kg (2.2 lbs)
    • FLIR Screen-EST Mode: Yes
    • Sampling Average in Screen-EST Mode: Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature
    • Accuracy [Drift] in Screen-EST Mode: ±0.3°C (±0.5°F)

    App

    • Palette: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

    Connections & Communications

    • Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi
    • Remote Control: Bluetooth®-enabled Remote Operation Button
    • Storage Media: Removable SD card (8 GB)
    • USB: USB Type-C: data transfer/video/power
    • USB - Standard: USB 2.0 High Speed
    • Video Out: DisplayPort over USB Type-C
    • WiFi: Peer to peer (ad hoc) or infrastructure (network)
    • Setup Commands: Local adaptation of units, language, date and time formats
    • Command and Control: On-camera screen, USB Type-C

    Environmental

    • Drop: Designed for 2 m (6.6 ft)
    • Emissivity Correction: Yes: variable from 0.01 to 1.0 or selected from materials list
    • Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
    • Radio Spectrum: ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2
    • Safety: EN/UL/CSA/PSE 60950-1
    • Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
    • Tripod Mounting: UNC ¼"-20
    • Shock & Vibration & Encapsulation: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1

    Imaging & Optical

    • Aspect ratio: 4:3
    • Camera f-number: 1.3
    • Colour: Black
    • Colour depth (bits): 24
    • Detector Type and Pitch: Uncooled microbolometer, 17 µm
    • Digital Data Streaming: Simultaneous thermal and visible, USB Type-C
    • Digital Zoom: 1-4x continuous
    • Focal Length: 17 mm (0.67 in)
    • Focus: Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast & manual
    • Frame Rate: 30 Hz
    • Image Modes: Infrared, visual, MSX°, picture-in-picture
    • Lens: 24° or 42˚
    • Lens Identification: Automatic
    • Minimum Focus Distance: 0.15 m (0.49 ft)
    • Spatial resolution (IFOV): 0.90 mrad/pixel or 1.66 mrad/pixel
    • Spectral Range: 7.5–14 µm
    • Viewfinder: No
    • MSX: Yes
    • UltraMax: Yes
    • Viewing Angle: 80°

    Measurement & Analysis

    • Languages: 21
    • Measurement Corrections: Yes
    • Reference Temperature: Yes
    • Automatic hot & cold detection: Auto-maximum/minimum markers within area

    Meter Data

    • Cover Glass Material: Dragontrail®
    • Display: 4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness

    Other

    • Stream Non_Radiometric Video: H.264 or MPEG4 over Wi-Fi, MJPEG over UVC and Wi-Fi
    • Stream Radiometric Video: Over UVC
    • Thermal Sensitivity-NETD [typical]: <40 mK @ 30°C (86°F) or <30 mK @ 30°C (86°F)

    Power

    • Battery Life (Operating): >2.5 hours at 25°C (68°F) and typical use
    • Battery size (L x W x H): 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in)
    • Battery type: Rechargeable Li ion battery, >2.5 hrs (typical use)
    • Battery voltage: 3.6 V
    • Battery weight: 140 g (4.9 oz)
    • Charging Temperature: 0°C to 45°C (32°F to 113°F)
    • Charging Time (using two-bay charger): 2.5 hours to 90% capacity with charging status indicated by LEDs
    • External Power Operation: USB 2.0 A to USB Type-C with Power supply
    • Power Management: No
  • Supplied Accessories

    • FLIR E86-EST Advanced Thermal Camera with choice of lens
    • 2 x Battery
    • Battery Charger
    • Front protection
    • Carabiner hook
    • Straps (hand, wrist)
    • Hard transport case
    • Lanyards
    • Lens cap
    • Lens cleaning cloth
    • Power supplies
    • Torx T10 wrench
    • Screws
    • Cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C & USB Type-C to HDMI)
    • USB-C to USB Type-A with power supply included
    • Remote operation button
    • 8 GB SD card
    • Printed documentation
  • Product Documents

    Product Attachments

    View FileFLIR Exx-EST Datasheet    Size: (1.29 MB)
