FLIR T420bx Thermal Camera

SKU: FLIRT420BX
The new FLIR thermal camera designed for thermal inspections of buildings. Quickly detect moisture & poor insulation using high quality thermography.
More Info
Discontinued

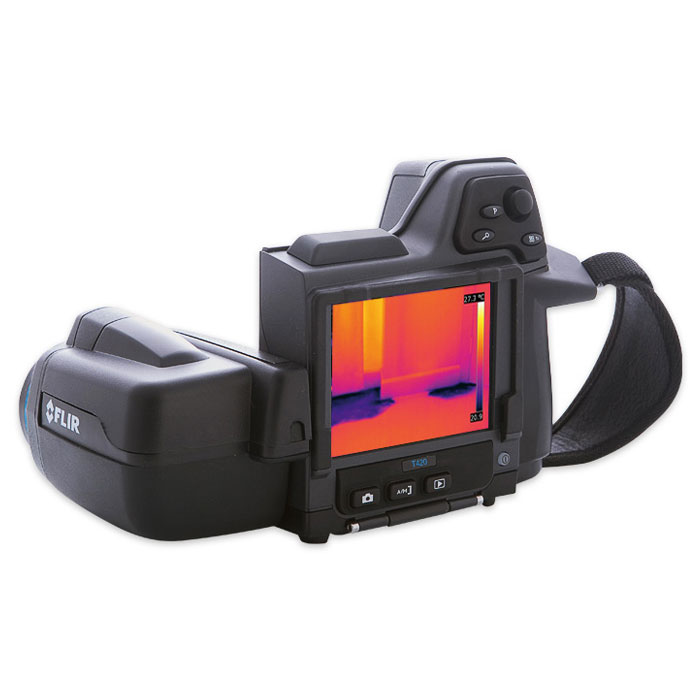

FLIR T420bx Thermal Imaging Camera

This product has now been discontinued. The nearest current equivalent is the FLIR T530 Thermal Imaging Camera.

The FLIR T420bx Thermal Camera is the entry level model in the new T400bx series, offering energy efficiency managers and professional building inspectors with an advanced thermal imaging camera suitable for extensive use.

Offering 320 x 240 resolution, a temperature range up to 350°C and thermal sensitivity of <45mK the new FLIR T420bx thermal imaging camera provides great performance and high thermal image quality for hassle free building inspections, allowing damp, condensation and poor insulation to be quickly located.

The FLIR T420bx now offers FLIR MSX Technology, making it easier to find and identify issues. FLIR MSX Multi-Spectral Dynamic Imaging extracts high-contrast highlights from the camera’s image and uses FLIRs patented technology to superimpose the enhanced details on the infrared image, providing enhanced clarity on thermal imagery, even incorporating key details such as numbers, labels and structural features.

Comprehensive thermal investigations and energy assessments can be effortlessly performed using the new FLIR T420bx. Once a thermal image has been captured the touch screen allows sketch annotations and problem areas to be located directly on the image. With built-in Wi-Fi, thermal images can then be wirelessly transferred to mobile devices for further analysis in inspection reports and for quick distribution of findings.

The FLIR T420bx Thermal Imaging Camera has excellent ergonomics and intuitive operation making it a user-friendly camera for both beginner and more advanced users. Complete with extensive communication options and high thermal imaging capabilities, the T420bx thermal camera enables accurate inspections with rapid image processing and reporting functionality.

  320 x 240 Image Resolution
High thermal resolution to provide detailed infrared images for quality inspections.

  High Thermal Sensitivity & Measurement Accuracy
The T420bx detects 0.045°C temperature differences on its -20 to 350°C range with 2% accuracy.

  Touch Screen
A 3.5” touch screen allows analysis tools and sketches to be made directly onto infrared images.

  Wi-Fi
Transfer thermal images wirelessly to an Apple iPhone or iPad for further analysis.

  MeterLink Technology
Transfer data from compatable FLIR or Extech products into the T420bx and add the values onto infrared images.

  Picture-in-Picture
Overlay infrared images onto visible light images to quickly locate faults and anomalies.

  Thermal Fusion
Merge visual and infrared images for more accurate thermal analysis and inspection reports.

  Text and Voice Annotations
Insert text comments from a pre-defined list and voice annotations using the supplied headset.

  Built-in Digital Camera
An integrated 3.1 Megapixel visual camera with 4x zoom enables crisp digital images to be taken.

  MPEG-4 Video Recording
Create visual and infrared video files, ideal for capturing changes over a period of time.

  Instant Reports
Create thermal reports directly in the T420bx camera and quickly copy to USB.

  Humidity & Insulation Alarms
Measurement tools specific to building inspections alert to condensation & insulation issues.

What's In The Box?

  • FLIR T420bx Thermal Camera
  • Hard transport case
  • 2 x Li-ion rechargeable batteries
  • Battery Charger
  • Bluetooth USB Micro Adaptor
  • Calibration verification card
  • FLIR Tools software
  • SD Memory Card
  • Lens cap
  • Sunshield
  • Headset
  • USB cable
  • Video cable
  • Power supply including multiplugs
  • Getting Started Guide
  • Warranty Extension or Registration Card
Specification
  • Field of view (FOV): 25° × 19°
  • IR resolution: 320 × 240 pixels
  • Image frequency: 60Hz
  • Thermal sensitivity/NETD: < 0.045°C
  • Temperature range: -20°C to 350°C
  • Accuracy: +/- 2°C or +/- 2% of reading
  • Adjustable Emissivity: 0.1 to 1.0
  • Zoom: 1 -4x continuous digital zoom
  • Digital Camera: 3.1 Mega pixels with LED light
  • File formats: JPEG
  • Display: 3.5 inch colour LCD touch screen
  • Battery type: Rechargeable Li Ion battery
  • Dimensions: 106 x 201 x 125mm
  • Weight: 880g
