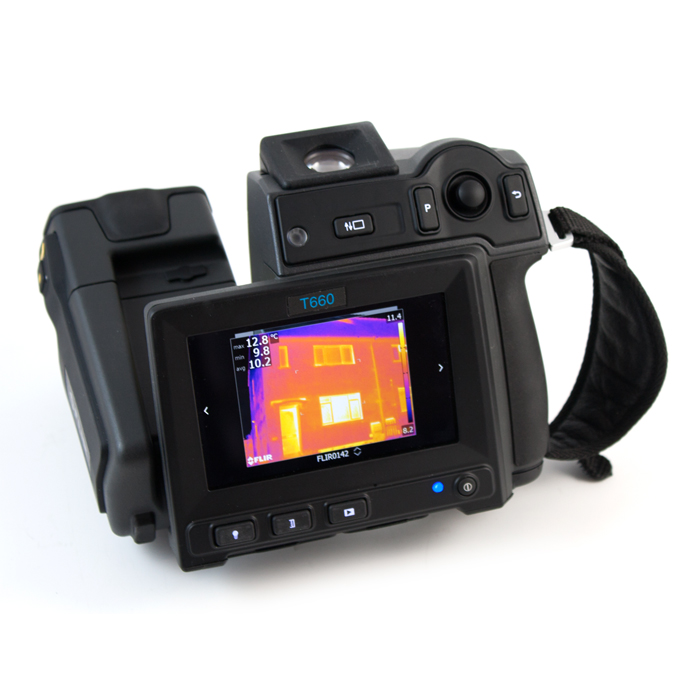

FLIR T660 Thermal Imaging Camera

SKU: FLIRT660
  • FLIR's top of the range Thermal Camera with 640x480 resolution
  • Incorporates FLIR's unique MSX® and UltraMAX™ technology
  • Incredible thermal accuracy at +/- 1% with radiometric video recording
More Info
Discontinued

FLIR T660 Thermal Imaging Camera

This product is discontinued, it has been replaced by the FLIR T860.

The FLIR T660 Thermal Imager represents the absolute pinnacle of the thermal imaging camera market providing the highest possible performance and latest technology available. Providing the user with excellent camera ergonomics and an easy-to-use interface The T660 captures superior thermal images with a 640x480 thermal resolution (the highest resolution available on the commercial market) and provides incredibly accurate temperature data with an accuracy of +/- 1% or 1°C (within a limited temperature range).

The FLIR T660 benefits further from FLIR's innovative MSX® Technology which underlays the digital image underneath the thermal image producing more visual detail and definition on the image (see video for more information). The T660 also supports UltraMax™ which enables a substantial enhancement of the thermal images after exporting into FLIR Thermal Studio Suite software with four times as many pixels and 50% less noise.

The FLIR T660 has a very wide temperature range dectetion thermal radiation down to -40°C and up to 2000°C and is thermally sensitive down to 20mk (0.02°C).

The T660 is the ideal choice also for thermal video recording with a unique feature allowing Radiometric video recording (CSQ) to memory card. This allows temperature data to be added post-transfer onto video files using FLIR Thermal Studio Suite software. Normally video recording tends to be non-radiometric.

For more information regarding your application and requirements or to arrange an on-site demonstration of the FLIR T660 Thermal Camera please call 0113 248 9966 and speak to one of our in-house trained thermographers.

FLIR T600 Series Comparison

  T600 T620 T640 T660
Thermal Resolution 480x360 640x480
Thermal Sensitivity <0.04°C @ 30°C <0.03°C @ 30°C <0.02°C @ 30°C
Accuracy +/-2°C or +/-2% of reading, whichever is greater, at 25°C nominal +/-1°C or +/-1% of reading for limited temperature range; ±2°C or 2%, whichever is greater, at 25°C nominal
Temperature Range -40°C to 650°C -40°C to 650°C
Optional: up to 2000°C
-40°C to 2000°C
Measurement Modes 6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets
UltraMax
MSX Technology
Radiometric Recording       CSQ to memory card
User Presets
Frame Rate 30Hz
Lens Choices 25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus Manual and Automatic Manual, Automatic and Continuous
Display Size 4.3”
Touchscreen Capacitive touch screen
Viewfinder
Built-in Visual Camera 5MP
Digital Zoom 4x 8x
Compass
GPS
Sketch n IR/Visual Image Draw or add predefined stamps

FLIR T660 Thermal Imaging Camera

The FLIR T660 Thermal Imager represents the absolute pinnacle of the thermal imaging camera market providing the highest possible performance and latest technology available. Providing the user with excellent camera ergonomics and an easy-to-use interface The T660 captures superior thermal images with a 640x480 thermal resolution (the highest resolution available on the commercial market) and provides incredibly accurate temperature data with an accuracy of +/- 1% or 1°C (within a limited temperature range).

The FLIR T660 benefits further from FLIR's innovative MSX® Technology which underlays the digital image underneath the thermal image producing more visual detail and definition on the image (see video for more information). The T660 also supports UltraMax™ which enables a substantial enhancement of the thermal images after exporting into FLIR Tools software with four times as many pixels and 50% less noise.

The FLIR T660 has a very wide temperature range dectetion thermal radiation down to -40°C and up to 2000°C and is thermally sensitive down to 20mk (0.02°C).

The T660 is the ideal choice also for thermal video recording with a unique feature allowing Radiometric video recording (CSQ) to memory card. This allows temperature data to be added post-transfer onto video files using FLIR Tools Plus software. Normally video recording tends to be non-radiometric.

For more information regarding your application and requirements or to arrange an on-site demonstration of the FLIR T660 Thermal Camera please call 0113 248 9966 and speak to one of our in-house trained thermographers.

Quick overview of FLIR T660 Thermal Imaging Camera:

  Thermal Resolution
640x480 pixels (307,200 temperature measurements - x4 using Ultramax™).

  Thermal Sensitivity
<0.02°C @ 30°C

  Accuracy
+/- 1% or 1°C whichever is greater - Truly market defining!

  Temperature Range
-40°C to 2000°C

  UltraMax™
Up scales your thermal image within FLIR software by x4 increasing definition and reducing noise. Allows zoom on smaller targets for more accurate measurements.

  MSX®
Patented multi-spectral dynamic imaging provides digital image detail from the visible light camera onto the thermal image. This makes it so much easier to identify the image visually and thus improving work efficiency.

  Radiometric Video Recording
Video containing temperature data can be exported to memory card for further analysis within FLIR Tools PLUS software.

  Auto Orientation
Automatically orients onscreen data to portrait or landscape view.

  Rotatable Lens
Scan targets overhead, under objects, and from tough angles effortlessly with the help of a lens system that lets you point 120° up or down while keeping the display in easy view.

  User Presets
Pre-programmed user pre-sets makes it quicker and easier to obtain the measurements required.

  Intuitive Touch screen and Interface
Tap the 4.3" Touch screen or use buttons to quickly access temperature and measurement tools, parameters, image modes etc.

  Built-in Digital Camera
5MP digital camera inbuilt. Simultaneously captures a digital image when a thermal image is captured, pairing the two up in the camera
thumbnail image gallery and within FLIR Tools software. Also enables Picture-in-Picture, Thermal Fusion and MSX®.

  Meterlink®
Transmits FLIR Test and Measurement data onto the camera via Bluetooth. This further validates your thermal image by adding additional quantified information.

  Additional Lenses Available
Interchangeable telephoto, wide angle, and close-up optics.

  Laser Pointer and LED Light Inbuilt
Identify your view finder location using the inbuilt laser pointer and illuminate dimly lit areas using the bright inbuilt LED lights.

  Annotations
Add voice or text comments to images or use the touch screen to sketch.

  Digital Zoom
x8 Digital Zoom function inbuilt.

  Wi-Fi Connectivity
Connects camera to mobile devices so you can stream live thermal video, take remote control, analyze stored images, and email findings quickly from the field. *Requires Free FLIR Tools Mobile App for Android and iPhone.

  Compass & GPS
Embeds pointing direction and geo-location onto thermal image



FLIR T600 Series Comparison

 T600T620T640T660
Thermal Resolution 480x360 640x480
Thermal Sensitivity <0.04°C @ 30°C <0.03°C @ 30°C <0.02°C @ 30°C
Accuracy +/-2°C or +/-2% of reading, whichever is greater, at 25°C nominal +/-1°C or +/-1% of reading for limited temperature range; ±2°C or 2%, whichever is greater, at 25°C nominal
Temperature Range -40°C to 650°C -40°C to 650°C
Optional: up to 2000°C
-40°C to 2000°C
Measurement Modes 6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets
UltraMax
MSX Technology
Radiometric Recording       CSQ to memory card
User Presets
Frame Rate 30Hz
Lens Choices 25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus Manual and Automatic Manual, Automatic and Continuous
Display Size 4.3”
Touchscreen Capacitive touch screen
Viewfinder
Built-in Visual Camera 5MP
Digital Zoom 4x 8x
Compass
GPS
Sketch n IR/Visual Image Draw or add predefined stamps

What's In The Box?

  • FLIR T660 Infrared camera
  • 15, 25 or 45 Degree Lens (Selectable above)
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • FLIR calibration card
  • User documentation CD-ROM
  • Printed documentation
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Large eyecap
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Tripod adapter
  • USB cable, Std A to Mini-B
Specification

Imaging and optical data

  • IR resolution: 640 × 480 pixels
  • UltraMax: Yes
  • Thermal sensitivity/NETD:  <20 mK @ +30°C (+86°F)
  • Field of view (FOV): 25° × 19°
  • Minimum focus distance: 0.25 m (0.82 ft.)
  • Focal length: 25 mm
  • Spatial resolution (IFOV): 0.68 mrad
  • Image frequency: 30 Hz
  • Focus: Continuous, Automatic (one shot) or manual
  • Digital zoom: 2×, 4× and 8×
  • Focal plane array (FPA): Uncooled microbolometer Spectral range 7.5–14 μm
  • Detector Pitch: 17μm

Image presentation

  • Display: Touch screen, 4.3 in. LCD, 800x480 pixels
  • Auto orientation: Automatic landscape or portrait
  • Automatic image adjustment: Continuous, histogram based
  • Manual image adjustment: Linear based; Possible to adjust level/span/max/min
  • Image presentation modes: Thermal MSX, Picture in Picture Resizable and movable, IR area on visual image

Measurement

  • Object temperature range • –40°C to +2000°C (in three ranges)
  • Accuracy ±1°C (±1.8°F) or ±1% of reading for limited temperature range,

Measurement analysis

  • Spotmeter: 10
  • Area: 5 areas (boxes or circles) with max./min./average
  • Profile: 1 line profile with max/min temp.
  • Automatic hot/cold detection: Auto hot or cold spotmeter markers within area
  • User presets The user can select and combine measurements from any number of spots/boxes/circles/profiles/ delta
  • Difference temperature: Delta temperature between measurement functions or reference temperature
  • Emissivity correction: Variable from 0.01 to 1.0 or selected from materials list
  • Measurement presets: No measurement, Center spot, Hot spot, cold spot, user preset 1, user preset 2
  • Reference temperature: Manually set using difference temperature
  • Atmospheric transmission correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity
  • Optics transmission correction: Automatic, based on signals from internal sensors
  • Colour palettes: Arctic, Gray, Iron, Lava, Rainbow and Rainbow HC
  • Measurement corrections: Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation

Alarm

  • Colour Alarm (isotherm): Above/below/interval
  • Screening: Difference temperature alarm, audible

Set-up

  • Set-up commands: Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, Compass, Bluetooth, Language,Time & units, Camera information

Service functions

  • Camera software update: Use PC software FLIR Tools

Storage of images

  • Image storage: Standard JPEG, including digital photo and measurement data, on memory card
  • Image storage mode: Simultaneous storage of thermal and digital photo in same JPEG. Optional to store digital photo as separate JPEG.
  • Time lapse: 15 seconds to 24 hours

Image annotations (in still images)

  • Voice: 60 seconds (via Bluetooth) stored with the image
  • Text: Add table. Select between predefined templates or create your own in FLIR Tools
  • Image description: Add short note (stored in JPEG exif tag)
  • Sketch: Draw on thermal/digital photo or add predefined stamps
  • METERLiNK: Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
  • Report generation: Instant Report (*.pdf file) in camera including IR and visual images + Separate PC software with extensive report generation

Geographic Information System

Compass: Camera direction automatically added to every still image

Video recording in camera

  • Radiometric IR-video recording: CSQ to memory card
  • Non-radiometric IR-video recording: MPEG-4 to memory card
  • Visual video recording: MPEG-4 to memory card

Video streaming

  • Radiometric IR-video streaming: Full dynamic to PC using USB or to mobile devices using Wi-Fi.
  • Non-radiometric IR-video streaming: MPEG-4 using Wi-Fi. Uncompressed colorized video using USB
  • Visual video streaming: MPEG-4 using Wi-Fi. Uncompressed colorized video using USB

Digital camera

  • Built-in digital camera: 5 Mpixel with LED light (photo as separate image)
  • Digital camera, focus: Fixed focus
  • Digital camera, FOV: Adapts to the IR lens
  • Built-in digital lens data: FOV 53° × 41°
  • Digital camera, aspect ratio: 4:3

Laser pointer

  • Laser: Activated by dedicated button
  • Laser alignment: Position is automatic displayed on the IR image
  • Laser classification: Class 2
  • Laser type: Semiconductor AlGaInP diode laser
  • Laser power :1 mW
  • Laser wavelength: 635 nm (red)

Data communication interfaces

  • Interfaces USB-mini, USB-A, Bluetooth, Wi-Fi, composite video
  • METERLiNK/Bluetooth: Communication with headset and external sensors
  • Wi-Fi: Peer to peer (adhoc) or infrastructure (network)
  • SD Card: One card slot for removable SD memory cards

USB

  • USB: USB-A: Connect external USB device + USB Mini-B: Data transfer to and from PC / Uncompressed colorized video
  • USB, standard: USB Mini-B: 2.0

Composite video

  • Video out: Composite
  • Video, standard: CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC)
  • Video, connector type: 4-pole 3.5 mm jack

Radio

  • Wi-Fi: Standard: 802.11 b/g + Frequency range: 2412–2462 MHz + Max output power: 15 dBm
  • METERLiNK/Bluetooth: Frequency range: 2402–2480 MHz
  • Antenna: Internal

Power system

  • Battery type: Rechargeable Li Ion battery
  • Battery voltage: 3.7 V
  • Battery capacity: 4.4 Ah, at +20°C to +25°C (+68°F to +77°F)
  • Battery operating time: Approx. 4 hours at +25°C (+77°F) ambient temperature and typical use
  • Charging system: In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
  • Charging time: 4 h to 90% capacity, charging status indicated by LED's
  • Charging temperature: 0°C to +45°C (+32°F to +113°F)
  • Power management: Automatic shutdown and sleep mode (user selectable)
  • AC operation: AC adapter, 90–260 VAC input, 12 V output to camera
  • Start-up time from sleep mode: Instant on

Environmental data

  • Operating temperature range –15°C to +50°C (+5°F to +122°F)
  • Storage temperature range –40°C to +70°C (–40°F to +158°F)
  • Humidity (operating and storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
  • EMC: ETSI EN 301 489-1 (radio) + ETSI EN 301 489-17 + EN 61000-6-2 (Immunity) + EN 61000-6-3 (Emission) + FCC 47 CFR Part 15 B (Emission) + ICES-003
  • Radio spectrum: ETSI EN 300 328 + FCC Part 15.247 + RSS-210
  • Magnetic fields: EN 61 000-4-8, Test level 5 for continous field (Severe industrial environment)
  • Encapsulation: IP 54 (IEC 60529)
  • Shock: 25 g (IEC 60068-2-27)
  • Vibration: 2 g (IEC 60068-2-6)
  • Safety: EN/UL/CSA/PSE 60950-1

Physical data

  • Camera weight, incl. battery: 1.3 kg
  • Camera size: (L × W × H) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.), with built-in lens pointing forward
  • Tripod mounting: UNC ¼"-20 (adapter needed)
  • Material: Polycarbonate + acrylonitrile butadiene styrene (PC-ABS) + Thixomold magnesium + Thermoplastic elastomer (TPE)
  • Color: Magnesium
