FLIR T840 Thermal Imaging Camera
Practical Thermal Imaging

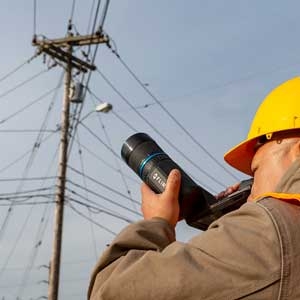

The FLIR T840 Thermal Imaging Camera is an extremely sophisticated thermal imaging camera designed to be used by professional thermographers across a range of industries including power distribution and heavy plant production. It has an infrared sensor with a resolution of 464 x 348 pixels and three object temperature measurement ranges: -20˚C to 120˚C, 0˚C to 650˚C, and 300˚C to 1500˚C. Measurements are accurate to ±2˚C or ±2% and excellent thermal sensitivity of 30mK means that temperature differences of just 0.03˚C can be shown on screen.
The FLIR T840 is available with four different lenses: 14˚, 24˚, 42˚ and Dual Field of View (DFOV). Each lens has different fields of view and focus distances. Focusing is done using a laser-guided continuous focus system and it is also possible to get a laser distance reading and use a manual focus system. Automatic area calculation in m2 and ft2 is also available. The 180˚ rotating optical block is particularly useful for observing all around the user during inspections and the imager has an integrated viewfinder.
FlexView Dual FOV 14 - 24˚ Lens
The FlexView Dual FOV 14 - 24˚ Lens is a single lens that offers both 14˚ and 24˚ FOVs, replacing the need to change between two physical camera lenses to achieve each FOV. The FlexiView lens allows for FOV switching with the push of a button and a 1-second FOV toggle time, providing an efficient inspection experience and reducing the physical load for those in the field. This innovative lens retains the sleek design of other FLIR lenses, with an increased length of just 6mm. Performance in both FOVs is retained, offering full radiometric performance and image quality.
High Quality Thermal Picture

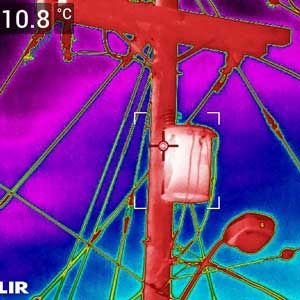

Thermal images are shown on the FLIR T840’s vibrant 4” colour display and a range of palettes are available including iron, greyscale, rainbow, arctic, and lava. A smooth picture in real-time and the saved thermal video is provided by the 30Hz image refresh rate and the high-definition sensor enables 1-6x continuous digital zoom. The imager has various measurement functions such as centre spot, hot spot, cold spot and twin spot surface temperature readings.
An integrated 5MP digital camera takes visual images and video to sit alongside thermal videos and images in the large 8GB SD-card memory. It also enables a wide range of additional display functions on the FLIR T840 such as MSX® image enhancement, picture-in-picture, and thermal blending. One of the standout features of the thermal camera is time lapse which allows the user to monitor an installation over 24 hours to see intermittent faults.
Advanced Analysis Features
The FLIR T840 has multiple analytical features and can store full radiometric thermal video and paired thermal images with visual images. Onboard GPS automatically geotags saved files and it is possible to add 60-second voice observations to video and still images to record observations during inspections. METERLINK® Bluetooth technology allows the camera to combine with FLIR test and measurement equipment to add quantitative data to thermographs whilst USB and Wi-Fi technology allows transfers to PCs or smartphones.
Once files are transferred to a PC, the FLIR T840 is compatible with FLIR Ultramax which can multiply the pixel count by four to vastly increase thermograph clarity. Video streaming is possible over Wi-Fi or a video out cable. The camera is covered by FLIR’s 2-10 warranty with a decade’s guarantee on the sensor. It comes supplied with batteries, a battery charger, a hard transport case, lanyards, a front lens cap, power supplies, an 8GB SD card and USB cables.
Thermal Imaging for Detecting Elevated Body Temperature
This camera includes an EBT screening mode.
While unable to detect a virus or infection, thermal imaging cameras can be used to detect Elevated Body Temperature. FLIR thermal cameras have been used in public spaces—such as airports, train terminals, businesses, factories, and concerts—as an effective tool to measure skin surface temperature and identify individuals with Elevated Body Temperature (EBT).
If the temperature of the skin in key areas (especially the corner of the eye and forehead) is above average temperature, then the individual may be selected for additional screening. Identifying individuals with EBT, who should then be further screened with virus-specific diagnostic tests, can help reduce or dramatically slow the spread of viruses and infections.
Using thermal cameras, officials can be more discrete, efficient, and effective in identifying individuals who need further screening with virus-specific tests. A variety of institutions, including transportation agencies, businesses, factories, and first responders are using thermal screening as an EBT detection method and as part of employee health and screening (EH&S).
Airports in particular are actively employing FLIR thermal cameras as part of their screening measures for passengers and flight crews. The screening procedures implemented at airports and in other public places are just the first step when it comes to detecting a possible infection: it’s a quick way to screen for anyone who might be sick, and must always be followed up with further screening before authorities decide to quarantine a person.
For more information regarding EBT screening, please view this pdf.
FLIR part number: 82502-0201
FLIR T-Series Comparison Table
|
T530 |
T540 |
T560 |
T840 |
T865 |
T1020 |
Thermal resolution |
320 x 240 pixels |
464 x 348 pixels |
640 x 480 pixels |
464 x 348 pixels |
640 x 480 pixels |
1024 x 768 pixels |
Temperature range |
-20˚C to 650˚C |
-20˚C to 1500˚C |
-20˚C to 1500˚C |
-20˚C to 1500˚C |
-40˚C to 2000˚C |
-40˚C to 2000˚C |
Thermal sensitivity |
30mK |
30mK |
50mK |
30mK |
30mK |
20mK |
Accuracy |
±2˚C or ±2% |
±2˚C or ±2% |
±2˚C or ±2% |
±2˚C or ±2% |
±1˚C or ±2% |
±1˚C or ±1% |
Digital zoom |
1-4x |
1-6x |
1-8x |
1-6x |
1-8x |
1-8x |
METERLINK® |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Wi-Fi & USB |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Interchangeable lenses |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
GPS tagging |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
Viewfinder |
- |
- |
- |
✔ |
✔ |
✔ |
Lens compatibility |
14˚, 24˚, 42˚, FlexView Dual FOV 14˚ - 24˚, 80˚ |
14˚, 24˚, 42, FlexView Dual FOV 14˚ - 24˚, 80˚ |
14˚, 24˚, 42, FlexView Dual FOV 14˚ - 24˚, 80˚ |
6˚, 12˚, 24˚, 42, FlexView Dual FOV 14˚ - 24˚, 80˚ |
14˚, 24˚, 42˚, FlexView Dual FOV 14˚ - 24˚, 80˚ |
12˚, 28˚ & 45˚ |
FLIR T840 Thermal Imaging Camera
** The FLIR T840 features an 'Elevated Body Temperature Mode' > read the dedicated section below for more information **
Practical Thermal Imaging
The FLIR T840 Thermal Imaging Camera is an extremely sophisticated thermal imaging camera designed to be used by professional thermographers across a range of industries including power distribution and heavy plant production. It has an infrared sensor with a resolution of 464 x 348 pixels and three object temperature measurement ranges: -20˚C to 120˚C, 0˚C to 650˚C, and 300˚C to 1500˚C. Measurements are accurate to ±2˚C or ±2% and excellent thermal sensitivity of 30mK means that temperature differences of just 0.03˚C can be shown on screen.
The FLIR T840 is available with three different lenses: 14˚, 24˚ and 42˚. Each lens has different fields of view and focus distances. Focusing is done using a laser-guided continuous focus system and it also possible to get a laser distance reading and use a manual focus system. Automatic area calculation in m2 and ft2 is also available. The 180˚ rotating optical block is particularly useful for observing all around the user during inspections and the imager has an integrated viewfinder.
High Quality Thermal Picture
Thermal images are shown on the FLIR T840’s vibrant 4” colour display and a range of palettes are available including iron, greyscale, rainbow, arctic, and lava. A smooth picture in realtime and in saved thermal video is provided by the 30Hz image refresh rate and the high-definition sensor enables 1-6x continuous digital zoom. The imager has various measurement functions such as centre spot, hot spot, cold spot and twin spot surface temperature readings.
An integrated 5MP digital camera takes visual images and video to sit alongside thermal videos and images in the large 8GB SD-card memory. It also enables a wide range of additional display functions on the FLIR T840 such as MSX® image enhancement, picture-in-picture, and thermal blending. One of the standout features of the thermal camera is time lapse which allows the user to monitor an installation over the course of 24 hours to see intermittent faults.
Advanced Analysis Features
The FLIR T840 has multiple analytical features and can store full radiometric thermal video and paired thermal images with visual images. Onboard GPS automatically geotags saved files and it is possible to add 60 second voice observations to video and still images in order to record observations during inspections. METERLINK® Bluetooth technology allows the camera to combine with FLIR test and measurement equipment to add quantitative data to thermographs whilst USB and Wi-Fi technology allows transfers to PCs or smartphones.
Once files are transferred to a PC, the FLIR T840 is compatible with FLIR Ultramax that can multiply the pixel count by four in order to vastly increase thermograph clarity. Video streaming is possible over Wi-Fi or a video out cable. The camera is covered by FLIR’s 2-10 warranty with a decade’s guarantee on the sensor. It comes supplied with a FLIR Tools+ software package, batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, 8GB SD card and USB cables.
Thermal Imaging for Detecting Elevated Body Temperature
This camera includes an EBT screening mode.
While unable to detect a virus or infection, thermal imaging cameras can be used to detect Elevated Body Temperature. FLIR thermal cameras have been used in public spaces—such as airports, train terminals, businesses, factories, and concerts—as an effective tool to measure skin surface temperature and identify individuals with Elevated Body Temperature (EBT).
If the temperature of the skin in key areas (especially the corner of the eye and forehead) is above average temperature, then the individual may be selected for additional screening. Identifying individuals with EBT, who should then be further screened with virus-specific diagnostic tests, can help reduce or dramatically slow the spread of viruses and infections.
Using thermal cameras, officials can be more discrete, efficient, and effective in identifying individuals that need further screening with virus-specific tests. A variety of institutions, including transportation agencies, businesses, factories, and first responders are using thermal screening as an EBT detection method and as part of employee health and screening (EH&S).
Airports in particular are actively employing FLIR thermal cameras as part of their screening measures for passengers and flight crews. The screening procedures implemented at airports and in other public places are just the first step when it comes to detecting a possible infection: it’s a quick way to screen for anyone who might be sick, and must always be followed up with further screening before authorities decide to quarantine a person.
For more information regarding EBT screening, please view this pdf.
FLIR part number: 82502-0201
| T530 | T540 | T840 |
Thermal resolution | 320 x 240 pixels | 464 x 348 pixels | 464 x 348 pixels |
Temperature range | -20˚C to 650˚C | -20˚C to 1500˚C | -20˚C to 1500˚C |
Thermal sensitivity | 30mK | 30mK | 30mK |
Accuracy | ±2˚C or ±2% | ±2˚C or ±2% | ±2˚C or ±2% |
Digital zoom | 1-4x | 1-6x | 1-6x |
METERLINK® | ✔ | ✔ | ✔ |
Wi-Fi & USB | ✔ | ✔ | ✔ |
Interchangeable lenses | ✔ | ✔ | ✔ |
GPS tagging | ✔ | ✔ | ✔ |
Viewfinder | | | ✔ |
Lens compatibility | 14˚, 24˚, 42˚ | 14˚, 24˚, 42˚ | 6˚, 12˚, 24˚, 42 |
Key Features
| | Thermal Resolution 464x348 pixels (161,472 temperature measurements - x4 using Ultramax™). |
|
| | Thermal Sensitivity <0.03°C @ 30°C (30mK) |
|
| | Accuracy +/- 2% or 2°C |
|
| | Temperature Range -20°C to 1500°C |
|
| | UltraMax™ Helps reduce interference and multiplies thermal resolution by four on thermal images and video. |
|
| | MSX® Mixes details from visual images provided by the integrated digital camera contained within the camera. |
|
| | Radiometric Video Recording Videos boast additional temperature data for export to a memory card and further analysis with FLIR Tools software. |
|
| | Rotatable Lens Rotating optical block allows user to view all around them during inspections without having to move the camera up at awkward angles. |
|
| | User Presets Pre-programmed user pre-sets for quicker and easier measurement. |
|
| | Intuitive Touch screen and Interface 4" vibrant colour touch screen and buttons combine with excellent operating system for smooth operation. |
|
| | Built-in Digital Camera 5MP digital camera inbuilt. Captures visible images to sit alongside thermal images and videos which also enables a wide range of other analytical tools such as Picture-in-Picture, Thermal Fusion and MSX®. |
|
| | Meterlink® Works over Bluetooth with FLIR test and measurement instruments to add quantitative information onto images and videos from the FLIR T840. |
|
| | Additional Lenses Available Interchangeable telephoto, wide angle, and close-up optics. |
|
| | Laser Pointer Laser distance meter allows the camera to automatically focus using laser guidance. |
|
| | Annotations Add voice or text comments to images or use the touch screen to sketch. |
|
| | Digital Zoom x6 Digital Zoom function inbuilt. |
|
| | Wi-Fi Connectivity Connects camera to mobile devices so you can stream live thermal video, take remote control, analyse stored images, and e-mail findings quickly from the field. *Requires Free FLIR Tools Mobile App for Android and iPhone. |
|
| | Compass & GPS Embeds pointing direction and geo-location onto thermal image alongside time-and-date stamp |
