FLIR VT8-1000 Electrical Tester

FLIR
SKU: FLIRVT81000
  • Measures AC/DC current from 0 to 200A via fixed clamp jaw
  • AC/DC voltage, resistance and capacitance measurement
  • Non-contact voltage detection for additional safety
More Info
In Stock - Available Next Day

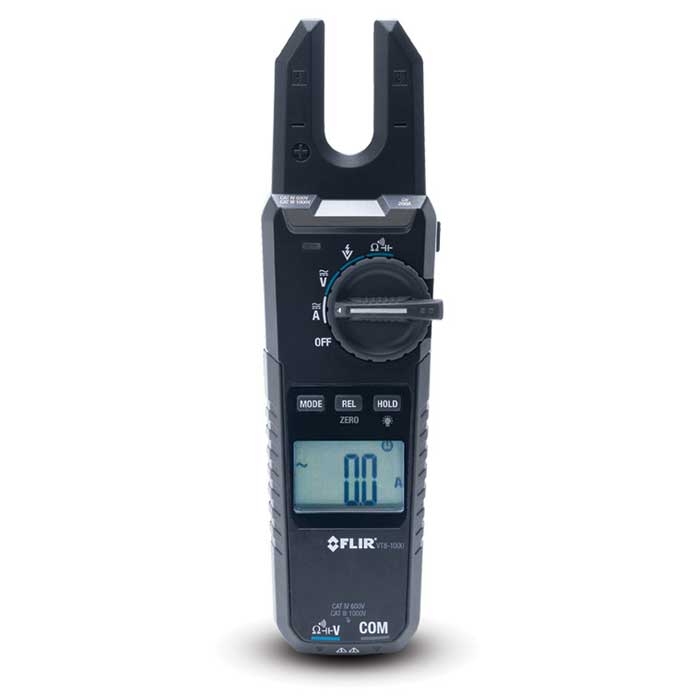

FLIR VT8-1000 Electrical Tester

The FLIR VT8-1000 Electrical Tester can measure electrical parameters such as voltage, current, resistance, and capacitance. Additionally, it can perform a continuity test and even has non-contact voltage detection that warns of live conductors through an LED and audible signal.

The FLIR VT8-1000’s current range goes from 0 to 200A AC/DC with an accuracy of ±2.5% and a resolution of 0.1A. The voltage range goes from 0 to 1000V AC/DC with an accuracy of ±1.5% and a resolution of 0.1V. AC readings for both parameters benefit from TRMS for additional accuracy.

The 15.5mm fixed jaw clamp found on the FLIR VT8-1000 can be used to measure current in large-diameter cables and is great for working into tight spaces inside wiring cabinets. The tester is designed for one-handed use and has an integrated torch and storage facility for folding away test leads when not in use.

Readings are displayed on the FLIR VT8-1000’s backlit LCD screen which has data hold, DCA zero and relative mode. The clear dial operation is extremely simple and auto-ranging helps provide maximum precision.

The FLIR VT8-1000 has a safety rating of Cat IV 600V, Cat III 1000V and comes with test leads and batteries. It is covered by a three-year warranty.

FLIR part number: VT8-1000

Key Features

  • Voltage range: 0 to 1000V
  • Voltage accuracy: ±1.5% (AC), ±1% (DC)
  • Voltage resolution: 0.1V
  • Current range: 0 to 200A
  • Current accuracy: ±2.5%
  • Current resolution: 0.1A
  • 15.5mm fixed jaw clamp
  • Resistance range: 60MΩ
  • Capacitance range: 6000µF
  • Continuity test
  • Non-contact voltage detection
  • LED torch lights
  • Digital LCD screen
  • Cat IV 600V, Cat III 1000V
  • Three-year warranty
Specification

Electrical Measurement

  • True RMS: Yes
  • Auto-ranging: Yes
  • AC/DC voltage range: 0 to 1000V
  • AC/DC (50 to 60Hz) voltage accuracy: ±1.5% (AC), ±1% (DC)
  • AC/DC voltage resolution: 0.1V
  • AC/DC current range: 0 to 200A
  • AC/DC (50 to 60Hz) current accuracy: ±2.5%
  • AC/DC current resolution: 0.1A
  • Resistance: 60.00MΩ, ±(1.5%)
  • Continuity check threshold: 10Ω to 100Ω
  • Capacitance: 600µF, ±4%; 6000µF, ±10%
  • Non-Contact Voltage Detection: ≥100V RMS; ≤10mm distance (LED / buzzer alerts)
  • Additional measurement functions: DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold

General

  • Worklights: White LED
  • Jaw opening: 15.5mm
  • Display: 6000-count backlit multi-function LCD
  • Display rate: 3Hz approx.
  • Polarity: Automatic display of positive and negative polarity
  • Over-range indication: ‘OL’ or ‘-OL’ displayed
  • Auto power off: After 15 minutes
  • Power source: 2 x AA alkaline batteries
  • Low battery indication: Yes

Environmental Data

  • Operating temperature: -10˚C to 50˚C
  • Relative humidity: 95% max; 5 to 30°C (41 to 86°F) / 75% max; 30 to 40°C (86 to 104°F) / 45% max; 40 to 50°C (104 to 122°F)
  • Storage temperature: -30 to 60°C (-22 to 140°F), batteries not installed
  • Drop test: 2m

Physical Data

  • Dimensions: 210mm x 53mm x 35mm
  • Weight: 163.7g

General

  • Warranty: Three years (limited)
  • Certifications: C-UL-US, CE, RCM
  • Safety Category Rating: CAT IV-600 V, CAT III-1000 V, EN 61010-1, EN 61010-2-032, EN 61010-2-033
