FLIR VT8-600 Electrical Tester

FLIR
SKU: FLIRVT8600
  • Measures voltage up to 600V and current up to 100A
  • 15.5mm fixed jaw clamp and simple one-handed operation
  • Non-contact voltage detection integrated into the tester
More Info
In Stock - Available Next Day

FLIR VT8-600 Electrical Tester

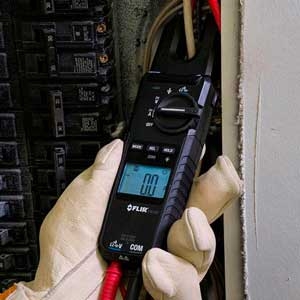

FLIR VT8-600 In Use

The FLIR VT8-600 Electrical Tester is a versatile instrument capable of measuring current, voltage, resistance (60MΩ), and capacitance (6000µF). The AC/DC current range goes from 0 to 100A with an accuracy of ±2.5% and a resolution of 0.1A whilst the AC/DC voltage range goes from 0 to 600V with ±1.5% and a resolution of 0.1V. It is also capable of performing a continuity check and AC readings benefit from TRMS.

Current measurements are taken via the FLIR VT8-600’s 15.5mm fixed jaw clamp, which is particularly useful for large cables or tight spaces. Furthermore, the tester has non-contact voltage detection that helps the user make sure that installations are not live during inspections.

Multiple practical features make the FLIR VT8-600 very easy to use. Alongside the jaw, there is storage for the test leads, one-handed dial operation and an integrated torch. Readings are displayed on the backlit LCD screen which boasts DCA zero, relative mode and data hold.

The FLIR VT8-600 is extremely sturdy - having been drop tested to 2m - and has a Cat IV 300V Cat III 600V safety rating. It is covered by a three-year warranty and comes supplied with test leads and batteries.

FLIR part number: VT8-600

Key Features

  • Voltage range: 0 to 600V
  • Voltage accuracy: ±1.5% (AC), ±1% (DC)
  • Voltage resolution: 0.1V
  • Current range: 0 to 100A
  • Current accuracy: ±2.5%
  • Current resolution: 0.1A
  • 15.5mm fixed jaw clamp
  • Resistance range: 60MΩ
  • Capacitance range: 6000µF
  • Continuity test
  • Non-contact voltage detection
  • Integrated LED lights
  • Clear LCD screen
  • Cat IV 300V, Cat III 600V
  • Three-year warranty
Specification

Electrical Measurement

  • True RMS: Yes
  • Auto-ranging: Yes
  • AC/DC voltage range: 0 to 600V
  • AC/DC (50 to 60Hz) voltage accuracy: ±1.5% (AC), ±1% (DC)
  • AC/DC voltage resolution: 0.1V
  • AC/DC current range: 0 to 100A
  • AC/DC (50 to 60Hz) current accuracy: ±2.5%
  • AC/DC current resolution: 0.1A
  • Resistance: 60.00MΩ, ±(1.5%)
  • Continuity check threshold: 10Ω to 100Ω
  • Capacitance: 600µF, ±4%; 6000µF, ±10%
  • Non-Contact Voltage Detection: ≥100V RMS; ≤10mm distance (LED / buzzer alerts)
  • Additional measurement functions: DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold

General

  • Worklights: White LED
  • Jaw opening: 15.5mm
  • Display: 6000-count backlit multi-function LCD
  • Display rate: 3Hz approx.
  • Polarity: Automatic display of positive and negative polarity
  • Over-range indication: ‘OL’ or ‘-OL’ displayed
  • Auto power off: After 15 minutes
  • Power source: 2 x AA alkaline batteries
  • Low battery indication: Yes

Environmental Data

  • Operating temperature: -10˚C to 50˚C
  • Relative humidity: 95% max; 5 to 30°C (41 to 86°F) / 75% max; 30 to 40°C (86 to 104°F) / 45% max; 40 to 50°C (104 to 122°F)
  • Storage temperature: -30 to 60°C (-22 to 140°F), batteries not installed
  • Drop test: 2m

Physical Data

  • Dimensions: 210mm x 53mm x 35mm
  • Weight: 163.7g

General

  • Warranty: Three years (limited)
  • Certifications: C-UL-US, CE, RCM
  • Safety Category Rating: CAT IV-300 V, CAT III-600 V, EN 61010-1, EN 61010-2-032, EN 61010-2-033
