Fluke 117 True RMS Multimeter

Be the first to review this product

  • Measures AC/DC voltage, AC/DC current, resistance, frequency, and capacitance
  • VoltAlert non-contact voltage detection improves user safety
  • Performs continuity and diode testing with audible buzzer feedback
In Stock
Returns Guarantee

rrp £225.00

now £179.00 (Ex. VAT) £214.80 (Inc. VAT)

rrp £225.00

Please select a free gift below.

  • Description

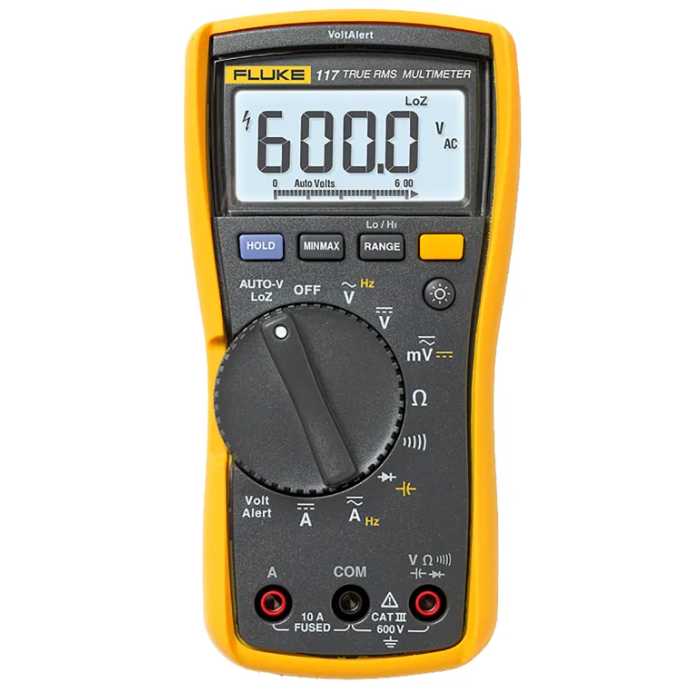

    Fluke 117 True RMS Multimeter

    The Fluke 117 True RMS Multimeter is a sophisticated multimeter with a large range of functions that would be ideal for the professional electrician. It can take readings for AC/DC voltage, AC/DC current, resistance, frequency, and capacitance as well as carrying out continuity and diode tests. A millivolt range allows the instrument to accurately evaluate low-powered circuits whilst low input impedance (LoZ) prevents problems related to ghost voltage. The sizeable measurement ranges and excellent accuracy - in part thanks to True RMS - make it a very useful instrument and the user also benefits from several additional features.

    Readings from the Fluke 117 are displayed on the backlit digital screen as individual figures and in the form of a bar-graph. There is also an option for min/max/avg recording to give a comprehensive picture of a system’s outputs in any given parameter. Data hold allows a value to be frozen on screen and there is a visual warning of dangerous voltage. The 117’s non-contact VoltAlert voltage detection enhances safety as the user is made aware of the presence of voltage before making any contact with the circuits.

    The Fluke 117 has automatic ranging which immediately selects the appropriate measurement range and resolution although the user can manually override the automatic selection if need be. Another useful time-saving feature is AutoVolt which detects whether voltage is AC or DC.

    The VoltAlert non-contact voltage detection is supplemented by the Fluke 117’s impressive Cat III safety rating up to 600V and it is approved by all relevant bodies so the user can have confidence when operating the instrument. It comes supplied with a battery and a set of Fluke test leads and constitutes a superb instrument for capturing data for all manner of electrical variables.

    Fluke part number: 117

    Key Features

    • AC/DC voltage range: 0 to 600V
    • AC/DC current range: 0 to 10A
    • Milliamp and millivolt ranges
    • Resistance range: 40MΩ
    • Capacitance range: 10,000µF
    • Frequency range: 50kHz
    • Continuity and diode testing
    • VoltAlert non-contact voltage detection
    • Min/max/avg recording & data hold
    • Automatic and manual range selection
    • LoZ low input impedance
    • Automatically detects whether voltage is AC or DC
    • Clear, backlit screen with analogue display
    • Cat III to 600V
    • Batteries and test leads included
  • Specification

    DC Millivolts

    • Range: 0 to 600.0mV
    • Resolution: 0.1mV
    • Accuracy: 0.5% + 2

    DC Voltage

    • Range: 0 to 6V / 0 to 60V / 0 to 600V
    • Resolution: 0.001V / 0.01V / 0.1V
    • Accuracy: 0.5% + 2

    Auto-V Loz True RMS

    • Range: 0 to 600V
    • Resolution: 0.1V
    • Accuracy: 2% + 3 (45 to 500Hz) / 4% + 3 (500Hz to 1kHz)

    True RMS AC millivolts

    • Range: 600.0mV
    • Resolution: 0.1mV
    • Accuracy: 1% + 3 (45 to 500Hz) / 2% + 3 (500Hz to 1kHz)

    True RMS AC Voltage

    • Range: 0 to 6V / 0 to 60V / 0 to 600V
    • Resolution: 0.001V / 0.01V / 0.1V
    • Accuracy: 1% + 3 (45 to 500Hz) / 2% + 3 (500Hz to 1kHz)

    Continuity Testing

    • Range: 600Ω
    • Resolution: 1Ω
    • Accuracy: Buzzer sounds at <20Ω, switches off at >250Ω; detects opens or shorts of 500µs or longer

    Resistance

    • Ranges: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 40MΩ
    • Resolutions: 0.1Ω / 0.001kΩ / 0.01kΩ / 0.1kΩ / 0.001MΩ / 0.01MΩ
    • Accuracy: 0.9% + 2 / 0.9% + 1 / 0.9% + 1 / 0.9% + 1 / 0.9% + 1 / 5% + 2

    Diode Test

    • Range:  2V
    • Resolution: 0.001V
    • Accuracy: 0.9% + 2

    Capacitance

    • Ranges: 1000nF / 10.00µF / 100.0µF / 9999µF
    • Resolutions: 1nF / 0.01µF / 0.1µF / 1µF
    • Accuracy: 1.9% + 2 / 1.9% + 2 / 1.9% + 2 / 1.9% + 2 (100µF - 1000µF); 5% + 20 (>1000µF)

    LoZ Capacitance

    • Range: 1nF to 500µF
    • Acccuracy: 10% + 2 typical

    True RMS AC Current (45 to 500Hz)

    • Ranges: 6A / 10A / 20A (30s max followed by 10 minute rest period)
    • Resolutions: 0.001A / 0.01A / 0.01A
    • Accuracy: 1.5% + 3

    DC Current

    • Ranges: 6A / 10A / 20A (30s max followed by 10 minute rest period)
    • Resolution: 0.001A / 0.01A
    • Accuracy: 1% + 3

    Frequency

    • Ranges: 99.99Hz / 999.9Hz / 9.999kHz / 50.00kHz
    • Resolutions: 0.01Hz / 0.1Hz / 0.001kHz / 0.01kHz
    • Accuracy: 0.1% + 2
  • Supplied Accessories

    • Fluke 117 True RMS Multimeter
    • Instruction manual for Fluke 117 True RMS Multimeter
    • Red/black test leads
    • 9V battery
