Fluke 1507 Insulation Resistance Tester

Be the first to review this product

  • Large insulation resistance measurement range of 0.01MΩ to 10GΩ
  • Test voltages of 50V, 100V, 250V, 500V and 1000V
  • Voltage measurement to 600V and earth bond resistance testing

rrp £429.00

now £329.00 (Ex. VAT) £394.80 (Inc. VAT)

rrp £429.00

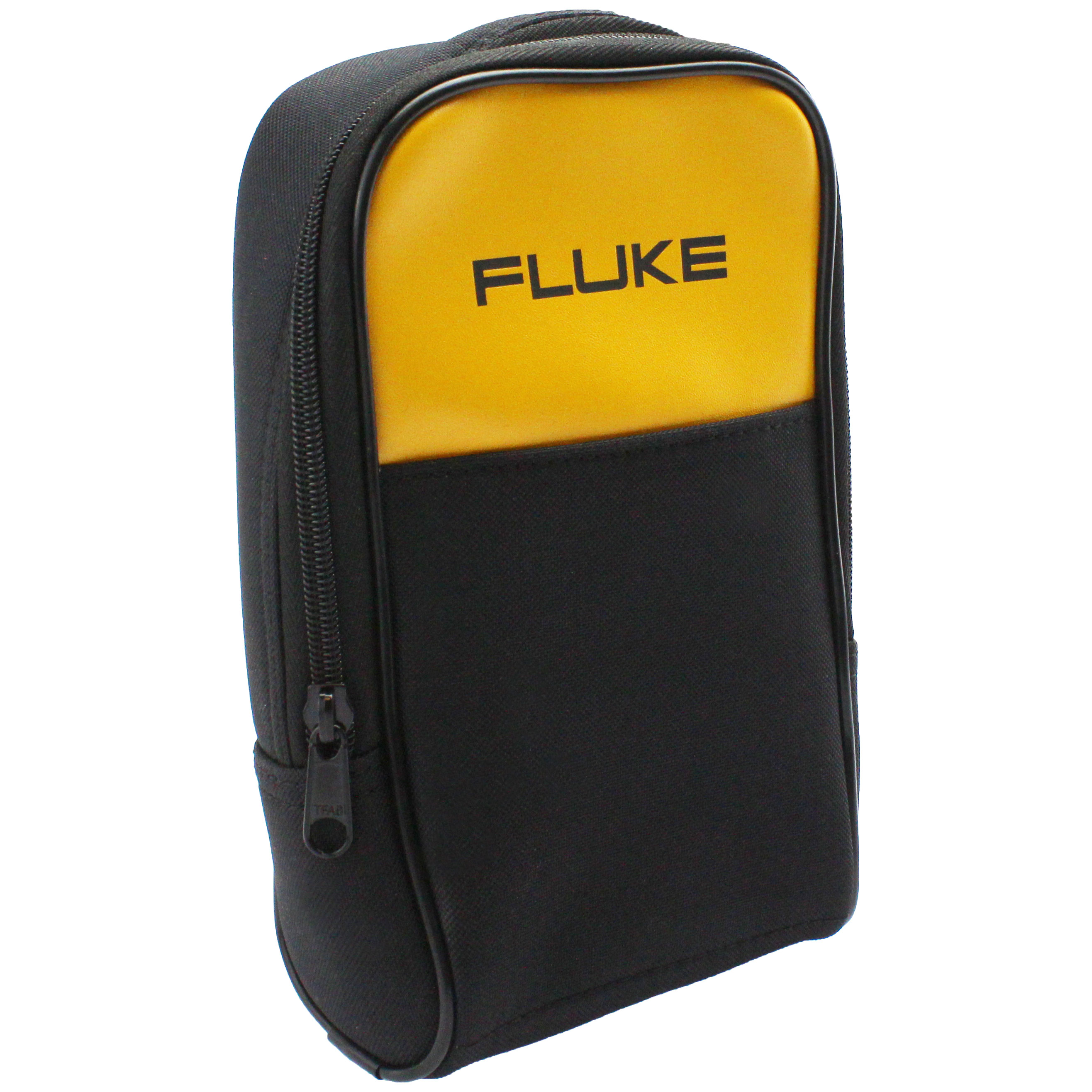

Please select a free gift below.

"Performs insulation testing from 0.01MΩ 10G"

  • Description

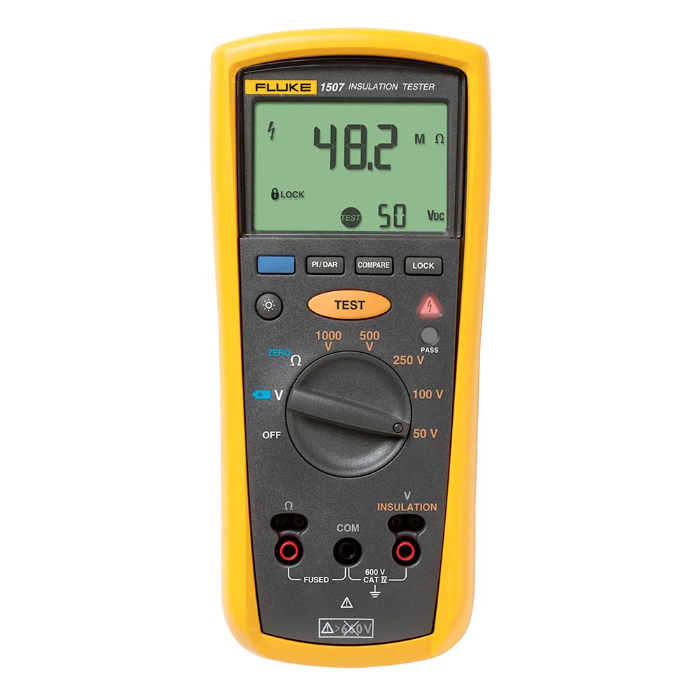

    Fluke 1507 Insulation Resistance Tester

    The Fluke 1507 Insulation Resistance Tester stands out because of its enormous measurement range from 0.01MΩ to 10GΩ. Five different test voltages of 50V, 100V, 250V, 500V and 1000V allow a great deal of choice for the user whilst usability is further bolstered by a range of advanced features. Most notably, AC/DC voltage measurement up to 600V and earth bond resistance measurement add important extra options to the principal use of insulation testing.

    Polarisation index and dielectric absorption ratio are automatically calculated by the Fluke 1507, thus saving time, and the 'compare' function means that repetitive tests are streamlined via a pass/fail function. Furthermore, a remote probe brings greater access to awkward test locations as well as making measurement repetition easier and simpler.

    Test results are displayed on the Fluke 1507’s backlit digital screen whilst pass/fail and dangerous voltage indications are shown in the form of LED lights. The user benefits from simple dial operation and a large ‘test’ button which is easy to press when wearing gloves.

    The Fluke 1507 is an extremely safe instrument thanks to its automatic voltage detection which prevents tests when a voltage of 30V or over is detected. The inputs are safety rated as Cat IV up to 600V so the user can have confidence when operating the instrument.

    The product comes supplied with test leads, probe tips and crocodile clips. Overall, the Fluke 1507 constitutes a sophisticated, safe insulation tester with impressive measurement capabilities.

    Fluke part number: 1507

    Key Features

    • Insulation resistance range of 0.01MΩ to 10GΩ
    • Test voltages of 50V, 100V, 250V, 500V and 1000V
    • Earth bond resistance measurement
    • AC/DC voltage measurement from 0 to 600V
    • Automatic polarisation index and dielectric absorption radio calculation
    • Compare function for pass/fail tests
    • Remote probe included
    • Backlit, digital screen
    • LED feedback for pass/fail and dangerous voltage
    • Simple dial and push button operation
    • Cat IV to 600V
    • Test leads, test probes and crocodile clips included
    • Battery life of up to 1000 voltage tests
  • Specification

    AC/DC Voltage measurement

    • Range: 600.0V
    • Resolution: 0.1V
    • Accuracy: ±(2% +3) (50 to 400Hz)
    • Overload protection: 600V AC or DC

    Earth bond resistance measurement

    • Range: 20Ω / 200Ω / 2000Ω / 20kΩ
    • Resolution: 0.01Ω / 0.1Ω / 1Ω / 0.01kΩ
    • Accuracy: ±(1.5% + 3)
    • Overload protection: 2V AC or DC
    • Open circuit test voltage: >4.0V, <8V
    • Short circuit current: >200mA

    Insulation Resistance

    • Range: 0.01MΩ to 10GΩ
    • Test voltages: 50V, 100V, 250V, 500V, 1000V
    • Test voltage accuracy: +20%, -0%
    • Short circuit current: 1mA nominal
    • Auto discharge: Discharge time <0.5s for C = 1µF or less
    • Live circuit indicator: Inhibit test of terminal voltage >30V is detected prior to initialisation
    • Maximum capacitive load: Operable with up to 1µF load
    • Measurement accuracy: ±(3% + 5) 50V, ±(3% + 5) 100V, ±(1.5% + 5) 250V, ±(1.5% + 5) 500V, ±(1.5% + 5) 1000V, ±(1.5% + 5) to 2000MΩ and ±(10% + 3) over 2000MΩ

    General

    • Max voltage: 600V AC or DC
    • Storage temperaturee: -40˚C to 60˚C
    • Operating temperature: -20˚C to 55˚C
    • Temperature coeficient: 0.05 x (specified accuracy) per ˚C when <18˚C or >28˚C
    • Relative humidity: 0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F) / 0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F) / 0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
    • Vibration: Random, 2g, 5-500Hz per MIL-PRF-28800F, Class 2 instrument
    • Shock: 1m drop
    • Safety: Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
    • Batteries: Four AA batteries
    • Battery life: >1000 high voltage tests, >2500 earth bond resistance tests
    • Dimensions: 50 x 100 x 203mm
    • Weight: 550g
    • IP rating: IP40
    • Operating altitude: 2000m
    • Storage altitude: 12000m
    • Over-range capacity: 110%
  • Supplied Accessories

    • Fluke 1507 Insulation Tester
    • Instructions for Fluke 1507 Insulation Tester
    • Test leads
    • Test probes
    • Crocodile clips
    • Calibration certificate
