Fluke 1587 FC Insulation Tester and Multimeter

Be the first to review this product

  • Allows insulation testing up to 2GΩ as well as advanced electrical troubleshooting
  • Measures AC/DC voltage, AC/DC current, diode, continuity, capacitance, frequency etc.
  • Works with Fluke Connect App to see results on smartphone and much more

rrp £605.00

now £479.00 (Ex. VAT) £574.80 (Inc. VAT)

rrp £605.00

Please select a free gift below.

"Combines impressive insulation testing with comprehensive multimeter functions "

  • Description

    Fluke 1587 FC Insulation Tester / DMM Multimeter

    The Fluke 1587 FC is an innovative amalgamation of an accurate digital insulation tester and a versatile, handheld, digital multimeter. Insulation resistance can be measured between 0.01MΩ and 2GΩ thanks to the 1587 FC’s ample choice of test voltages (50 to 1000V). As far as multimeter functions are concerned, the instrument gives the user options for AC/DC voltage measurement, AC/DC current, resistance measurement, diode test, continuity test, frequency measurement, capacitance and temperature.

    Measurements are taken to a high degree of accuracy over large ranges whilst range and resolution options add versatility and precision. True RMS measurement aids accuracy for both AC current and AC voltage and the Fluke 1587 FC also has a VFD low-pass filter for accurate motor drive measurements.

    Further sophisticated features build on the Fluke 1587 FC’s measurement options. Most prominently, the device boasts connection with the Fluke Connect App, which allows the user to see readings on his/her smartphone. The App allows PI/DAR timed ratio tests - which make use of TrendIt graphs - to quickly detect problems related to moisture and contaminated insulation. Temperature compensation is provided through the App whilst readings can also be digitally uploaded to a shared database and there is an option to historically track trends in assets.

    Safety is also an important aspect of the Fluke 1587 FC. A voltage detector prevents insulation testing if voltages over 30V are detected and there is an auto-discharge of capacitive voltage to keep the user safe. The instrument is rated Cat IV to 600V and Cat III to 1000V. Results are displayed on the clear, backlit LCD screen as well as on the user’s smartphone whilst the device is also portable and sturdy.

    The Fluke 1587 FC comes supplied with all the necessary accessories for insulation testing and electrical troubleshooting including a remote probe, test leads, crocodile clips, a Type-K thermocouple, a hard case, and instruction documents.

    Fluke part number: FLK-1587-FC

    Fluke Connect App

    The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

    Fluke 1587 FC Key Features

    • Insulation testing from 0.01MΩ to 2GΩ
    • AC/DC voltage measurement (0 to 1000V)
    • AC/DC current measurement (0 to 400mA)
    • Milliamp and millivolt readings
    • Diode/continuity test, frequency, capacitance, temperature
    • True RMS measurement
    • VFD low-pass filter
    • Advanced analysis and more via Fluke Connect App
    • View results on smartphone screen
    • Voltage detection and capacitance auto-discharge for safety
    • Supplied with all necessary accessories
  • Specification

    AC voltage measurement (Range / Resolution / Accuracy 50 to 60Hz / Accuracy 60 to 5000Hz)

    • 600.0mV / 0.1mV / ±(1% + 3) / ±(2% + 3)
    • 6.000V / 0.001V / ±(1% + 3) / ±(2% + 3)
    • 60.00V / 0.01V / ±(1% + 3) / ±(2% + 3)
    • 600.0V / 0.1V / ±(1% + 3) / ±(2% + 3)
    • 1000V / 1V / ±(2% + 3) / ±(2% + 3)

    Low-Pass Filter Voltage (Range / Resolution / Accuracy 50 to 60Hz / Accuracy 60 to 400Hz

    • 600.0mV / 0.1mV / ±(1% + 3) / +(2% + 3), -(6% - 3)
    • 6.000V / 0.001V / ±(1% + 3) / +(2% + 3), -(6% - 3)
    • 60.00V / 0.01V / ±(1% + 3) / +(2% + 3), -(6% - 3)
    • 600.0V / 0.1V / ±(1% + 3) / +(2% + 3), -(6% - 3)
    • 1000V / 1V / ±(2% + 3) / +(2% + 3), -(6% - 3)

    DC Voltage Measurement (Range / Resolution / Accuracy

    • 6.000V / 0.001V / ±(0.09% + 2)
    • 60.00V / 0.01V / ±(0.09% + 2)
    • 600.0V / 0.1V / ±(0.09% + 2)
    • 1000V / 1V / ±(0.09% + 2)
    • Input impedance: 10MΩ (nominal), <100pF
    • Normal mode rejection ratio: <60dB @ 50Hz
    • Common mode rejection ratio: <120dB, 50Hz or 60Hz (1 k unbalance)

    DC Voltage Millivolt Measurement (Range / Resolution / Accuracy

    • 600.0mV / 0.1mV / ±(0.01% + 1)

    AC Current Measurement (45Hz to 1000Hz) (Range / Resolution / Accuracy / Burden Voltage

    • 400mA / 0.1mA / ±(1.5% + 2)1 / 2 mv/mA
    • 60mA / 0.01mA / ±(1.5% + 2) / 2 mV/mA

    DC Current Measurement (Range / Resolution . Accuracy Burden Voltage

    • 400mA / 0.1mA / ±(0.2% + 2) / 2 mv/mA
    • 60mA / 0.01mA / ±(0.2% + 2) / 2 mV/mA
    • Overload: 600mA for 2 minutes maximum
    • Fuse protection for mA input: 0.44mA, 1000V, IR 10kA
    • AC conversion: Inputs are AC-coupled and calibrated to the RMS value of sine wave input

    11 kHz bandwidth

    Resistance measurement (Range / Resolution / Accuracy

    • 600.0Ω / 0.1Ω / ±(0.9% + 2)
    • 6.000kΩ / 0.001kΩ / ±(0.9% + 2)
    • 60.00kΩ / 0.01kΩ / ±(0.9% + 2)
    • 600.0kΩ / 0.1kΩ / ±(0.9% + 2)
    • 6.000MΩ / 0.001MΩ / ±(0.9% + 2)
    • 50.0MΩ2 / 0.01MΩ / ±(1.5% + 3)
    • Overload protection: 1000V RMS or DC
    • Open circuit test voltage: <8.0V DC
    • Short circuit current: <1.1mA

    1Accuracies apply from 0% to 100% of range.

    2Up to 80% RH

    Diode Test

    • Diode test indication: Display voltage drop 0.6V at 1mA nominal test current
    • Accuracy: ±(2% + 3)

    Continuity Test

    • Continuity indication: Continuous buzzer for resistance below 25Ω and off above 100Ω (Max reading = 1000Ω)
    • Open circuit voltage: <8.0V
    • Short circuit current: 1.0mA typical
    • Overload protection: 1000V RMS
    • Response time: >1ms

    Frequency Measurement (Range / Resolution / Accuracy)

    • 99.99Hz / 0.01Hz / ±(0.1% + 1)
    • 999.9Hz / 0.1Hz / ±(0.1% + 1)
    • 9.999kHz / 0.001kHz / ±(0.1% + 1)
    • 99.99kHz / 0.01kHz / ±(0.1% + 1)

    >>

    Frequency Counter Sensitivity (Voltage / V AC sensitivity (RMS Sine Wave)1 5Hz to 100kHz / DC trigger levels1 to 20kHz2

    • 600mV AC / 100mV / 150mV / n/a
    • 6V / 1V / 1.5V / -400.0mV and 2.5V
    • 60V / 10V / 36V / 1.2V and 4.0V
    • 600V / 100V / n/a / 12V and 40V
    • 1000V / 300V / n/a / 12V and 40V

    1Mas input for specified accuracy + 10 x range (1000V max). Noise at low frequencies and amplitudes may affect accuracy

    2Usable to 100kHz with full scale input

    Capacitance Measurement (Range / Resolution / Accuracy)

    • 1000nF / 1nF / ±(1.2% + 2)
    • 10.00µF / 0.01µF / ±(1.2% + 2)
    • 100.0µF / 0.1µF / ±(1.2% ± 90 counts)
    • 9999µF / 1µF / ±(1.2% ± 90 counts)

    Temperature Measurement (Range / Resolution / Accuracy)

    • -40°C to 537°C / 0.1°C / ±(1% + 10)

    1Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument

    Insulation Specifications

    • Measurement range: 0.01MΩ to 2GΩ
    • Test voltages: 50, 100, 250, 500, 1000V
    • Test voltage accuracy: +20%, -0%
    • Short-circuit test current: 1mA nominal
    • Auto discharge: Discharge time
    • Live circuit detection: Inhibit test if terminal voltage > 30V prior to initialisation of test
    • Maximum capacitive load: Operable with up to 1µF load

    Output Voltage (Test Voltage / Display Range / Resolution / Test Current 1 / Accuracy 1 / Display Range 2 / Resolution 2 / Test Current 2 / Accuracy 2 / Display Range 3 / Resolution 3 / Test Current 3 / Accuracy 3)

    • 50V (0% to 20%) / 0.01 to 6MΩ / 0.01MΩ / 1mA @ 50kΩ / ±(3% + 5) / 6 to 50MΩ / 0.1MΩ / 1mA @ 50kΩ / ±(3% + 5) / - / - / - / -
    • 100V (0% to +20%) / 0.01 to 6MΩ / 0.01MΩ / 1mA @ 100kΩ / ±(3% + 5) / 6 to 60MΩ / 0.1MΩ / 1mA @ 100kΩ / ±(3% + 5) / 60 to 100MΩ / 1MΩ / 1mA @ 250kΩ / ±(1.5% + 5)
    • 250V (0% to +20%) / 0.1 to 60MΩ / 0.1MΩ / 1mA @ 250kΩ / ±(1.5% + 5) / 60 to 250MΩ / 1MΩ / 1mA @ 250kΩ / ±(1.5% + 5) / - / - / - / -
    • 500V (0% to +20%) / 0.1 to 60MΩ / 0.1MΩ / 1mA @ 500kΩ / ±(1.5% + 5) / 60 to 500MΩ / 1MΩ / 1mA @ 500kΩ / ±(1.5% + 5) / - / - / - / -
    • 1000V (0% to +20%) / 0.1 to 60MΩ / 0.1MΩ / 1mA @ 1MΩ / ±(1.5% + 5) / 60 to 600MΩ / 1MΩ / 1mA @ 1MΩ / ±(1.5% + 5) / 0.6 to 2.0GΩ / 100MΩ / 1mA @ 1MΩ / ±(10% + 3)

    General

    • Max voltage: 1000V
    • Storage temperature: -40˚C to 60˚C
    • Operating temperature: -20˚C to 55˚C
    • Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C
    • Relative humidity (non-condensing): 0% to 95% @ 10 °C to 30 °C / 0% to 75% @ 30 °C to 40 °C / 0% to 40% @ 40 °C to 55 °C
    • Vibration: Random, 2g, 5-500Hz per MIL-PRF-28800F, Class 2
    • Radio frequency communication: 2.4 GHz ISM Band
    • Radio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE
    • IEC 61010-1: Pollution degree 2
    • IEC 61010-2-033: Cat IV 600V / Cat III 1000V
    • Batteries: Four AA batteries (NEDA 15A or IEC LR6)
    • Battery life: 1000 hours
    • Size (H x W x L): 10 x 100 x 203mm
    • Weight: 550g
    • Altitude: 2000m (operation) / 12000m (storage)
    • Over-range capability: 11% of range except for capacitance which is 100%
    • Frequency overload protection: <107 V Hz
    • Fuse protection for mA input: 0.44A, 1000V, IR 10kA
  • Supplied Accessories

    • Fluke 1587 FC Insulation Multimeter
    • Instructions for Fluke 1587 FC Insulation Multimeter
    • Remote probe
    • Test leads

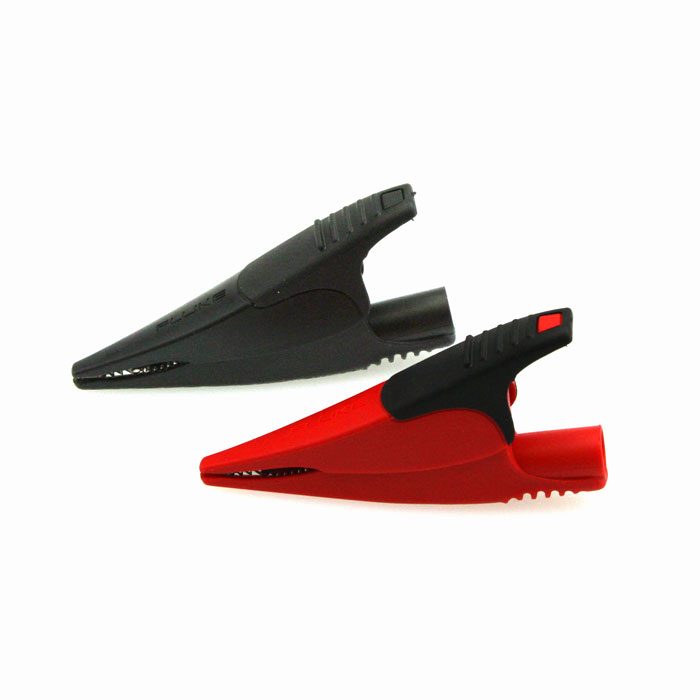

    • Crocodile clips
    • K-type thermocouple
    • Hard carry case
    • Calibration certificate
