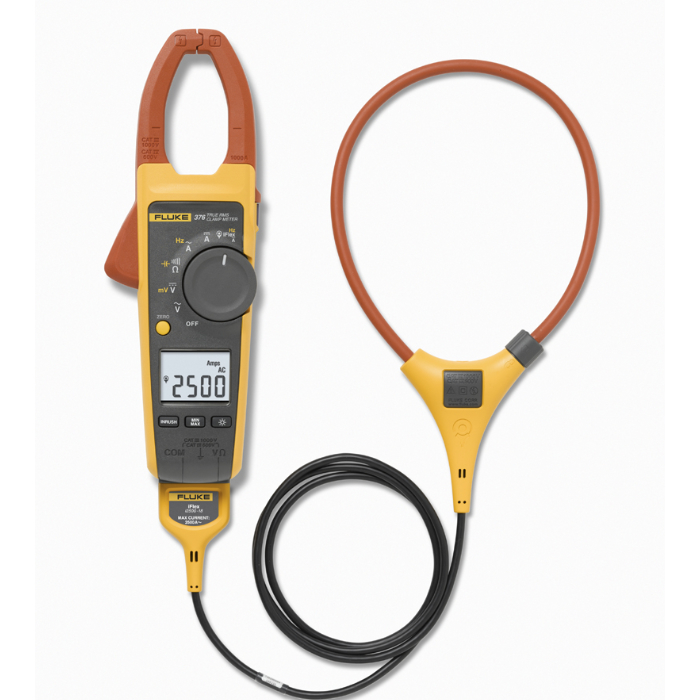

Fluke 376 FC True RMS AC/DC Clamp Meter

Be the first to review this product

  • Accurately measures current, voltage, resistance, frequency and capacitance
  • iFlex flexible current probe included with max AC current range of 2500A
  • Wireless connection via Bluetooth and Fluke Connect to tablet/smartphone
In Stock
Returns Guarantee

rrp £481.00

now £368.00 (Ex. VAT) £441.60 (Inc. VAT)

rrp £481.00

Please select a free gift below.

"Large measurement ranges for different parameters aid in depth analysis"

  • Description

    Fluke 376 FC True RMS AC/DC Clamp Meter

    As a smart device with wireless Bluetooth connectivity, the Fluke 376 FC True RMS AC/DC Clamp Meter can communicate readings instantly to an appropriate smartphone or tablet with the Fluke Connect app which opens up several possibilities including datalogging, trend analysis, data transfer off site, and video calls with colleagues around the world. Furthermore, the clamp meter can be attached to a system before the user retreats to a safe distance and looks at the results on his/her smartphone.

    The measurement capabilities of the Fluke 376 FC are also impressive. It takes readings for AC/DC current, AC/DC voltage, frequency, resistance (including continuity test) and capacitance. Different ranges and resolutions are available for each parameter - including mV - and true RMS measurement means that AC readings have improved accuracy. Furthermore, the included Fluke iFlex Flexible Current Probe increases AC current range up to 2500A and also provides great access to awkward wiring thanks to its flexible wire-coil clamp. Inrush current mode allows accurate current measurement during system start-up phases whilst a low pass filter ensures accuracy in motor drive measurements.

    The Fluke 376 FC’s backlit LCD screen displays results clearly and has an option for min/max/avg recording - also available via the Fluke Connect app - in order to give a full picture of circuit outputs. There is a display hold option and the dial operation always clearly shows which parameter is under inspection. The wide jaw and iFlex current probe bring good access to awkward wiring and an included Fluke TPAK wall hanging kit allows hands-free use. The instrument is safety rated as Cat III to 1000V and Cat IV to 600V and comes supplied with test leads and other accessories in a handy soft carry case.

    Fluke part number: 376FC

    Fluke Connect App

    The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

    Fluke 376 FC Key Features

    • Fluke iFlex probe included
    • True RMS
    • AC/DC current range via jaw: 0 to 1000A
    • AC current range via iFlex probe: 0 to 2500A
    • AC/DC voltage range: 0 to 1000V
    • Resistance range: 0 to 60kΩ
    • Frequency range: 5 to 500Hz
    • Capacitance range: 0 to 1000µF
    • Continuity testing
    • Inrush current
    • Low pass filter
    • Backlit LCD screen with display hold
    • Min/max/avg recording
    • Bluetooth connection to Fluke Connect app
    • Wall hanging kit, test leads and carry case are included
  • Specification

    AC Current via Jaw

    • Range: 1000A
    • Resolution: 0.1A
    • Accuracy: 2% ± 5 (10Hz to 100Hz); 2.5% ± 5 (100Hz to 500Hz)
    • Crest factor: 3 @ 500A; 2.5 @ 600A; 1.42@ 1000A

    AC Current via Flexible Current Probe

    • Range: 2500A
    • Resolution: 0.1A (≤999.9A); 1A (≤2500A)
    • Accuracy: 3% ± 5 (5 to 500Hz)
    • Crest factor: 3 @ 1100A; 2.5 @ 1400A; 1.42 @ 2500

    DC Current

    • Range: 1000A
    • Resolution: 0.1A
    • Accuracy: 2% ± 5

    AC Voltage

    • Range: 1000V
    • Resolution: 0.1V (≤600V); 1V (≤1000V)
    • Accuracy: 1.5% ± 5 (20Hz to 500Hz)

    DC Voltage

    • Range: 1000V
    • Resolution: 0.1V (≤600V); 1V (≤1000V)
    • Accuracy: 1% ± 5

    DC Voltage mV

    • Range: 500.0mV
    • Resolution: 0.1mV
    • Accuracy: 1% ± 5

    Resistance

    • Range: 60kΩ
    • Resolution: 0.1Ω (≤600Ω); 1Ω (≤6000Ω); 10Ω (≤60kΩ)
    • Accuracy: 1% ± 5

    Capacitance

    • Range: 1000µF
    • Resolution: 0.1µF (≤100µF); 1µF (≤1000µF)
    • Accuracy: 1% ± 4

    Frequency via Jaw

    • Range: 5 to 500Hz
    • Resolution: 0.1Hz
    • Accuracy: 0.5% ± 5
    • Trigger level: 5Hz to 10Hz, ≥10A; 10Hz to 100Hz, 5A; 100Hz to 500Hz, ≥10A

    Frequency via Flexible Current Probe

    • Range: 5 to 500Hz
    • Resolution: 0.1Hz
    • Accuracy: 0.5% ± 5
    • Trigger level: 5Hz to 20Hz, ≥25A; 20Hz to 100Hz, 20A; 100Hz to 500Hz, ≥25A

    General

    • Max voltage: 1000V
    • Batteries: 2 x AA
    • Operating temperature: -10˚C to +50˚C
    • Storage temperature: -40˚C to +60˚C
    • Operating humidity: Non condensing (<10˚C); ≤90% (10˚C to 30˚C); ≤75% (30˚C to 40˚C); ≤45% (40˚C to 50˚C)
    • Operating altitude: 2000m
    • Storage altitude: 12000m
    • Dimensions: 249mm x 85mm x 45mm
    • Weight: 410g
    • Jaw opening: 34mm
    • Flexible probe diameter: 7.5mm
    • Flexible probe cable length: 1.8m
    • Safety: IEC 61010-2-032 Cat III 1000V, Cat IV to 600V; IEC 61010-2-033 Cat III 1000V, Cat IV to 600V

    Fluke Connect

    • Fluke Connect is compatible with iOS 8 or above and Android 4.4 or above
  • Supplied Accessories

    • Fluke 376 FC True RMS AC/DC Clamp Meter
    • Instruction booklet for Fluke 376 FC True RMS AC/DC Clamp Meter
    • Fluke iFlex Flexible Current Probe
    • Red/black test leads
    • Fluke TPAK wall hanging kit
    • Soft carry carry case
