Huatec TG-8812 Ultrasonic Thickness Gauge - Choice of Kit

SKU: HUATTG8812-CONF
  • Measures the thickness of hard materials such as steel, glass & more
  • Ultrasonic probe records echo to determine highly accurate results
  • 4 different models available with features such as Bluetooth, Echo-to-Echo, Ultra Thin
More Info

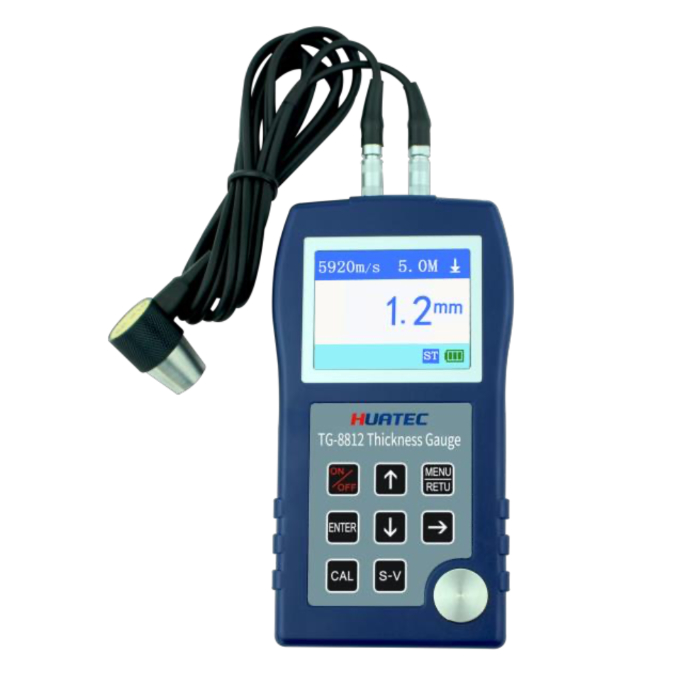

Huatec TG-8812 Ultrasonic Thickness Gauge

The Huatec TG-8812 Ultrasonic Thickness Gauge measures thickness & corrosion in pressure vessels, chemical containers, boilers, storage tanks and more in the oil, manufacturing and power generation sectors. This high-precision instrument uses an ultrasonic measurement principle, feeding ultrasonic sound waves into the material via a transmitter probe and measuring the time of the echo to obtain an accurate thickness measurement. This compact gauge adopts a high-speed processor & integrated chip design to realise nondestructive, portable measurements of thickness and sound velocity in a multitude of materials.

Suitable For Various Materials

  • Steel
  • Glass
  • Metal
  • Plastics
  • ABS
  • Ductile Iron
  • PVC
  • And more...

With a high measurement accuracy and wide measurement range, the Huatec TG-8812 includes separate modes (dependant on model) and optional automatic shutdown. The convenient and simple characteristics of this Thickness Gauge include a large capacity humanised data storage mode capable of mass storage which can save data in incremental groups.

Featuring a 2.3 inch colour screen, the easy to carry TG-8812 Ultrasonic Thickness Gauge is suitable for on-site inspections. The backlit LCD display is combined with a simple push-button interface and easy calibration options. The instrument is supplied with an ultrasonic probe / transducer, glycerin bottle and carry case.

Different Models Available

The four different models of the Huatec TG-8812 Ultrasonic Thickness Gauge include several notable differences, for example the TG-8812L and TG-8812D both feature an interconnection data transmission function. The TG-8812L has an option for an Ultra-thin mode for high-precision large range measurements whilst the TG-8812D has a built-in Penetration mode (Echo-Echo) for special penetrating types. With measuring ranges, display resolutions and more differing across the series, please consult the below table for exact specifications.

Model TG-8812N TG-8812C TG-8812L TG-8812D
Measuring Range (Standard) 0.9 to 300mm 0.75 to 400mm 0.55 to 500mm 0.75 to 500mm
Standard mode 0.9 to 300mm Probe: 5PΦ10mm 0.75 to 400mm Probe: 5PΦ10mm 0.75 to 500m Probe: 5PΦ10mm 0.75 to 500m Probe: 5PΦ10mm
Ultra-thin mode - - (0.55 to 1)mm -
Penetration mode (Echo-Echo) - - - 2.5-25mm (steel)
Bluetooth Connection - - Yes Yes
Display Resolution 0.1mm 0.01mm 0.01mm 0.01mm
Measurement Accuracy ±(1%H+0.1)mm ±(1%H+0.1)mm ±(0.5%H+0.05)mm ±(0.5%H+0.05)mm
Material Velocity 1000 to 9999m/s
Bandwidth 1MHz to 10MHz (-3dB)
Power Supply 4.5VDC (three AAA batteries)
Screen TFT Color screen 2.3 inch
Size 130 (L) × 70 (W) × 25 (H)mm
Weight 125g (excluding batteries)
Work Temperature -10 to +50°C (with high temperature probe, up to 300°C)
Work Humidity 20% to 90%RH

Key Features

  • Ultrasonic thickness measurement
  • Suitable for a wide range of materials
  • Designed for the oil, manufacturing & power generation sectors
  • Features a high-speed processor & integrated chip design
  • Takes non-destructive measurements
  • Different models built to fulfil specific needs
  • Portable, handheld design
  • Backlit digital screen
  • Large storage capacity
  • Manual or auto-off
  • One-year warranty

Huatec TG-8812 Ultrasonic Thickness Gauge

The Huatec TG-8812 Ultrasonic Thickness Gauge measures thickness and corrosion in pressure vessels, chemical containers, boilers, storage tanks and more in the oil, manufacturing and power generation sectors. It can measure the thickness of any hard material - including steel, glass and PVC - from 1,2mm to 225mm with a resolution of 0.1mm and an accuracy of ±(0.5% + 0.1mm).

Thickness is gauged through the Huatec TG-8812’s ultrasonic technology whereby the transmitter probe feeds ultrasonic sound waves into the material and measures the time of the echo in order to gain an accurate picture of the thickness of the material.

Results are shown on the Huatec TG-8112’s backlit digital display and operation is undertaken via a simple push-button interface. The instrument is supplied with an ultrasonic probe / transducer, glycerin bottle and carry case.

Huatec part number: TG-8812

Key Features

  • Ultrasonic thickness measurement
  • Suitable for hard materials
  • Thickness range: 1.2mm to 225mm
  • Thickness resolution: 0.1mm
  • Thickness accuracy: ±(0.5% + 0.1mm)
  • Backlit digital screen
  • One-year warranty

What's In The Box?

  • Your choice of Huatec TG-8812 Ultrasonic Thickness Guage
  • Transducer
  • Bottle of Couplant gel
  • Hard carry case
  • Instruction manual
  • Certificate of test
Specification
  • Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch
  • Operating principle: ULTRASONIC
  • Materials measured: Any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
  • Sound velocity: 500-9000m/s
  • Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
  • Display: 4 digits LCD with EL backlight
  • Resolution: 0.1mm
  • Accuracy: ±(0.5%H+0.1)
  • Power supply: 4 x 1.5V AA (UM-3) batteries
  • Battery indicator: Low battery indicator
  • Operating conditions: 0 to +45℃( 32℉-104℉), ≤90%RH
  • Dimensions: 120x62x30mm
  • Weight: 164g (not including battery)
