Ideal NaviTEK NT Plus Copper Network Tester - R151005

Be the first to review this product

  • Port identification, VLAN detection and Network scan
  • Compatible with IDEAL AnyWARE Mobile App
  • Now features a responsive colour touchscreen

rrp £727.00

now £655.00 (Ex. VAT) £786.00 (Inc. VAT)

rrp £727.00


Please select a free gift below.

  • Description

    Ideal NaviTEK NT Plus Copper Network Tester - R151005

    Helping network technicians to pinpoint and solve network connectivity issues quicker than ever, the Ideal NaviTEK NT Plus Copper Network Tester is perfect for troubleshooting or maintenance of active and passive copper networks.

    As with the base model, the NaviTEK NT Plus displays network configuration (IPv4 /IPv6 compatible) while providing an advanced wiremap to help identify miswires, split pairs, opens and shorts. It also boasts Distance to opens and shorts (TDR), PoE/PoE+ detection, tone generator for cable tracing, Ping and Traceroute testing, Hub blink for port identification, DHCP client and Switch detection (10/100/1000 Mb).

    In addition to all the features of the standard model, the NaviTEK NT Plus offers a network probe (giving detailed port and network information of each device) and a variety of other functions, including Port identification using EtesDP/CDP/LLDP protocols, VLAN detection and support, Network scanning, an auto test button to perform a suite of network tests and a traffic utilisation bar graph to aid in analysis.

    Capable of generating test reports in either PDF or CSV format, the Ideal NaviTEK NT Plus is compatible with the free IDEAL AnyWARE app whilst also providing internal memory capable of storing 5000 test reports. Operation is conducted using the new touchscreen feature for added practicality.

    Ideal part number: R151005

    Ideal NaviTEK NT Plus Key Features

    All the features of the NaviTEK NT in addition to the following:

    • Autotest button performs a suite of network tests
    • Network Probe provides detailed port and network information of each device
    • Port identification using EDP/CDP/LLDP protocols
    • VLAN detection and support
    • Network scan
    • Traffic utilisation bar graph
    • Internal memory for 5000 test reports
    • Generate test reports (PDF or CSV)
    • Sent test reports from your mobile device using the free IDEAL AnyWARE App
    • NaviTEK NT Pro also available
      NaviTEK NT (R153001) NaviTEK NT Plus (R151005) NaviTEK NT Pro (R151006)
    Copper cable testing
    Fibre optic interface
    Advanced wiremaps
    Cable tracing
    Port identification
    VLAN detection
    Test report generation
    Internal memory
    Wireless communication to Ideal Anyware App


    Available Accessories

    • 150050 Remote #2 - #12 £247

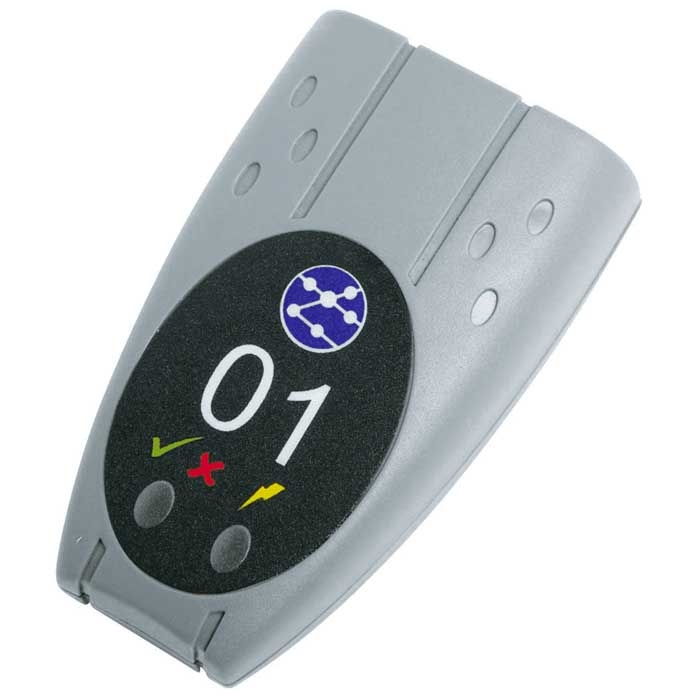

    • 150054 Active Remote # 1 for LanXPLORER, NaviTEK NT and SignalTEK NT £26.25

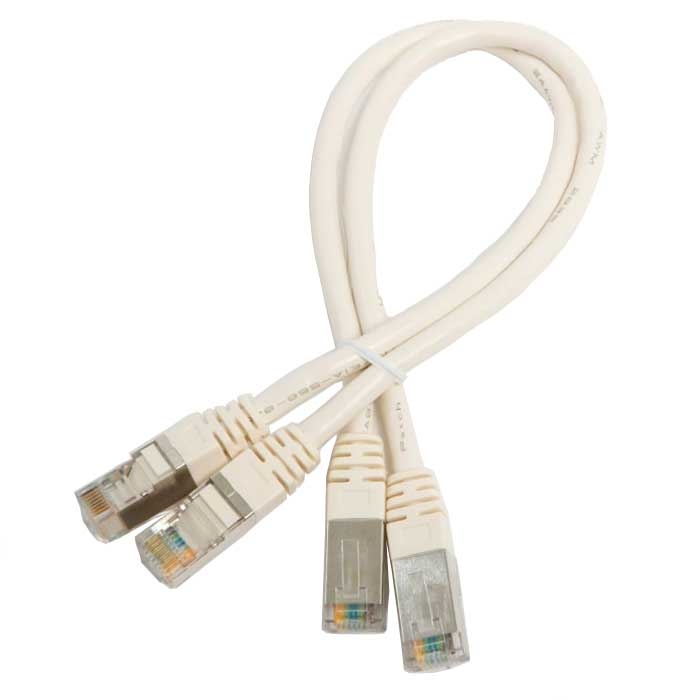

    • 150055 RJ45 Patch Cable Kit - 2 x Patch Cables. 30cm Cat. 5e STP £5.75
    • 150056 2m duplex multimode patch cable LC to LC £13.25
    • 150057 2m duplex singlemode patch cable LC to LC £20.75

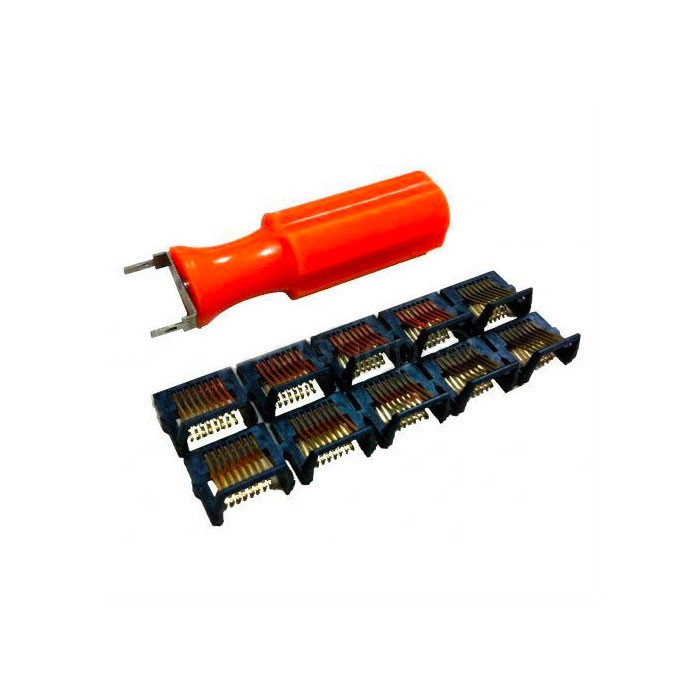

    • 150058 RJ45 inserts and tool: Pack of 10 Replacement Samtec LifeJack inserts with Samtec LifeJack tool £66

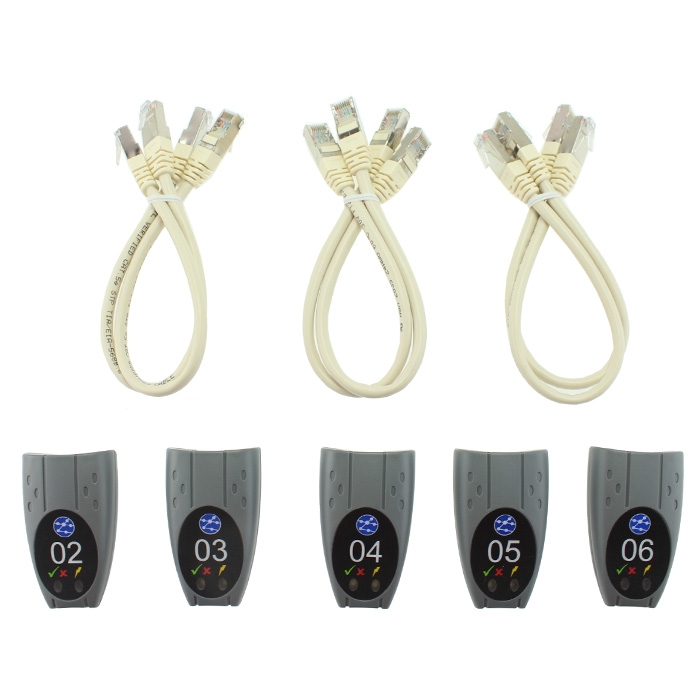

    • 150059 Remotes Half Kit: Set of five active remotes #2 to #6 incl 6 cables for LanXPLORER, NaviTEK NT and SignalTEK NT £123
    • 151051 Mains adapter and battery charger 110/220V AC to 12V DC 2.5A with UK, Euro and US adaptors £15.50
    • 151052 Battery module for NaviTEK NT and SignalTEK NT including 4 x Alkaline non-rechargeable cells £36.75
    • 151053 Rechargeable NiMH Power Module for NaviTEK NT and SignalTEK NT £51.50
    • 151054 Carry Case for NaviTEK NT £36.75

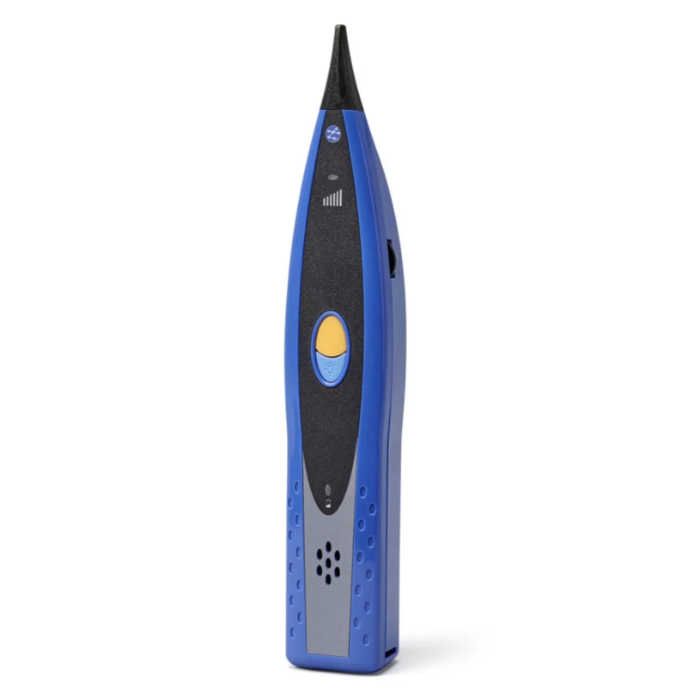

    • 62-164 Amplifier Probe £51
    • MGKLX2 GbE Fibre Kit LX: 1000BASE-LX Fibre Kit. Includes 1310nm SFP Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex singlemode cables and SC/SC duplex adaptor £159
    • MGKSX1 GbE Fibre Kit SX: 1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode cables and SC/SC duplex adaptor £129
    • MGKZX3 GbE Fibre Kit ZX: 1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex singlemode cables and SC/SC duplex adaptor £426

    To order any of these accessories, please contact us.

    Please Note: Prices exclude VAT.

  • Specification

    • Max. No. of Jobs: 50
    • Max. No. of Stored Test: 5000
    • Max. Length: 181 m/593 ft.
    • Battery Life: 5 hours
    • Dimensions per handset in mm: 175 x 80 x 40
    • Weight per handset: 0.4 kg
  • Supplied Accessories

    • NaviTEK NT Plus Test unit
    • NaviTEK NT Remote unit No. 1
    • Rechargeable power module
    • PSU EU/UK/US adapters
    • 2x Patch cables - 30cm, Cat. 5e STP
    • USB Wi-Fi adapter
    • Quick reference guide
    • Carry case
