Ideal NaviTEK NT Pro Copper and Fibre Network Tester - R151006

Be the first to review this product

  • Fibre optic cable interface, Optical interface with power indication
  • Logon using the 802.1x protocol, IDEAL AnyWARE Mobile App Compatible
  • Now upgraded to feature touchscreen operation

rrp £968.00

now £845.00 (Ex. VAT) £1,014.00 (Inc. VAT)

rrp £968.00

OR

Please select a free gift below.

  • Description

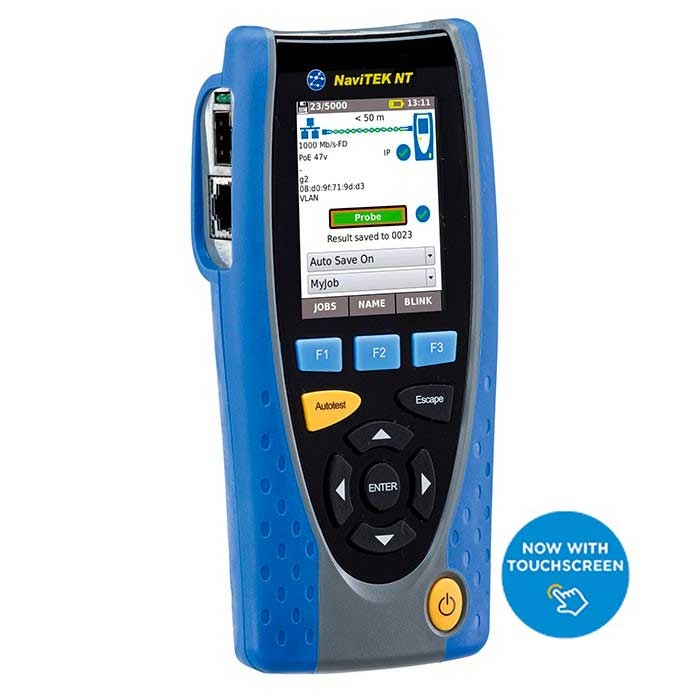

    Ideal NaviTEK NT Pro Copper and Fibre Network Tester with Touchscreen - R151006

    The Ideal NaviTEK NT Pro Copper Network Tester is built for technicians who require rapid detection and fixes for network connectivity issues quicker than ever before. This device uses an intuitive graphical interface for performing maintenance and troubleshooting on both copper and fibre networks.

    With its ergonomic design the handheld Ideal NaviTEK NT Plus Tester boasts a huge range of testing tools such as advanced wiretaps which identify split pairs, miswires, opens and shorts (TDR) while all network configuration features are compatible with IPv4 & IPv6. Exclusive to the Pro model is the ability to interface with fibre optic cables, logon using the 802.1x protocol, an optical interface with power indication and loopback mode transmission testing on both fibre and copper networks.

    With port identification using EDP/CDP/LLDP protocols, PoE/PoE+ detection and load tests the NaviTEK NT Pro provides the operator with a far more advanced suite of practical features compared to its more basic model counterparts. A tone generator for cable tracing is included alongside a traffic utilisation bar graph, real time display of network traffic, DHCP client, Ping & Traceroute testing in network mode and Switch detection (10/100/1000 Mb).

    The Ideal NaviTEK NT Pro is fully capable of generating test reports in either PDF or CSV format using the free IDEAL AnyWARE app. Complete with an internal memory capable of storing 5000 test reports, testing operation is conducted using the bright backlit screen. For the Plus and Pro models the display has the added benefit of being a touchscreen for further practicality.

    The rugged build of the lightweight NaviTEK NT Plus has a five hour battery life and built-in resistance to virus or malware attacks. The IDEAL tester is supplied with user-exchangeable RJ45 inserts and support for up to 12 wiremap remotes.

    Advanced Troubleshooting

    The Ideal NaviTEK NT Pro Tester boasts an array of impressive additional tools for further functionality:

    • Port & network summary - Enabled via the Autotest button, the screen will display essential summary information for detailed inspection of network parameters.
    • CDP/LLDP/EDP port information - Port identification is accomplished using Extreme Discovery Protocol (EDP), Cisco Discovery Protocol (CDP) & Link Layer Protocol (LLDP).
    • VLAN detection & operation - Easily configure the tester for a VLAN due to the tester automatically detecting VLAN IDs.
    • Custom wiretap - For common Ethernet cable types and non-ethernet types including PROFINET and ISDN, a list of wiremap templates are provided.
    • Netscan - Display a list of all IP and MAC adresses connected to the network.
    • Network probe - Verify the test results of each network component via a network illustration which is displayed on screen.

    NaviTEK NT Pro Model exclusives:

    • A fibre optic cable interface.
    • Logon using the 802.1x protocol.
    • An optical interface with power indication and supported SFP.
    • Loopback mode enabling transmission testing on both fibre and copper interfaces.

    Key Features

    • For testing copper cabling and fibre networks
    • Displays network configuration - IPv4 /IPv6 compatible
    • Features advanced wiremap for split pairs, miswires, opens and shorts
    • Clear indication given of distance to opens and shorts (TDR)
    • Included autotest button performs a suite of network tests
    • Network Probe with enhanced port and network information
    • PoE/PoE+ detection & load test
    • VLAN detection and support incorporated
    • Incorporates a Network scan function
    • Traffic utilisation bar graph
    • A tone generator for cable tracing
    • Ping and Traceroute testing function
    • Port identification using EDP/CDP/LLDP protocols
    • DHCP client & Switch detection - 10/100/1000 Mb/s
    • Supplied with user-exchangeable RJ45 inserts
    • Support for up to 12 wiremap remotes
    • Internal memory for 5000 test reports
    • IDEAL AnyWARE app free for both iOS & Android users
    • Generate PDF or CSV test reports
    • Backlit colour touch screen

    Ideal Networks part number: R151006

    Other Models Available

    For a more affordable option, also available are the NaviTEK NT and the NaviTEK NT Plus.

     NaviTEK NT (R153001)NaviTEK NT Plus (R151005)NaviTEK NT Pro (R151006)
    Copper cable testing
    Display network configuration
    IPv4 / IPv6 compatible
    Advanced wiremaps
    Tone generator for cable tracing
    PoE / PoE+ detection
    Port identification Hub blink Using EDP / CDP / LLDP Protocols Using EDP / CDP / LLDP Protocols
    DHCP client
    Switch detection
    10/100/1000 Mb/s
    User-exchangeable RJ45 inserts
    Support for up to
    12 wiremap remotes
    Backlit colour screen
    Touchscreen
    Custom wiremap
    Autotest button for network tests
    Network Probe (NET TEST)
    VLAN detection and support
    Network scan
    PoE/PoE+ load test
    Traffic utilisation bar graph
    Internal memory   5000 test reports 5000 test reports
    Generate test reports (PDF or CSV)
    IDEAL AnyWARE mobile app
    Fibre optic cable interface
    Logon using the 802.1x protocol
    Optical power level
    and pass/fail indication
    with supported SFP

    Loopback mode for
    transmission testing on both
    copper and fibre interfaces






    Available Accessories

    • 150050 Remote #2 - #12 £247
    • 150054 Active Remote # 1 for LanXPLORER, NaviTEK NT and SignalTEK NT £26.25
    • 150055 RJ45 Patch Cable Kit - 2 x Patch Cables. 30cm Cat. 5e STP £5.75
    • 150056 2m duplex multimode patch cable LC to LC £13.25
    • 150057 2m duplex singlemode patch cable LC to LC £20.75
    • 150058 RJ45 inserts and tool: Pack of 10 Replacement Samtec LifeJack inserts with Samtec LifeJack tool £66
    • 150059 Remotes Half Kit: Set of five active remotes #2 to #6 incl 6 cables for LanXPLORER, NaviTEK NT and SignalTEK NT £123
    • 151051 Mains adapter and battery charger 110/220V AC to 12V DC 2.5A with UK, Euro and US adaptors £15.50
    • 151052 Battery module for NaviTEK NT and SignalTEK NT including 4 x Alkaline non-rechargeable cells £36.75
    • 151053 Rechargeable NiMH Power Module for NaviTEK NT and SignalTEK NT £51.50
    • 151054 Carry Case for NaviTEK NT £36.75
    • 62-164 Amplifier Probe £51
    • MGKLX2 GbE Fibre Kit LX: 1000BASE-LX Fibre Kit. Includes 1310nm SFP Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex singlemode cables and SC/SC duplex adaptor £159
    • MGKSX1 GbE Fibre Kit SX: 1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode cables and SC/SC duplex adaptor £129
    • MGKZX3 GbE Fibre Kit ZX: 1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex singlemode cables and SC/SC duplex adaptor £426

    To order any of these accessories, please contact us.

    Please Note: Prices exclude VAT.

  • Specification

    • Max. No. of Jobs: 50
    • Max. No. of Stored Test: 5000
    • Max. Length: 181 m/593 ft.
    • Battery Life: 5 hours
    • Dimensions per handset in mm: 175 x 80 x 40
    • Weight per handset: 0.4 kg
  • Supplied Accessories

    • NaviTEK NT Pro Test unit
    • NaviTEK NT Remote unit No. 1
    • Rechargeable power module
    • PSU EU/UK/US adapters
    • 2x Patch cables - 30cm, Cat. 5e STP
    • USB Wi-Fi adapter
    • Quick reference guide
    • Carry case
  • Product Documents

    Product Attachments

    View FileIdeal NaviTEK NT Datasheet    Size: (1.91 MB)
