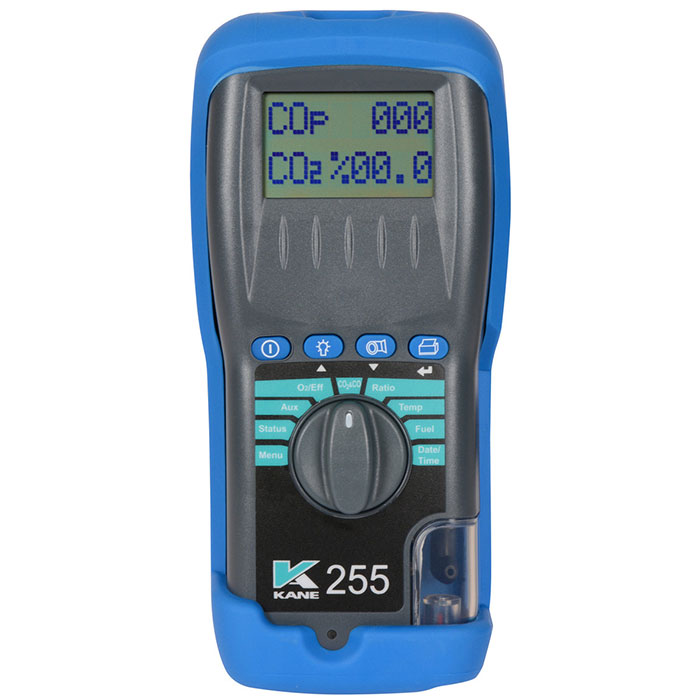

Kane 255 Combustion Flue Gas Analyser

Kane
SKU: KANE255
  • Offers direct CO2, CO and temperature measurement
  • Capable of calculating CO2, CO/CO2 ration and efficiency
  • Ideal for natural gas, propane, butane, LPG, light oil or wood pellet burning appliances
More Info
Discontinued

Kane 255 Combustion Flue Gas Analyser

This product has been discontinued and replaced by the Kane 258 Combustion Flue Gas Analyser.

Offering direct CO2 measurement, the Kane 255 Combustion Flue Gas Analyser is the ideal instrument for engineers who install or service oil or gas boilers.

Capable of measuring CO, CO2 and temperature, the Kane 255 Combustion Flue Gas Analyser can calculate O2, CO/CO2 ratio and efficiency whilst suitable for any appliance burning natural gas, propane, butane, LPG, light oils or wood pellets.

Boasting an easy-to-use rotary switch and detachable flue probe, the Kane 255 combustion analyser is a versatile tool that offers low cost ownership and a six-year extended warranty when serviced annually by Kane.

With an internal memory for 20 sets of test results, the KANE255 also provides data hold functionality, “long life” sensors and an infrared output for an optional printer, making it a comprehensive package.

What's In The Box?

  • KANE255 Combustion Flue Gas Analyser
  • Charger
  • Batteries
  • KMCP2
  • Test report
  • Manual
Specification

Flue Temperature

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Inlet Temperature (Internal Sensor)

  • Range: 0-50°C
  • Resolution: 0.1°C
  • Accuracy: ±1°C, ±0.3% reading

Inlet Temperature (External Sensor)

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Oxygen (Using dry gases at STP)

  • Range: 0.21%
  • Resolution: 0.1%
  • Accuracy: ±0.3%

Carbon Monoxide (H2 compensated)

  • Range: 0-20ppm (1), 21-2,000ppm nom (2) and 4,000ppm max for 15 mins (3)
  • Resolution: 1ppm
  • Accuracy: ±0.3ppm (1), ±3ppm (2) and ±5% of reading (3)

Carbon Dioxide (Using dry gases at STP)

  • Range: 0-20%
  • Resolution: 0.1%
  • Accuracy: ±0.3% volume

Calculated Efficiency (Net or Gross)

  • Range: 0-99.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Efficiency High (C)

  • Range: 0-119.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Excess Air

  • Range: 0-250%
  • Resolution: 0.1%
  • Accuracy: ±0.2% reading

Calculated CO/CO2 ratio

  • Range: 0-0.999
  • Resolution: 0.0001
  • Accuracy: ±5% reading

General

  • Pre-programme fuels: Natural gas, Light Oil, Propane, Butane, LPG, Wood Pellets.
  • Weight: 1kg / 2.2lb
  • Handset Dimensions: 200mm / 7.9" x 45mm / 1.8" x 90mm / 3.5"
  • Probe Dimensions: L300mm / 11.8" x Dia 6mm / 0.25" with 200mm / 7.8" long stainless steel shaft, type K thermocouple and 3m / 6ft long neoprene hose
  • Ambient Operating Range: ±0°C to ±40°C / 32-104°F, 10% to 90% RH non-condensing
  • Storage Capacity: 20 sets of test results in volatile memory
  • Battery Life: 4AA cells > 8 hours using Alkaline AA cells
  • Charger (optional): 110Vac/220 Vac nominal for NMiH batteries only, 12V in vehicle charger for NMiH batteries only
