Kane 458s Flue Gas Analyser Standard Kit

Be the first to review this product

  • Measure CO, CO2, differential temperature, pressure and more
  • Flue gas analyser with infrared printer and soft carry case
  • Upgradeable sensor with purge pump protection & wireless connectivity

rrp £609.00

now £569.00 (Ex. VAT) £682.80 (Inc. VAT)

rrp £609.00

OR

Please select a free gift below.

  • Description

    Kane 458s Flue Gas Analyser Standard Kit

    Black Friday Sale 2020: Discount available on this product (sale ends 1/12/20)
    **Please note that due to unusual high demand for the 458s the current lead time is approximately 2 weeks. Please call 0113 248 9966 to get a more exact delivery date**

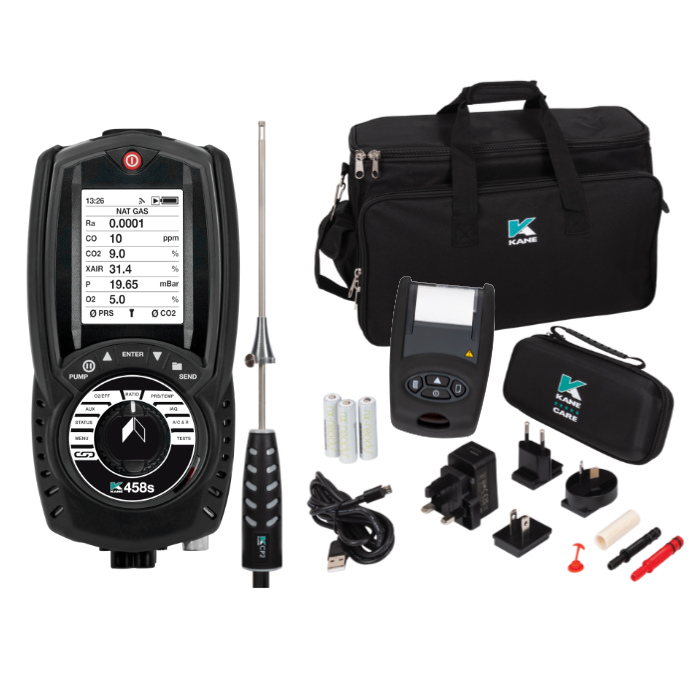

    The Kane 458s Flue Gas Analyser Standard Kit unites the professional Kane 458s with a Kane IRP-2 Infrared Printer and soft carry case. Directly measure combustion-related variables such as carbon monoxide concentration from 0 to 2000ppm, carbon dioxide content from 0% to 20%, differential temperature and is hydrogen (H2) ready (up to 20% blend). Perform tightness/let by testing by measuring differential pressure with this fully upgradeable flue gas analyser. The analyser’s calculation functions can capture a range of other performance indicators such as combustion efficiency, excess air, oxygen content, CO/CO2 ratio and includes wireless connectivity as standard.

    Incorporating an innovative purge system to protects the CO sensor from over ranging, the Kane 458s tests domestic gas, oil, biomass & some commercial appliances. According to the standard process of automatic boiler commissioning testing as explained in the Technical Bulletin 143, CO measurement is a crucial step. The 458s Flue Gas Analyser can measure ambient CO and rapidly determine the build-up of CO in a room. The included Kane IRP-2 printer in the standard kit allows the user to print instant hard copy reports, connected to the large six-line display of the analyser via infrared communication.

    The large rotary dial of the Kane 458s is tactile and easy to use and the flue gas analyser is compatible with a range of different fuel types including butane, natural gas, LPG, propane, 28 sec oil, 35 sec oil and wood pellets. The analyser and kit are supported by a 10 year warranty from Kane, several kit options are available for the Kane 458s as detailed below.

    Key Features

    • Carbon monoxide measurement - 0 to 20%
    • Carbon dioxide measurement - 0 to 2000ppm
    • Infrared Kane IRP-2 included
    • Analyser includes wireless communication
    • Differential pressure and temperature measurement
    • Hydrogen (H2) ready up to 20% blend
    • Calculate oxygen content
    • Calculate excess air
    • Calculate CO/CO2 ratio
    • Efficiency calculation
    • Let by/tightness testing
    • Automatic commissioning test sequence on boilers
    • Protects CO sensor from over range with purge pump system
    • Suitable for wide range of fuels
    • Kane 10 Year Warranty
    Kane 458s 10 Year Warranty

    Kane part number: 458S Kit

     Standalone AnalyserStandard KitPRO KitCPA1 KitOil Kit
    Kane 458s Flue Gas Analyser
    Wireless Connectivity
    Probe
    Pressure Connectors
    CO Sensor Purge Pump Protection
    KANE IRP-2 Infra-red printer
    Air/liquid temperature probe
    GLD450 Plus Gas Leak Detector
    Pipe Clamp Temperature Probes - - 2 2
    Pressure connection hose
    ASP2 Appliance Sampling Probe Kit
    Oil pressure test set
    Calibration Report
    Carry Case

    Kane 458s & Kane 258 Analysers

    The Kane 458s Flue Gas Analyser is a formidable tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. The Kane 258 Combustion Flue Gas Analyser meanwhile is an ideal instrument ideal for servicing or installing oil or gas boilers, with less features than the 458s but more affordable.

     Kane 258KANE 458s

    Applications
    Combustion Performance Checks Yes Yes
    Combustion Efficiency Checks Yes Yes
    CO safety checks - Yes
    Flue Draughts - Yes

    Measures
    CO 0 - 2,000pm Yes Yes
    O2 0 - 21% Yes Yes (option)
    Differential Temperature - Yes
    CO2 direct with an Infra-Red sensor 0 - 20% - Yes
    Differential pressure meter +/- 80mbrar - Yes
    NO 0 - 600ppm - Yes (option)
    CO 0 - 10,000ppm - Yes (option)

    Calculates
    CO2 0 - 20% Yes Yes
    CO / CO2 ratio Yes Yes
    Excess Air Yes Yes
    Combustion Efficiency Yes Yes
    O2 - Yes

    Contents
    Analyser Yes Yes
    Probe Yes Yes
    USB Charger Yes Yes
    IRP-2 Infrared Printer Yes (option) Yes (option)
    Carry Bag Yes (option) Yes (option)
    Pressure Connectors - Yes
    Air / Liquid temperature probe - Yes (option)
    GLD450 Plus Gas Leak Detector - Yes (option)
    Pipe Clamp Temperature Probes - Yes (option)
    Pressure Connection hose - Yes (option)
    ASP2 Appliance Sampling Probe Kit - Yes (option)
    Oil Pressure test set - Yes (option)

    Standalone Analyser £296.10 (ex. VAT) £494.10 (ex. VAT)
  • Supplied Accessories

    • Kane 458s Flue Gas Analyser
    • Probe
    • Pressure connectors
    • USB Charger
    • Quick reference guide & analyser calibration certificate
    • KANE IRP-2 Infra-red printer
    • Carry bag
  • Product Documents

    Product Attachments

    View FileKane 458s Quick Reference Guide    Size: (976.53 KB)
