Keller LEO5 (31bar) Digital Manometer

Keller
SKU: KELL303040.XX
  • Absolute pressure range of 0 to 31bar and temperature range of 0 to 50˚C
  • 56,000-reading internal memory, downloadable via a USB port
  • Peak mode captures highest reading at 5kHz sampling rate
More Info
Current lead time 6-8 weeks

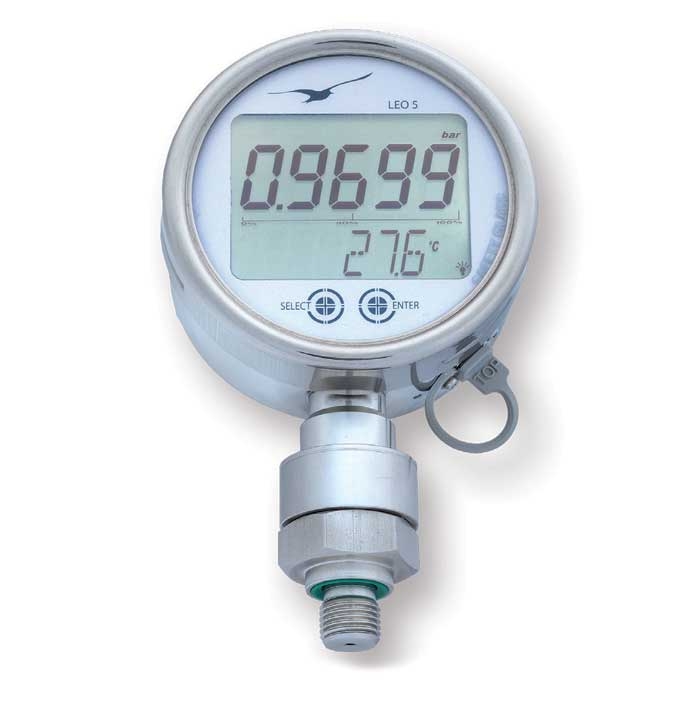

Keller LEO5 Digital Manometer (31bar)

The Keller LEO5 Digital Manometer is capable of measuring both absolute pressure (0 to 31bar) and relative pressure (-1bar to 30bar) with accuracy of ±0.05% and a resolution of 10mbar. It has a G 1/4” male pressure connector and is also capable of measuring temperature from 0˚C to 50˚C with ±1˚C accuracy.

Both temperature and pressure readings are shown concurrently on the Keller LEO5’s clear digital screen. The ‘peak’ capture mode takes 5000 readings per second and records the highest pressure alongside the current reading. Min/max and zero functions are available and the manometer also produces an analogue voltage or current signal alongside digital readouts.

The large 56,000-reading internal memory stores measurements with a time stamp and can be downloaded to a PC via the USB port. This can also be used to configure and recharge the monitor.

The Keller LEO5 benefits from stainless steel casing and a sealed safety glass front that give it an IP66 ingress protection rating. It is powered by a rechargeable battery that allows up to 1600 hours’ operation when it is fully charged.

Keller part number: 303040.xxxx

Key Features

  • Absolute pressure: 0 to 31bar
  • Relative pressure: -1 to 30bar
  • Pressure accuracy: ±0.05% FS
  • Pressure resolution: 10mbar
  • Temperature: 0 to 50˚C
  • Temperature accuracy: ±1˚C
  • Analogue current/voltage output
  • Digital readout on screen
  • Peak capture mode with 5kHz measurement rate
  • 56,000-reading internal memory
  • USB port for download and configuration
  • Stainless steel, glass enclosure for IP66-rated enclosure
  ECO2 LEO1 LEO2 LEO3 LEO5 LEO Record LEX1
-1 to 3bar   ✔ ✔ ✔ ✔ ✔ ✔
-1 to 31bar ✔ ✔ ✔ ✔ ✔ ✔ ✔
0 to 100bar         ✔
0 to 300bar ✔ ✔ ✔ ✔ ✔ ✔ ✔
0 to 400bar             ✔
0 to 700bar   ✔ ✔ ✔ ✔ ✔
0 to 1000bar   ✔   ✔   ✔ ✔
Accuracy ±0.5% FS ±0.1% FS ±0.1% FS ±0.1% FS ±0.05% FS ±0.1% ±0.05% FS
Resolution
(at smallest range)		 10mbar 1mbar 1mbar 1mbar 1mbar 1mbar 0.1mbar
Temperature range         0˚C to 50˚C
Temperature accuracy         ±1˚C
Intrinsically safe
version		 ✔ ✔ ✔   ✔ ✔
Peak mode   ✔     ✔
Pressure connector 7/16" UNF G 1/4" 7/16" UNF G 1/4" G 1/4" G 1/4" G 1/4"
Analogue output       ✔ ✔
Internal memory         ✔ ✔ ✔
Data port       RS485 Binder USB RS485 Fischer RS485 Fischer
Compatible with
Keller-Bus protocol		       ✔ ✔   ✔
Specification
  • Relative pressure range: -1 to 30bar
  • Absolute pressure range: 0 to 31bar
  • Pressure resolution: 10mbar
  • Overpressure: 60bar
  • LCD number of digits upper/lower: 5 (7 segments) / 5 (14 segments)
  • Accuracy: 0.05% FS (incl. linearity, repeatability, and hysteresis)
  • Total error band (0…50˚C): 0.1% FS (accuracy incl. temperature error)
  • Precision: Optional for ≥20bar: 0.025% FS or 0.01% FS
  • Storage temperature: -10˚C to 60˚C
  • Operating temperature: 0˚C to 50˚C
  • Data storage: >56,000 readings with timestamp
  • Long term stability: 1mbar or 0.05% FS for reference; 0.5mbar or 0.025% FS for absolute
  • Compensated temperature range: 0˚C to 50˚C
  • Temperature measurement accuracy: ±1˚C
  • Accumulator: Lithium-Ion 4.2V / 1.6 Ah
  • Accumulator run time: Standard mode, 1600 hours; peak mode, 160 hours
  • Accumulator charge cycles: >300 hours
  • Pressure connection: G ¼”
  • Interface / plug type: USB / mini USB
  • Dimensions: 76mm x 118mm x 42mm
  • Weight: 340g approx.
  • Protection: IP66
Label Type Size Download
pdf Keller LEO5 Datasheet pdf 549.6 KB Download
