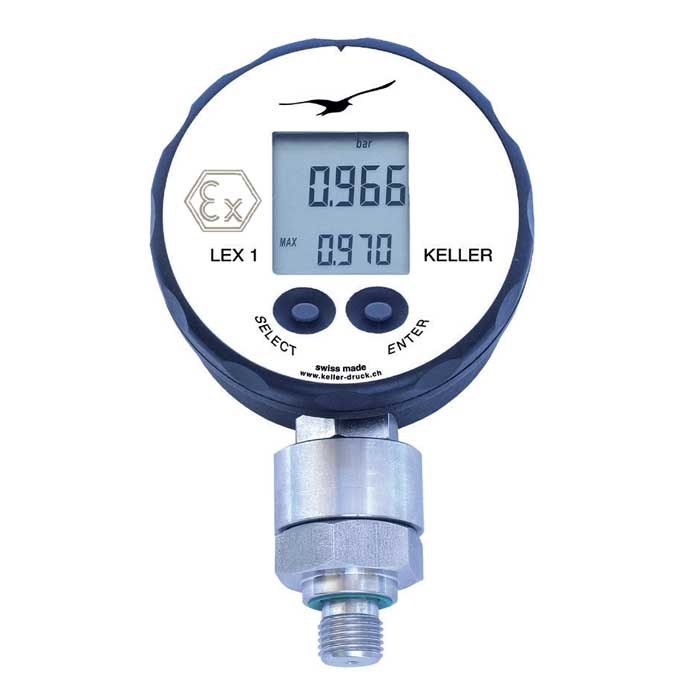

Keller LEX1 Ei Intrinsically Safe Digital Manometer (1000bar)

The Keller LEX1 Ei Intrinsically Safe Digital Manometer has an extended absolute pressure range of 0bar to 1000bar with resolution of 100mbar and accuracy of ±0.05% FS. This makes it suitable for calibration, laboratory, and specialist industrial applications. It has a piezoresistive pressure transducer and a G1/4” male pressure connection.

The Keller LEX1 Ei is certified as intrinsically safe and can therefore be safely used in hazardous environments such as mines, oil rigs and pharmaceutical factories. It has certification files PTB 05 ATEX 2012 X and IECEx PTB 13.0028 X and is classified as Zone 1: Ex II 2 G and Ex ia IIC T6 Gb.

The pressure gauge offers a number of different units of pressure and displays readings on its clear digital screen. It has a digital calibration function with a zero and end point in addition to a zero function and min/max recording.

The RS485 Fischer data connection on the Keller LEX1 Ei allows the gauge to work as part of a wider monitoring system, although an optional Keller K114A Cable Adaptor is required to use this function. Free Keller CCS30 software can be used to coordinate a Keller-Bus protocol with up to 128 temperature and pressure instruments.

Keller part number: 303030.2006

Key Features

Certified intrinsically safe
Absolute pressure range: 0 to 1000bar
Resolution: 100mbar
Accuracy: ±0.05% FS
G ¼” male pressure connector
Oil-filled metallic housing
Piezoresistive pressure transducer
Data connection for forming part of monitoring system
Digital calibration feature
Suitable for laboratory and calibration use

	ECO2	LEO1	LEO2	LEO3	LEO5	LEO Record	LEX1
-1 to 3bar		✔	✔	✔	✔	✔	✔
-1 to 30bar	✔	✔	✔	✔	✔	✔	✔
0 to 100bar					✔
0 to 300bar	✔	✔	✔	✔	✔	✔	✔
0 to 400bar							✔
0 to 700bar		✔	✔	✔	✔	✔
0 to 1000bar		✔		✔		✔	✔
Accuracy	±0.5% FS	±0.1% FS	±0.1% FS	±0.1% FS	±0.05% FS	±0.1%	±0.05% FS
Resolution(at smallest range)	10mbar	1mbar	1mbar	1mbar	1mbar	1mbar	0.1mbar
Temperature range					0˚C to 50˚C
Temperature accuracy					±1˚C
Intrinsically safeversion	✔	✔	✔		✔	✔
Peak mode		✔			✔
Pressure connector	7/16" UNF	G 1/4"	7/16" UNF	G 1/4"	G 1/4"	G 1/4"	G 1/4"
Analogue output				✔	✔
Internal memory					✔	✔	✔
Data port				RS485 Binder	USB	RS485 Fischer	RS485 Fischer
Compatible withKeller-Bus protocol				✔	✔		✔

Intrinsically Safe Categorisation

Classification: Zone 1: Ex II 2 G Ex ia IIC T6 Gb
Certification files: PTB 05 ATEX 2012 X and IECEx PTB 13.0028 X

Performance

Absolute pressure range: 0 to 1000bar
Overpressure: 1100bar
Resolution: 100mbar
Accuracy @ RT (20˚C to 25˚C): ≤±0.05% FS. Nonlinearity (BFSL), pressure hysteresis, non-repeatability, zero point, amplification.
Total error band (0˚C to 50˚C): ≤±0.05% FS. Max. deviation within the specified pressure and temperature range.
Long-term stability: ±0.1% FS. > 1 bar, per year under reference conditions, yearly recalibration recommended.
Long-term stability: ±0.1mbar. ≤ 1 bar, per year under reference conditions, yearly recalibration recommended.
Degree of dependency on location: <±1.5mbar. Calibrated in vertical installation position with pressure connection facing downwards.
Accuracy of temperature measurement: ±1˚C typ.
Pressure range reserve: ±10%

Electrical Data

Battery: 3 V, type CR2430. LEX1 Ei only permitted for use in haz- ardous atmospheres when used with the Renata CR2430
Battery life: Approx. 2000 hours when used continuously
External power supply: 8...28 VDC
Overvoltage protection and reverse polarity of external power supply: ± 32 VDC
RS485 voltage insulation: -7...+12 VDC
GND case insulation: > 10 MΩ @ 50 VDC
External interface: RS485 half-duplex
Interface measuring rate: 30 measurements per second
Electrical connection: Fischer D 103 A054-130
CE conformity as per 2014/30/EU (EMC): EN 61000-6-1 to -6-4; EN 61326-1 / EN 61326-2-3

Temperature Range

Compensated temperature range: 0...50 °C
Media temperature: 0...50 °C
Ambient temperature: 0...50 °C
Storage temperature: -20...70 °C

Display

Dimensions/appearance: See Dimensions & options
Number of digits on LC display: 2 rows with 5 digits each
Display mode: Pressure + min/max or pressure + temperature
Measuring rate: 2 measurements per second
Configurable units of pressure: [bar], [mbar], [hPa], [kPa], [MPa], [PSI], [mH2O], [cmH2O], [inH2O], [ftH2O], [mmHg], [inHg], [kp/cm2]
Additional units of pressure: 5 user-defined units can be configured

Mechanical data
