Description

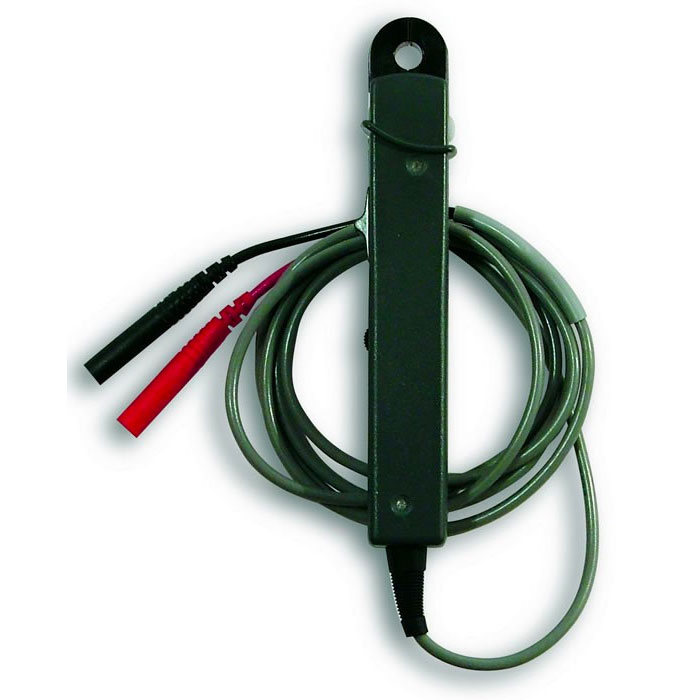

Kewtech Kew 8112 Clamp adapter
The Kewtech Kew 8112 Clamp adapter provides the easy solution to rapid and safe measurement of high values of current by extending the measuring capabilities of digital multimeters, oscilloscopes, chart recorders or any other instrument capable of reading a millivolt signal.
Kewtech Kew 8112 Key Features:
- Measures current from 0.1mA to 120A AC
- Maximum conductor diameter 8mm
- Extends the range of DMM's
- mV Output proportional to A input
- Responds to frequencies up to 10kHz
- Complies to IEC61010-1 CAT. II 100V pollution degree 2
- Often bought as a replacement for the obsolete Robin 8112 Clamp Adaptor
-
Specification
Range Measuring Range Output Range Accuracy Frequency 200mAAC 0~500mA AC1V/A) ±1.5%rdg ±0.2mA 50Hz~1lHz AC 0~1000mA (1000mA ‡ 1V ±3%rdg ±0.4mA 40Hz~10kHz 2A AC 0~20A AC100mV/A ± 1%rdg ±1mA 40Hz~1kHz (20A ‡ 2V) ±1.5%rdg ±2mA 1k~10kHz 20AAC 0~20A AC10mV/A ±1%rdg ±0.01A 40Hz~1kHz AC 20-60A (120A ‡ 1.2V) ±2.5%rdg 50Hz~10kHz Range AC 60~120A Output Range ±2.5%rdg 100Hz~10kHz
- Dimensions: 153(L) x 18(W) x 23(D) mm
- Weight: 100g approx
-
Supplied Accessories
- Carry case
- Instruction manual for Kewteck KEW 8112
- Certificate of conformity
-
