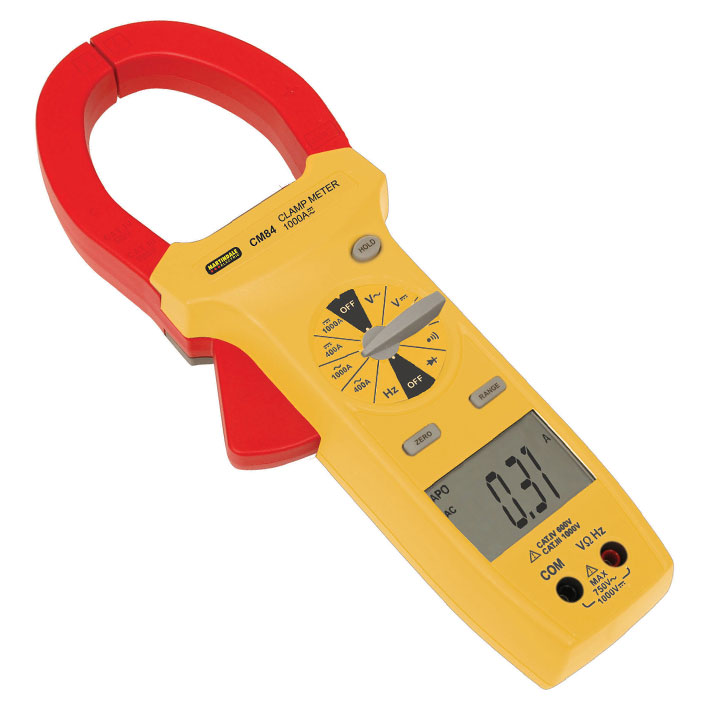

Martindale CM84 AC/DC Clamp Meter
The Martindale CM84 is a high specification clamp meter providing AC and DC current measurements up to 1000A along with AC/DC voltage to 750V. The Martindale CM84 also has a useful DC current zero function. The CM84 is still light enough for use in one hand while still being robust enough for use in harsh environments.
Martindale's CM84 measures unusually high voltage readings of up to 1000V DC and 750V AC which you would typically expect from a multimeter. Resistance to 40MΩ, frequency to 1MHz and continuity/diode testing are featured within this Martindale clamp meter.
The CM84 has a 57mm jaw size suitable for large cables and conductors. The safety rating of the Martindale CM84 is CAT IV 600V and CAT III 1000V.
DC Voltage Range Resolution Input Impedance Accuracy 400mV 0.1mV >100MΩ 0.5% + 2 4V 0.001V 10MΩ 40V 0.01V 9.1MΩ 400V 0.1V 1000V 1V AC Voltage Range Resolution Input Impedance Accuracy (50Hz to 500Hz) 400mV 0.1mV >100MΩ Not specified 4V 0.001V 10MΩ 1.5% + 5 40V 0.01V 9.1MΩ 400V 0.1V 750V 1V AC Current Range Resolution Accuracy
50Hz to 60Hz/60 to 400Hz
40A 0.01A 2.0% + 6
3.0% + 6
400A 0.1 1000A 1A 2.0% + 6 (≤600A)
2.5% + 6 (>600A)
3.0% + 6 (≤600A)
3.5% + 6 (>600A)
DC Current Range Resolution Accuracy 400A 0.1A 2.0% + 5 1000A 1A 2.0% + 5 (≤600A)
3.0% + 5 (>600A)
Resistance Range Resolution Open Circuit Voltage Accuracy 400Ω 0.1Ω -1.2V DC 1.0% + 5 4kΩ 0.001kΩ -0.45V DC 40kΩ 0.01kΩ 400kΩ 0.1kΩ 4MΩ 0.001MΩ 2.0% + 5 40MΩ 0.01MΩ 3.5% + 5 Capacitance Range Resolution Accuracy 4nF 0.001nF Not specified 40nF 0.01nF 400nF 0.1nF 4μF 0.001μF 3.0% + 15 40μF 0.01μF 3.0% + 10 400μF 0.1μF 4mF 0.001mF 5.0% + 10 Frequency Range Resolution Accuracy 4kHz 0.001kHz 0.1% + 3 40kHz 0.01kHz 400kHz 0.1kHz 1MHz 0.001MHz
- Martindale CM84 AC/DC Clamp Meter
- Carrying Case
- TL16 Test Leads
- 9V PP3 Battery
