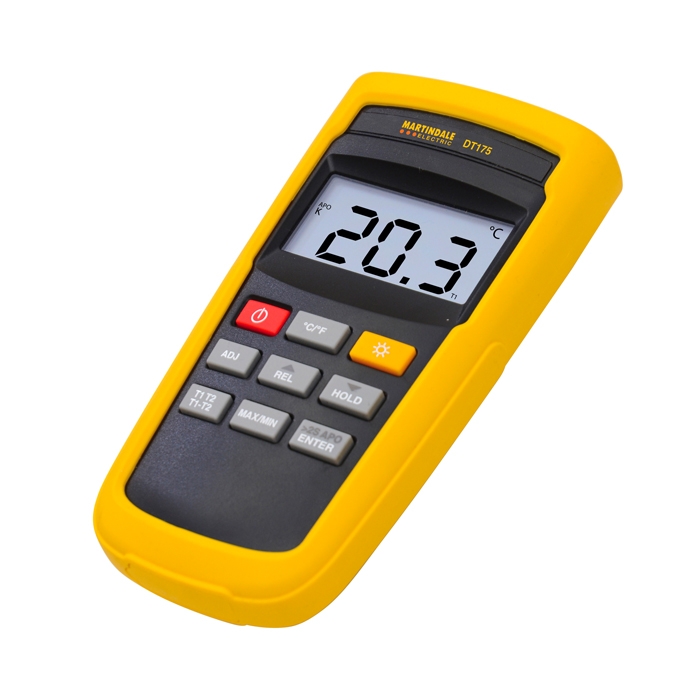

Martindale DT175 Dual-Channel Thermometer

SKU: MARTDT175
  • Temperature measurement from -200˚C to 1372˚C via type K thermocouples
  • Two supplied type K thermocouples enable differential measurement
  • Minimum, maximum and average readings on backlit digital display
More Info
In Stock - Available Next Day

Martindale DT175 Dual-Channel Thermometer

The Martindale DT175 Dual-Channel Thermometer is a high-performance temperature measurement instrument that can work with type K thermocouples. It is capable of measuring temperature in a variety of media with a basic accuracy of ±0.3% + 1˚C and a resolution of 0.1˚C / 1˚C. It is supplied with two thermocouples which have measurement ranges of 0 to 260˚C.

Differential measurement allows the user to see the difference between the input and output temperatures of various systems. Otherwise, the Martindale DT175 can check the real temperature from each probe and it is also possible to toggle between Celsius and Fahrenheit. The user has the option of min/max/average recording and performance is enhanced by the offset adjustment function. Results are shown on a backlit digital screen.

A stand is integrated into the Martindale DT175 for additional practicality and using the thermometer is easy thanks to the clearly-labelled buttons. Supplied accessories include two type K thermocouples, a protective holster, batteries and an instruction manual.

Martindale part number: MARDT175

Key Features

  • Differential pressure measurement
  • Maximum temperature range: -200˚C to 1372˚C
  • Temperature accuracy: ±1˚C
  • Temperature resolution: 0.1˚C / 1˚C
  • 2 x Type K probes supplied (0 to 260˚C)
  • Min/max/average recording
  • Measurement rate: 3 per second
  • 200-hour battery life

What's In The Box?

  • Martindale DT175 Single-Channel Thermometer
  • 2 x Type K Thermocouples
  • Protective holster
  • Battery
  • Manual for Martindale DT175
Specification

Display

  • 3.5” digit LCD with a maximum reading of 1999

Sampling Rate

  • 3 times per second

Resolution

  • Switchable between 1° / 0.1° and °C / °F

Electrical Measurement Range

  • -50°C to 1300°C (-58°F to 2000°F)
  • Measurement Accuracy

For operating temperatures of 18°C to 28°C (64°F to 82°F), for one year, not including thermocouple error.

  • -50°C to 1000°C: +/- 0.3% reading + 1°C
  • 1000 to 1300°C: +/- 0.5% reading + 1°C
  • -58°F to 2000°F: +/-0.3% reading +2°F

Supplied Probe

  • 4 foot, K-type thermocouple bead probe (teflon tape insulated)
  • Maximum insulation temperature 260°C (500°F)
  • Accuracy: + / - 2.2°C or + / - 0.75% of reading, whichever is greater, from 0° - 260C

General Specifications

  • Supply: 4 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A)
  • Dimensions: 147 x 70 x 39mm
  • Weight: 215g approx
  • Supplied with a K-Type bead thermocouple, protective holster, battery & manual
