Martindale ET5 Electrical Tester

SKU: MARTET5
  • AC / DC Current: 0.1A to 200A, AC / DC Voltage: 0.1mV to 600V
  • Resistance: 0.1Ω to 50MΩ
  • Frequency: 30Hz to 400Hz
More Info
In Stock - Available Next Day

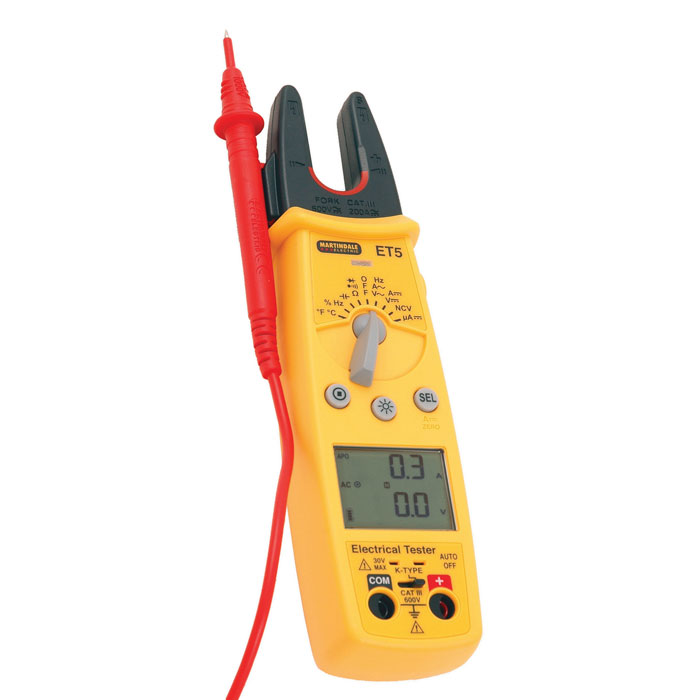

Martindale ET5 Electrical Tester

A compact electrical tester that measures AC/DC voltage, resistance and AC/DC current, the Martindale ET5 will also measure frequency, continuity and will take simultaneous measurement of current/voltage and frequency/voltage. Also functional as a non-contact voltage indicator, the electrical tester has auto ranging, display hold and auto power off functions.

The ET5 has additional features of capacitance, temperature and duty cycle. A K-type thermocouple is included which allows temperature measurements of -35°C to 500°C.

A powerful LED torch is included in one of the forks.

The ET5 is supplied with TL17 test leads, a soft carry case, 9V battery and manual.

Specification
  • AC / DC Current: 0.1A to 200A
  • AC / DC Voltage: 0.1mV to 600V
  • Resistance: 0.1Ω to 50MΩ
  • Frequency: 30Hz to 400Hz
  • Continuity: 0.1Ω to 500Ω, buzz at <30Ω
  • Diode Test:1mV - 2V
  • Non-Contact Voltage Indicator: 70V - 600V
  • Temperature Measuremtn: -35°C to +500°C
  • Duty Cycle
  • Capitance
  • Power: 9V PP3 Alkaline (Included)
  • Dimensions: 202 x 51 x 44mm
  • Weight: 200g (incl. battery)
