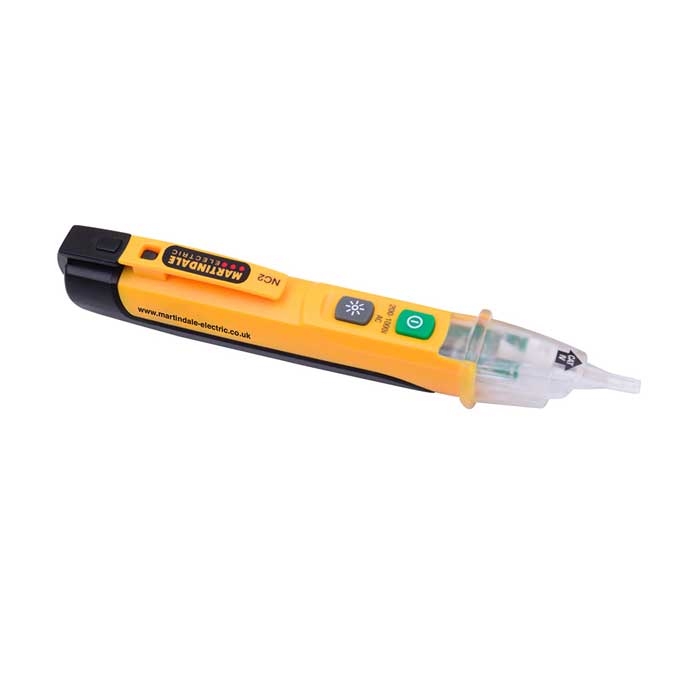

Martindale NC2 Non-Contact Voltage Detector

SKU: MARTNC2
  • Detects AC voltage from 200V to 1000V with frequencies of 50Hz to 400Hz
  • Optimised for 230V 50-60Hz domestic supplies
  • Identify live voltage in sockets and junction boxes
More Info
In Stock - Available Next Day

Martindale NC2 Non-Contact Voltage Detector

Martindale NC2

The Martindale NC2 Non-Contact Voltage Detector is an ergonomic voltage tester that is capable of detecting AC voltage from 200V to 1000V with a frequency of 40Hz to 400Hz. Detection is optimised for 230V 50-60Hz domestic systems. When voltage is detected, a clear red LED indication is shown and there is also an audible buzzer warning.

The extended tip of the Martindale NC2 makes it suitable for tricky or awkward spaces and it can detect voltage from a distance of 4mm. It is a useful instrument for tracing live circuits within cable containment and detecting voltage in sockets and junction boxes, for example when differentiating live and neutral wires and detecting blown fuses.

The Martindale NC2 has a handy, pen-shaped design with a clip that will fit on the user’s belt. It has a built-in torch and an over voltage category of Cat IV 1000V.

Martindale part number: MARNC2

Key Features

  • Detection range: 200V to 1000V
  • Frequency range: 50Hz to 400Hz
  • Optimised for 230V domestic systems
  • Clear LED indication and buzzer alert
  • Voltage detection from 4mm
  • Elongated probe tip
  • Cat IV 1000V safety rating
NC1 NC2 NC3 NC4
AC Voltage Range 200-1000V 200-1000V 12-1000V50-1000V
Frequency Range 40-400Hz 40-400Hz 40-400Hz
Magnetic field detection >10mT >10mT
LED indication Yellow LED Red LED Yellow / Red LED Red LED
Audible indication
Power on pulse LED
Low battery indication
Auto Power Off
LED torch

What's In The Box?

  • Martindale NC2 Voltage Detector
  • 2 x 1.5V AAA batteries
  • Instruction manual for Martindale NC2
Specification
  • Maximum voltage: 1000V AC RMS
  • Voltage sensitivity range: 200 to 1000V AC RMS
  • Frequency range: 40 to 400Hz
  • Operating/storage temperature: 0˚C to 40˚C
  • Operating/storage temperature: ≤80% RH
  • Altitude: ≤2000m
  • Pollution degree: 2
  • Power: 2 x 1.5V AAA batteries
  • Dimensions: 158mm x 20mm x 27mm
  • Weight: 55g
  • Standards: BS EN 61010-1:2010 CAT IV 1000V Class II, Double insulation
  • IP rating: IP40 to BS EN 60529
  • EMC: BS EN 31326-1
Label Type Size Download
pdf Martincalde NCx Voltage Detector Range pdf 874.3 KB Download
