Martindale PSI4300 Non Contact Phase Sequence Indicator

Be the first to review this product

  • Measurement Principle: Static Induction
  • Input Voltage: 150V - 1000V 3 Phase AC
  • Frequency Range: 45 - 65Hz
In Stock
Returns Guarantee

rrp £210.00

now £165.00 (Ex. VAT) £198.00 (Inc. VAT)

rrp £210.00

OR

Please select a free gift below.

"Increases safety for the user, and bright green LEDs give a clear primary indication of anti-clockwise phase rotation"

  • Description

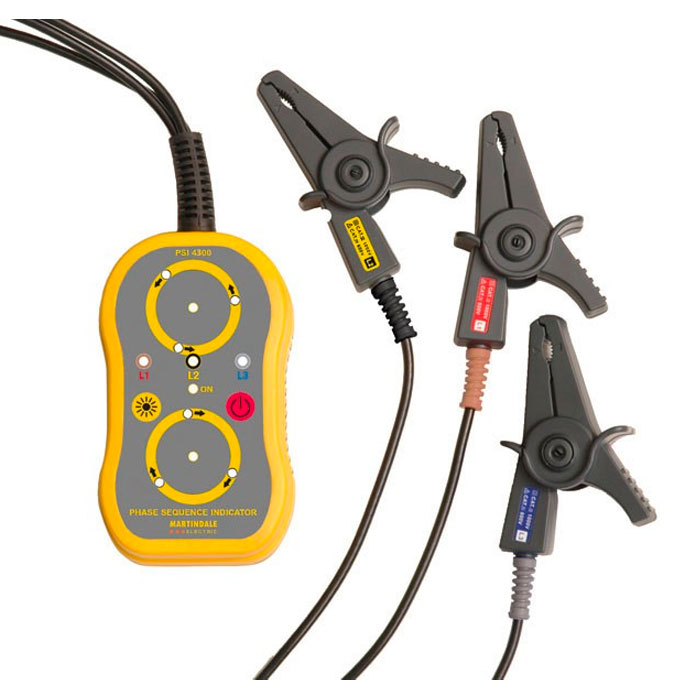

    Martindale PSI4300 Non Contact Phase Sequence Indicator

    The Martindale PSI4300 Non Contact Phase Sequence, a unique rotation indicator that carries out the measurement via inductive crocodile clips. This method increases safety for the user, and bright green LEDs give a clear primary indication of anti-clockwise phase rotation.

    This phase rotation tester has use on both insulated or uninsulated conductors, and an "Enhanced Brightness" switch makes indication brighter in strong ambient light. A combination of both rotating LEDs and buzzer tones indicate clockwise or anti-clockwise rotation.

  • Specification

    • Measurement Principle: Static Induction
    • Input Voltage: 150V - 1000V 3 Phase AC
    • Frequency Range: 45 - 65Hz
    • Operating Temperature & Humidity: -10°C to 50°C, Max 80%
    • Battery Current Consumption: 15mA
    • Cable Length: Approx. 800mm
    • Power Source: 1.5V x 4 AA / LR6 alkaline batteries
    • Auto-Off: After 5 mins of non activity
    • Low Battery Warning: Power LED Flashes Below 4.6V DC Battery Voltage
  • Supplied Accessories

    • The Martindale PSI4300
    • 4 x AA batteries
    • Soft carry case
    • Instruction manual
