Drummond SMKIT10 Smart Meter Installation Kit

SKU: MARTSMKIT10
  • Safely test for voltage with non-contact detector, single-pole indicator and test lamp
  • Test lamp enables safe isolation checking on Cat IV supply side
  • Martindale PD440 enables user to verify test lamp before and after checks
More Info
Typically ships in 1-3 working days

Martindale SMKIT10 Smart Meter Installation Kit

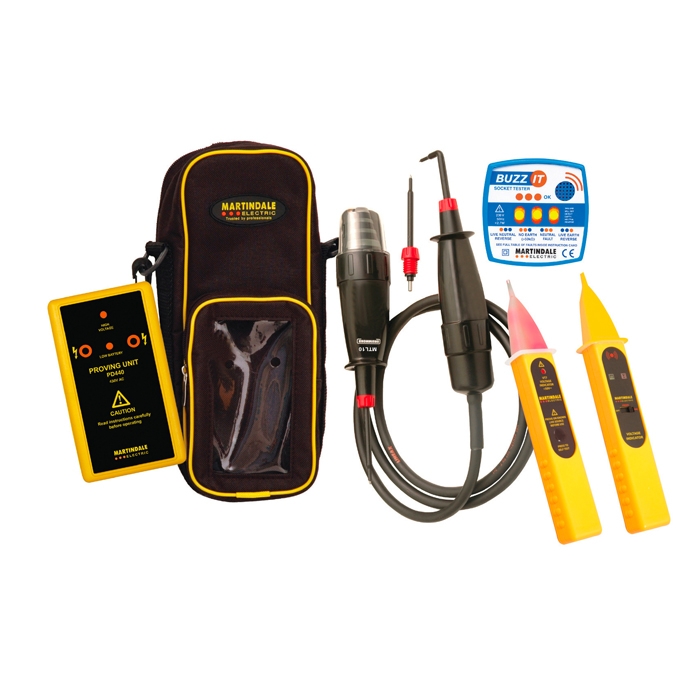

The Martindale SMKIT10 Smart Meter Installation Kit features a wide range of useful instruments for checking that an installation is properly isolated before installing a smart meter. A check plug, non-contact voltage detector, single pole voltage indicator, test lamp, proving unit and carry case are all included in the set.

Firstly, a non-contact Martindale TEK101 provides the user with a flashing red LED and audible warning when voltages between 180V and 600V AC are present. The inbuilt proving unit tests the sensor, batteries and LED so the user can always rely on the results.

A BZ101 Buzz-IT Check Plug allows the user to check for various faults in 230/240V UK wall sockets. With 28 different faults detected and a simple LED display, the socket tester is ideal for performing quick, safe checks in UK installations.

When the user is wearing protective gauntlets it can be difficult to operate a lot of testers but this is not a problem with the Martindale VT7 which is specifically designed for such circumstances. This ergonomic single-pole voltage detector can sense AC/DC voltage between 50V and 600V.

For testing on the Cat IV supply side, a Drummond MTL10 test lamp is provided. This lamp will detect voltage between 50V and 500V AC/DC and then show presence and a nominal level via its useful 360˚ LED display. The Martindale PD440 proving unit supplied in the kit can check the lamp throughout its range before and after tests to ensure accuracy.

A combination soft carry case is provided for all of the kit’s constituent parts and includes a flap that means the proving unit can be used whilst remaining in the case.

Martindale part number: MARSMKIT10

Key Features

  • Martindale TEK101 Non-Contact Voltage Indicator
  • Martindale BZ101 Buzz-IT Check Plug
  • Martindale VT7 Single Pole Voltage Detector
  • Drummond MTL10 Test Lamp
  • Martindale PD440 Proving Unit
  • Combination soft carry case

What's In The Box?

  • Martindale TEK101 Non-Contact Voltage Indicator
  • Martindale BZ101 Buzz-IT Check Plug
  • Martindale VT7 Single Pole Voltage Detector
  • Drummond MTL10 Test Lamp
  • Martindale PD440 Proving Unit
  • Combination soft carry case
Specification

Martindale BZ101 Buzz-IT Check Plug

  • Operating voltage range: 200-250V
  • Frequency range: 30-70Hz
  • Power consumption: Check Plug <1.5W
  • Temperature range: -10 to 40°C at max, 60% RH
  • Power supply: from mains

Martindale VT7

Electrical

  • Audible and visual indication
  • Voltage range: 50V - 600V AC rms.
  • Frequency range: 50 - 60Hz
  • Test current: <5μA

Environmental

  • Temperature (Operating & Storage): -10°C to 55°C
  • Humidity (Operating & Storage): ≤ 85% R.H.
  • Altitude: up to 2000m

General

  • Power: 9V, PP3 alkaline battery included (IEC 6LR61, NEDA 1604A)
  • Current consumption: 34mA max
  • Dimensions: 236(L) x 44(W) x 33(D) mm
  • Weight: 120g (battery included) approx

Safety

  • Conforms to BS EN61010-1 CAT IV 300V, CAT III 600V
  • Class II, Double Insulation
  • Pollution Degree: 2
  • IP rating: IP54
  • Water resistant

EMC

  • Conforms to BS EN61326-1

Drummond MTL10

  • Maximum Working Voltage: 500V AC, 750V DC
  • Voltage Ranges: 50, 100, 200, 400V AC/DC
  • Range Detection: Automatically
  • Response Time: <0.1s
  • Frequency Range: DC, 0-65Hz
  • Test Current (500V AC/DC): <3.5mA
  • Temperature Range: -10C to 55C
  • Humidity: max 85% rel.H
  • Measurement Category: CAT IV 600V, CAT III 1000V
  • Pollution Degree: 2
  • Protection Degree: IP67
  • Dimensions: 213 x 112 x 72mm
  • Weight: 320g

Martindale PD440

  • Output Voltage: 440V nominal
  • Operating Temperature:  -10°C to +40°C at max 70% RH
  • Battery: 6 x LR6 / MN1500 1.5V alkaline batteries or equivalent
  • Dimensions: 143 x 84 x 50mm
  • Weight: 400g approx including battery

Martindale TEK101

  • Voltage Range: 100-600V
  • Frequency Range: 50Hz to 50kHz
  • Integrated self test proving function sensitivity: Registers at 3mm for 100V, 50Hz, 23mm for 240V, 50Hz (distances are from the tip of the unit to a flat PVC twin core and earth cable suspended in free space)
  • Visual Indication: Red LED
  • Audible Indication: 2kHz tone
  • Battery low: Green LED
  • Operating temperature: 0°C to 40°C
  • Supply: 9V alkaline battery, MN1604 or equivelant (excluded)
  • Housing: Flame retardant ABS
  • Dimensions: 202 X 32 X 22mm
  • Weight: 140g approx (excluding battery)
