Martindale SPL82 Data Logging Sound Level Meter

Martindale
SKU: MARTSPL82
  • Measures noise levels from 30dB to 130dB with a 60dB dynamic range
  • Large internal memory and battery life allows long term noise monitoring
  • Frequency range of 20Hz to 8kHz covers entire human hearing range
More Info
In Stock - Available Next Day

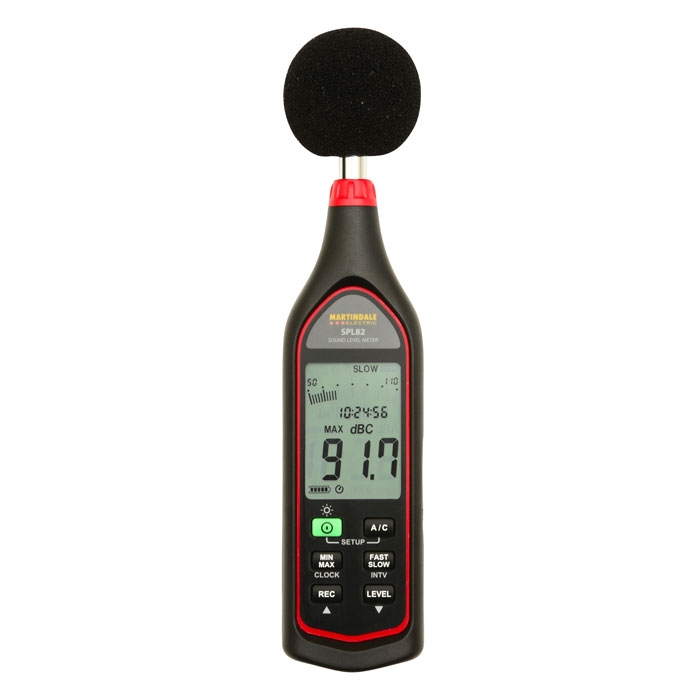

Martindale SPL82 Data Logging Sound Level Meter

The Martindale SPL82 Data Logging Sound Level Meter is a Class 2 sound meter that measures sound pressure level from 30dB and 130dB with a 0.1dB resolution and an accuracy of ±1.4dB. The dynamic range of 60dB means that the overall measuring range is split into three different operating ranges. The meter is compatible with sounds of frequencies between 20Hz and 8kHz which covers the entire human hearing range. ‘A’ and ‘C’ frequency weighting is available for different applications and there is also the option of fast or slow time weighting.

The Martindale SPL82 is a datalogging sound meter which is capable of monitoring an environment over an extended period thanks to a 64,000-spot capacity internal memory. For longer-term monitoring, the meter can be mounted on a tripod and externally powered. In instances where the internal memory is not large enough, it can even be attached to separate recording devices via DC and AC outputs.

Readings are shown on the Martindale SPL82 via a clear digital screen and it is possible to view minimum and maximum readings when required. The battery lasts for approximately 24 hours and the meter comes with a USB cable and software package that allow data to be transferred to a PC. It conforms to BS EN 61672-1.

Martindale part number: SPL82

Key Features

  • Measuring range: 30dB to 130dB
  • Resolution: 0.1dB
  • Frequency range: 20Hz to 8kHz
  • Accuracy: ±1.4dB
  • Dynamic range: 60dB
  • Capable of long term monitoring
  • Large internal memory
  • Downloadable via USB
  • 24-hour battery life

What's In The Box?

  • Martindale SPL82 Data Logging Sound Level Meter
  • Storage case
  • 4 x 1.5V AAA batteries
  • Software
  • Micro USB cable
  • 3.5mm plug
  • USB stick
  • Instructions for Martindale SPL82
Specification
  • Measuring level range: 30 – 130dB
  • Resolution: 0.1dB
  • Frequency range: 20Hz – 8kHz
  • Frequency weighting: A or C
  • Level ranges: Lo: 30 – 90dB
  • Med: 50 – 110dB
  • Hi: 70 – 130dB
  • Accuracy: ±1.4dB (under reference conditions @ 94dB, 1KHz)
  • Dynamic range: 60dB
  • Time weighting: fast or slow
  • Microphone: ½ inch electret condenser microphone
  • AC output: 1Vrms at full scale (full scale is the upper limit of the selected level range)
  • DC output: 10mV/dB

GENERAL

  • Digital display: 4 digit liquid crystal display
  • Sampling rate: twice per second
  • Analogue display: 30 segment bar graph
  • Analogue resolution: 2dB
  • Analogue measurement rate: 20 times per second

Alarm function:

  • OVER is when output is more than the upper limit of the range (over 130dB).
  • UNDER is when output is less than the lower limit of the range (under 30dB).
  • Data logging capacity: 64,000 records
  • Power: 4 x 1.5V AAA alkaline batteries (IEC LR03, NEDA 24A)
  • Battery life: 24 hours (approximate)
  • Auto power off: 30 mins (can be disabled)
  • Power consumption: 0.2W approx
  • External power supply: 5V DC (micro USB plug)
  • Dimensions: 264 (L) x 63 (W) x 29mm (H)
  • Weight: 245g including battery
  • Includes: storage case, 4 x 1.5V AAA alkaline batteries, software, micro USB cable, 3.5mm plug, USB stick and instruction manual.

ENVIRONMENTAL

  • Operating conditions: Temperature: 0°C to 40°C (32 to 104°F)
  • Relative humidity: 10 to 90% R.H.
  • Storage conditions: Temperature: -10°C to 60°C (14 to 140°F)
  • Relative humidity: 10 to 75% R.H.

FUNCTIONALITY

  • Complies with BS EN 61672-1 Class 2

EMC

  • Conforms to BS EN 61326-1
