Martindale VT4 Non-Contact Voltage Detector

Be the first to review this product

  • Non-contact AC voltage detection over two ranges (12V to 50V; 50V to 1000V)
  • Tip illuminates red and audible buzzer sounds in presence of voltage
  • Compact, lightweight design is ideal for storage and transport

rrp £27.00

now £17.95 (Ex. VAT) £21.54 (Inc. VAT)

rrp £27.00

OR

Please select a free gift below.

  • Description

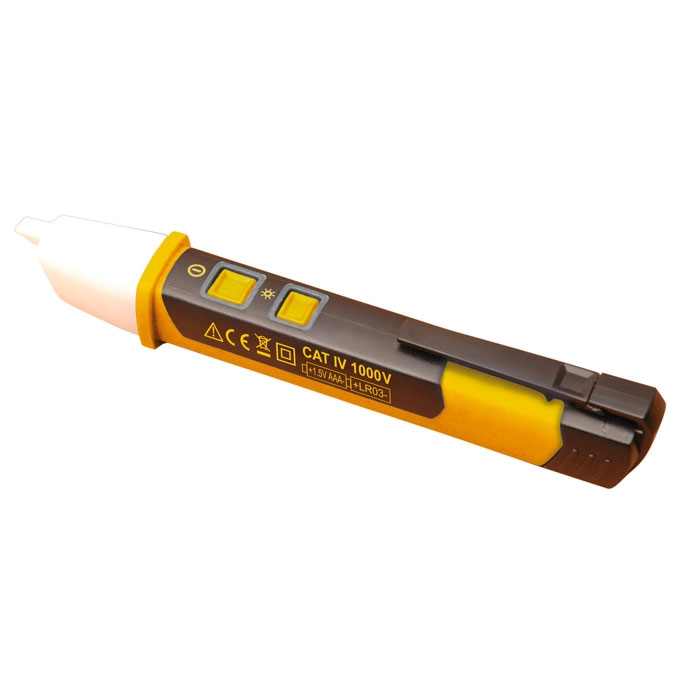

    Martindale VT4 Non-Contact Voltage Detector

    The Martindale VT4 Non-Contact Voltage Detector is a useful and safe voltage tester that is capable of detecting AC voltage between 12V and 1000V. The two sensitivity ranges (12 to 50V & 50V to 1000V) help ensure accuracy and the detection also has a wide frequency range of 50Hz to 400Hz.

    When a voltage is detected, the tip of the Martindale VT4 lights up red and it also emits an audible indication. The lightweight, compact design is ideal for professionals as it is extremely easy to carry around and the instrument even has an LED torch so the user can see what they are doing in poor light.

    The clip means that the detector can be carried on a belt or pocket and it is safety rated as Cat IV 1000V.

    Martindale part number: MARVT4

    Key Features

    • Detect AC voltage from 12V to 1000V
    • Non-contact detection
    • Ranges: 12V to 50V; 50V to 1000V
    • Tip lights red and buzzer warning sounds
    • Compact, ‘pen’ type design
    • Inbuilt LED torch
  • Specification

    Electrical

    • Maximum voltage: 1000V AC rms
    • Voltage sensitivity ranges: 12 to 5000V AC rms; 50 to 1000V AC rms (default range)
    • Frequency range: 50 to 400Hz

    Environmental

    • Temperature & Humidity (Operating & Storage): 0°C to 40°C 80% R.H.
    • Altitude: up to 2000m
    • Pollution degree 2

    General

    • Power: 2 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A)
    • Battery consumption: 80mA approx.
    • Dimensions: 155(L) x 23(W) x 25(D) mm
    • Weight: 55g approx.
    • Includes: 2 x 1.5V AAA batteries, instructions

    Safety

    • Conforms to BS EN61010-1:2010 CAT IV 1000 V
    • Class II, Double insulation
    • IP rating: IP64 to BSEN 60529

    EMC

    • Conforms to BS EN61326-
