Megger TXL830 Telecom Battery Load Unit

Megger
SKU: MEGGTORKELTXL830
  • Designed to provide higher load currents when used with TORKEL battery load units
  • Shuts down automatically when attached Torkel is stopped
  • Perfect for use with the Megger Torkel 820 Battery Load Tester
More Info
Made to order - contact for lead time

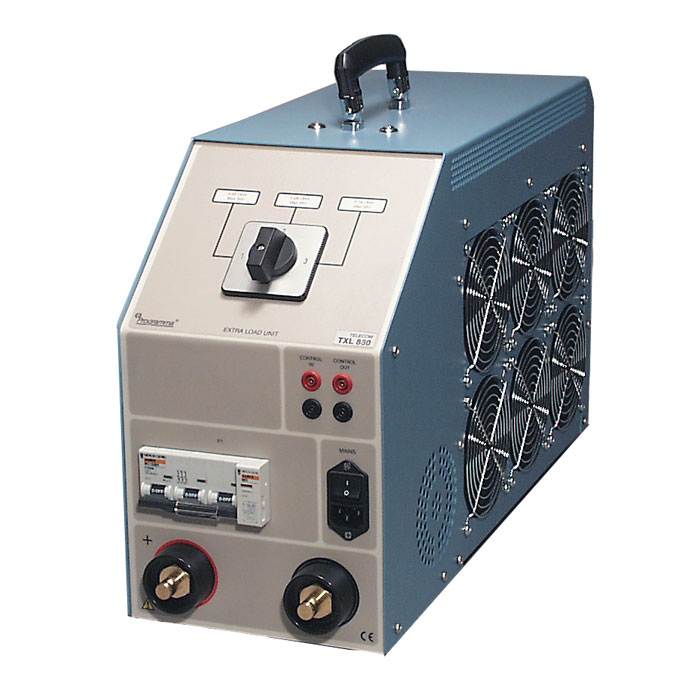

Megger TXL830 Telecom Battery Load Unit

Designed for use with TORKEL battery load units, the Megger TXL830 Telecom Battery Extra Load Unit provides higher load currents for testing, ideal for use in constant current or constant power tests on a range of equipment, including telecommunication and radio equipment.

When used in conjunction with a Torkel unit, the TXL range allows you to discharge batteries with currents of up to several kA.

Connecting directly to the battery, the Megger Torkel measures the total current using a clamp-on ammeter and TXL extra loads are shut down automatically when the Torkel is stopped.

Please note: These resistive extra loads do not perform any regulating functions themselves.

Specification

General

  • Mains voltage: 100 – 240 V AC, 50 / 60 Hz
  • Power consumption: 75 W (max)
  • Protection: Thermal cut-outs, automatic overload protection
  • Dimensions (Instrument): 210 x 353 x 600 mm
  • Dimensions (Transport case): 265 x 460 x 750 mm
  • Weight: 13 kg (21.4 kg with transport case)
  • Megger Part Number: BS-59093 (TXL830)

Load Section

 TXL830TXL850TXL870
Max. voltage DC 28 V 56 V 140 V / 280 V
Max. current 300 A 300 A 112 A at 140 V, 56 A at 280 V
Max. power 8.3 kW 16.4 kW 15.8 kW
Internal resistance, 3-position selector
Position 10.275 ohms0.55 ohms4.95 ohms
Current 100A at 27.6 V (12 x 2.3 V) at 55.2 V (24 x 2.3 V) -
78.5 A at 21.6 V (12 x 1.8 V) at 43.2 V (24 x 1.8 V) -
50.1 A - - at 248.4 V (108 x 2.3 V)
39.2 A - - at 194.4 V (108 x 1.8 V)
Position 20.138 ohms0.275 ohms2.48 ohms
Current 200 A at 27.6 V at 55.2 V (24 x 2.3 V) -
156 A at 21.6 V 43.2 V (24 x 1.8 V) -
Position 30.092 ohms0.184 ohms1.24 ohms
Current 300 A at 27.6 V at 55.2 V (24 x 2.3 V) -
235 A at 21.6 V 43.2 V (24 x 1.8 V) -
100 A - - at 124.2 V (54 x 2.3 V)
78.4 A - - at 97.2 V (54 x 1.8 V)
Label Type Size Download
pdf Megger TXL Battery Load Unit Datasheet pdf 148.6 KB Download
