Metrel A 1631 EV Monitoring Cable

Be the first to review this product

  • Monitor CP signal communication, Current, Voltage & More
  • Type 2 male and female connectors for EVs and EVSE instruments
  • Verify EVSE counters by simulating an external load up to 13 A
(Ex. VAT) £932.50 (Inc. VAT) £1,119.00
OR

Please select a free gift below.

  • Description

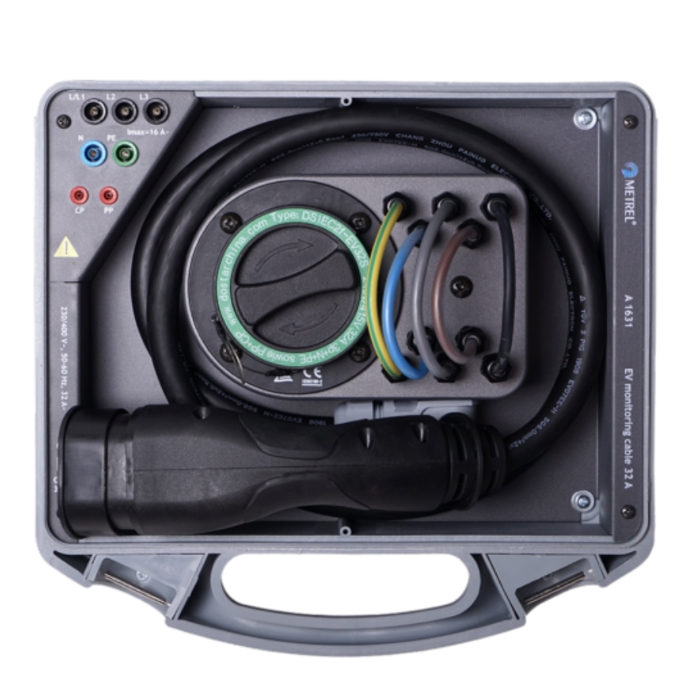

    Metrel A 1631 EV Monitoring Cable

    The Meter A 1631 EV Monitoring Cable is a purpose built piece of kit designed specifically for monitoring various vital components during Electric Vehicle (EV) charging. Alongside supported Metrel testers and adapters the 1631 can monitor CP signal communication, PP resistance, current and voltage whilst testing AC up to 32 A EVSE with Type 2 connectors.

    Connect the A 1631 EV Monitoring Cable to instruments intended for current and voltage verification, with two included Type 2 connectors for completing different tasks. Attach the monitoring cable to an EV via a female plug connector or any Electrical Vehicle Supply Equipment (EVSE) using the male socket outlet. An external load can then be simulated up to 13 A using banana plugs in order to verify EVSE counters.

    The A 1631 EV Monitoring Cable is compliant with the following standards:

    Functionality

    • EN 61851
    • HD 60364-6
    • EN 60364-7-722

    Electromagnetic Compatibility

    • EN 61326

    Safety

    • IEC/EN 61010-1
    • EN 61010-2-030;
    • EN 61010-031
    Metrel A 1631 EV Monitoring Cable Diagram

    Key Features

    • Monitor AC EV charging up to 32 A EVSE
    • During charging monitor CP signal communication
    • Observe PP Resistance, Current & Voltage
    • Connect to instruments for voltage and current verification
    • Simulate external loads up to 13 A and verify EVSE counters
    • The standard set comes complete with:
    • Test lead, 1,5 m, 5 pcs (black - 3 pcs, green - 1 piece, blue - 1 piece)
    • Test cable with 2 mm banana plug, red, 1 m, 2 pcs
    • eMobility App can be download from Android Market for free

    Metrel part number: A 1631

  • Specification

    Workspaces

    • EVSE Mode

    EVSE Measurements

    • Monitoring of Voltage
    • Max. Charging current of A.C. EVSE with Type2 connectors: 32 A
    • Max. External load during EV simulation via banana plugs: 13 A
    • Monitoring of Current
    • Proximity Pilot 0 - 32 A
    • Simulation of External Load
    • Control Pilot States Settings

    Standards Applied

    • IEC/EN 60364:
      • IEC/EN 60364-6
      • IEC/EN 60364-7
      • IEC/EN 61851
      • IEC/EN 61010

    General

    • Mains power supply:
      • 230 V / 400 V 3~ ± 10 %
      • 50 Hz - 60 Hz, 60 VA
      • 32 A
    • Protection category: 300 V CAT II
    • Measuring category: 300 V CAT II
    • Degree of protection:
      • IP 65 (case closed)
      • IP 40 (case open)
    • Dimensions (W x H x D): 36 cm x 16 cm x 33 cm
    • Working temperature range: -10 °C ... 50 °C
    • Maximum relative humidity: 90 %RH (0 °C ... 40 °C), non-condensing
    • Working nominal altitude: Up to 3000 m
  • Supplied Accessories

    • A 1631 EV Monitoring Cable
    • Test lead, 1,5 m, 5 pcs (black - 3 pcs, green - 1 piece, blue - 1 piece)
    • Test cable with 2 mm banana plug, red, 1 m, 2 pcs
  • Product Documents

    Product Attachments

    View FileMetrel A 1631 EV Monitoring Cable Datasheet    Size: (2.06 MB)
