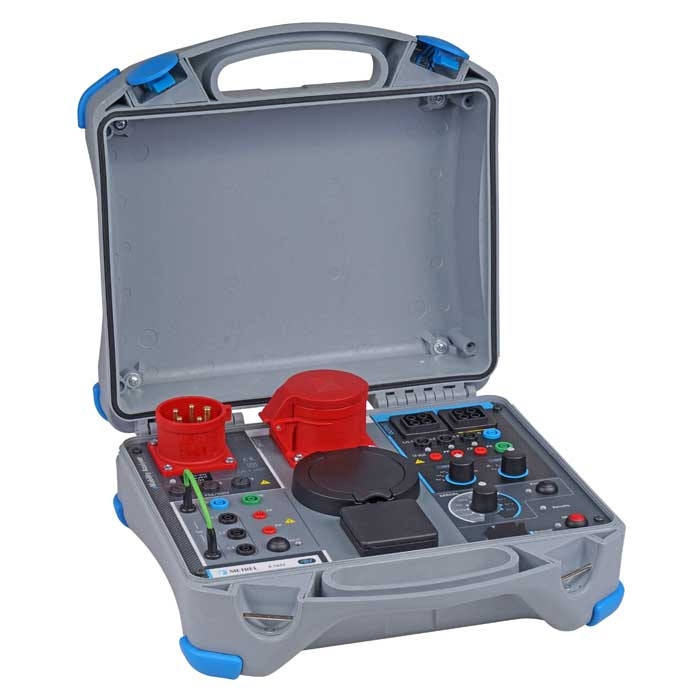

Metrel A1632 eMobility Analyser

Be the first to review this product

  • A comprehensive EVSE testing adaptor, capable of simulating CP and PP circuits
  • Performs diagnostic, functional and electrical safety testing on EV charging points
  • Compatible with Metrel testers including Metrel MI3152, MI3155, and MI3325

rrp £1,935.95

now £1,785.00 (Ex. VAT) £2,142.00 (Inc. VAT)

rrp £1,935.95

OR

Please select a free gift below.

  • Description

    Metrel A1632 eMobility Analyser

    The Metrel A1632 eMobility Analyser is a powerful, versatile adaptor for carrying out testing on electric vehicle supply equipment (EVSE) when used with a Metrel MFT such as the MI3152, MI3152H, and MI3155, or the Metrel MI3325 Multiserviser XD machinery tester.

    Functional and diagnostic tests are carried out in accordance with EN 61851-1 whilst electrical safety tests are compliant with EN 60364-6. It can perform diagnostic tests by simulating an electric vehicle’s CP and PP circuits whilst electrical safety testing under fault conditions is available for single- and three-phase Mode 2 electrical vehicle charging cables.

    Fault conditions can be simulated from the vehicle itself or from the mains circuit with the Metrel A1632 and it is also capable of standard electrical safety tests on Mode 2 and Mode 3 EV charging cables.

    Practical features make the Metrel A1632 easy to use. For example, the connections are designed to be easily accessible and the analyser also has rechargeable batteries. Bluetooth communication with Metrel safety testers makes the analyser easy to coordinate with the user’s other test equipment.

    Metrel part number: A 1632

    Key Features

    • Comprehensive testing of electric vehicle charging points
    • Compatible with Metrel MI3152, MI3155, and MI3325
    • Diagnostic and function testing on EVSE points
    • Simulates vehicle plugged into charging point
    • Recreates fault conditions for electrical safety testing
    • Suitable for testing Mode 2 and Mode 3 cables
    • Suitable for single- or three-phase Mode 2 cables
    • Bluetooth communication to other equipment
  • Specification

    Measurement functions

    Nominal system voltage range

    • Range: 100 V AC ... 440 V AC
    • Resolution: 1 V
    • Accuracy: ±2 % of reading + 2 dig)

    Nominal frequency range

    • Range: 0 Hz, 14 Hz ... 500 Hz

    Phase rotation

    • Indication: 1.2.3 or 3.2.1

    Voltage UCP+, UCP-

    • Range: -19.99 V ... 19.99 V
    • Resolution1 V
    • Accuracy: ±(2 % of reading + 2 dig)

    Frequency

    • Range: 500 ... 1500 Hz
    • Resolution: 0.1 Hz
    • Acuracy: ±1 % of reading

    Duty cycle

    • Range: 0.1 ... 99.9 %
    • Resolution: 0.1 %
    • Accuracy: ±10 dig

    Ievse

    • Range: 0.0 … 99.9 A
    • Resolution: 0.1 A
    • Accuracy: Calculated value

    Toff

    • Range: 0 ... 399 ms
    • Resolution: 1 ms
    • Accuracy: ±(1 % of reading + 5 dig)

    Simulation Functions

    PP simulation

    • n.c: > 300 kΩ
    • 13 A: 1.5 kΩ ± 1.5 %
    • 20 A: 680 Ω ± 1.5 %
    • 32 A: 220 Ω ± 1.5 %
    • 63 A: 100 Ω ± 1.5 %
    • 80 A: 56 Ω ± 1.5 %

    CP simulation

    • A: > 300 kΩ
    • B: 2.74 kΩ ± 1.5 %
    • C: 882 Ω ± 1.5 %
    • D: 246 Ω ± 1.5 %

    Diagnostic Functions (Error: meaning)

    • A1: No EV connected
    • A2: No EV connected / PWM
    • B1: EV connected
    • B2: EV connected / PWM
    • C1: EV charged
    • C2: EV charged / PWM
    • D1: EV charged and ventilation on
    • D2: EV charged and ventilation on / PWM
    • E: Error
    • F: Failure
    • Invalid: CP signal can’t be classified

    Error Functions (State: meaning)

    Uinput fault

    • L/L1op L/L1 conductor open
    • L/L2op L/L2 conductor open
    • L/L3op L/L3 conductor open
    • Nop N conductor open
    • PEop PE conductor open
    • L<>PE L/L1 and PE conductors crossed
    • Uext (PE) External voltage on PE (on input side)

    Uoutput fault

    • Diode short/Error 1 CP diode shorted
    • CP short/Error 2 CP-PE shorted
    • PE open/Error 3 PE opened

    General

    • Battery power supply: 7.2 V DC (4.4 Ah Li-ion)
    • Battery charging time typically: 4 h (deep discharge)
    • Mains power supply 115 V ~ ± 10 %; 230 V ~ ± 10 %; 230 V / 400 V 3~ ± 10 %; 50 Hz - 60 Hz, 60 VA
    • Protection category: 300 V CAT II
    • Measuring category: 300 V CAT II
    • Degree of protection: IP 65 (case closed); IP 40 (case open); IP 20 (mains test socket)
    • Dimensions (W x H x D): 36 cm x 16 cm x 33 cm
    • Working temperature range: -10 °C … 50 °C
    • Maximum relative humidity: 90 % RH (0 °C … 40 °C), non-condensing
    • Working nominal altitude: Up to 3000 m
    • Bluetooth module: Class 2

    Electromagnetic compatibility

    • EN 61326

    Safety

    • EN 61010-1
    • EN 61010-2-030
    • EN 61010-031

    Functionality

    • EN 61851-1
    • EN 61557 series
    • EN 60364-6

    Li – ion battery pack

    • IEC 62133
  • Supplied Accessories

    • Metrel A1632 eMobility Analyser
    • Type 2 Male plug adapter with long CP pin (2 x Metrel connector), 2 m
    • 1-phase EU - 3 phase CEE (16 A) mains cable, 2 m
    • 2 mm banana to 4 mm cascade banana adapter, 1 m
    • Protective bag for accessories (mounted on the case)
    • Metrel eMobility App for Android*
    • Instruction manual
    • Calibration certificate

    *The eMobility App can be downloaded free of charge from Android Market.

    Note: The Android app eMobility allows only performing functional EVSE tests.
