Metrel EVSE Test Standard Kit

Be the first to review this product

  • An economical kit which is perfect for testing electric vehicle charging points
  • Includes the versatile, Bluetooth-enabled Metrel MI3125BT MFT
  • Metrel A1532 simulates a vehicle attached to charging point
(Ex. VAT) £845.00 (Inc. VAT) £1,014.00

Please select a free gift below.

  • Description

    Metrel EVSE Test Standard Kit

    The Metrel EVSE Test Standard Kit is a great purchase option for contractors working on electric vehicle charging points. It includes a Metrel A1532 EVSE Adaptor and a Metrel MI3125BT Multifunction Tester.

    The Metrel MI3125BT Multifunction Tester is a useful instrument with multiple tests for electrical installations. It performs automatic R1+R2 earth loop impedance measurements and is also capable of performing insulation testing (100V, 250V, 500V, 1000V), RCD testing (ramp, no-trip), PSC, LE, LN, and earth spike testing (2- or 3-wire).

    The internal memory on the Metrel MI3125BT can store results which can then be downloaded to a computer afterwards for further analysis. Operation is undertaken using a set of clear operational buttons and Bluetooth connectivity allows communication and operation using the Metrel Eurolink Android App.

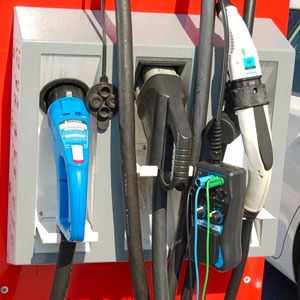

    The Metrel A1532 EVSE Adaptor effectively allows an MFT to simulate the effect of a vehicle plugged into a charging point. It allows testing on Mode 3 EV supply equipment with type 2 connections without any need to disassemble the charging point. The adaptor can simulate many different charging states with cooled or uncooled charging as well as testing progressive RCDs or B-type RCDs.



    In addition to the Metrel MI3125BT and Metrel A1532 EVSE Adaptor, the kit also includes essential testing accessories such as a Eurolink software, a USB cable, a carry case, a mains plug test leads, test robes, crocodile clips and a calibration certificate. The tester is covered by a two-year manufacturer’s warranty. Overall this kit constitutes a cost-effective solution to testing requirements when it comes to electric vehicle charging points.

    Kit Contents

    • Metrel MI3125BT Multifunction Tester
    • Metrel A1532 EVSE Adaptor
    • Metrel Eurolink software
    • Soft carry case
    • Mains cable
    • RS232 FW upgrade cable
    • Test cable w/ universal connection
    • USB cable
    • 3 x 1.5m test leads
    • 12V battery charger
    • 3 x test probes
    • 3 x crocodile clips
    • Hand strap
    • CD instruction manual
    • Calibration certificate
    • 2-year warranty
  • Specification

    Metrel MI3125BT Multifunction Tester

    • Continuity Test R1 & R2 low 200mA
    • Automatic R1+R2 Testing using the EasiSwitch Adaptor
    • Insulation tests @ 100v, 250v, 500v, and 1000v
    • Insulation range up to1000MΩ
    • Complete RCD Auto Test - "All 6 tests in 1 visit"
    • RCD Ramp Test - indicates actual trip current
    • RCD Triplock - Guaranteed not to trip RCD's
    • Loop, ZE,ZS,110V,230V and 415V
    • PSC (Measure the potential fault current between phase/neutral and earth/neutral conductors), LE and LN
    • 2 or 3 wire Earth Spike Testing
    • Multi Voltage System Support
    • Multi Voltage Monitor "online" single/3 phase Real-Time AC Measurement
    • Phase rotation
    • Polarity Test
    • Frequency Test
    • Downloadable (stores up to 1700 results)
    • In-built battery charger
    • PASS/FAIL Indications LED's
    • Magnetic Holder for Hands Free operation
    • Bluetooth communication with PC, Android tablets and smart phones via built-in BT.
    • EuroLink Android APP, data management tool (optional accessory).

    Metrel A1532 EVSE Adaptor

    • Input voltage: 400V (3-phase)
    • Frequency: 50Hz
    • Test current: 13A
    • Proximity Pilot (PP) simulation: Open circuit; 13A; 20A; 32A; 63A
    • Control Pilot (CP) simulation: State A (not connected), State B (connected, not charging);
    • State C (charging without ventilation); State D (charging with ventilation); State E (error - CP short to PE via diode)
    • Overvoltage category: 300V Cat II
    • Protection degree: IP40
    • Pollution degree: 2
    • Protection classification: Double insulation
    • Altitude: 3000m sea level
    • Dimensions (L x W x H): 200mm x 100mm x 70mm
    • Test lead length: 0.5m
    • Weight: 0.82kg
    • Working temperature range: 0˚C to 40˚C @ 95% RH, non-condensing
    • Storage temperature range: -20˚C to 70˚C
    • Maximum storage relative humidity: 90% RH (10˚C to 40˚C); 80% RH (40˚C to 60˚C)
  • Supplied Accessories

    • Metrel MI3125BT Eurotest Combo Multifunction Tester
    • Metrel Eurolink Software
    • Metrel A1532 EVSE Test Adaptor
    • Soft carrying bag
    • Hand strap
    • Mains measuring cable (1,5 m)
    • RS232 FW upgrade cable
    • Test probes (green, brown & blue)
    • Croc clips (green, brown & blue)
    • Test cable Universal connection
    • 3 x 1,5 m (3 wire lead)
    • USB downloading cable
    • 6 NiMh AA batteries
    • 12 V adaptor mains lead
    • Universal 12 V adaptor
    • Manual on CD
    • Start-up guide and quick-test guide on the Metrel MI 3125BT
    • Calibration certificate
    • 24 months manufacturers warranty.
