Metrel MI3290 GF Earth Analyser

SKU: METRMI3290GF
  • Carries out two-, three- and four-pole earth testing with Wenner/Schlumberger methods
  • Capable of other measurements such as step/contact voltage, low resistance and more
  • Sweep across the entire 55Hz to 15kHz frequency range during testing
More Info
Typically ships in 2-4 working days

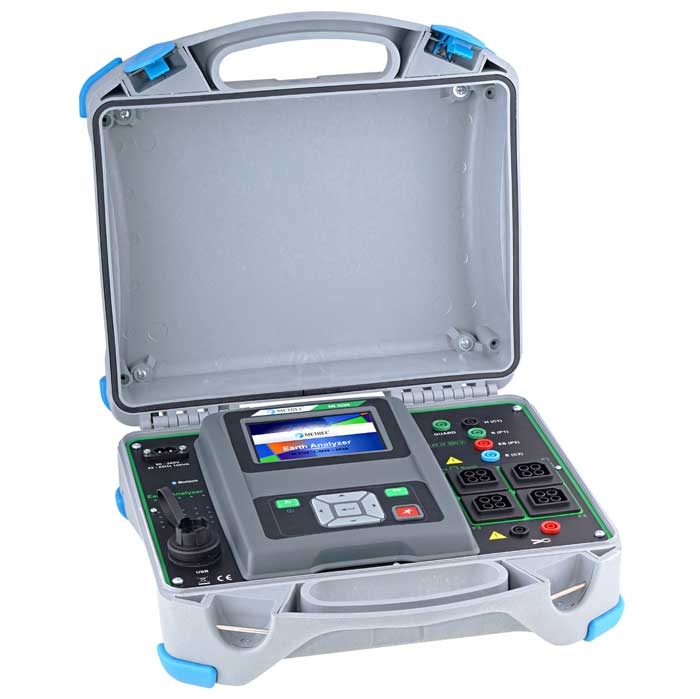

Metrel MI3290 GF Earth Analyser

The Metrel MI3290 GF Earth Analyser is capable of performing 2-, 3-, and 4-pole earth testing and can use the Wenner and Schlumberger methods with four-pole testing. Furthermore, it can carry out measurements such as step/touch voltage measurements, voltage potential measurement, low impedance 4-point tests, and low resistance tests with a 200mA or 7mA test current. This makes it suitable for testing earthing facilities on transformer stations and in domestic environments.

One of the most notable features of the Metrel MI3290 GF is the wide frequency range. It can test at frequencies between 55Hz and 15kHz using either a single test or by exploiting the whole of the range with the sweep mode. A filter for high frequency noise makes the earth tester highly resistant to interference, thus making readings more accurate.

The 3.4” colour touchscreen on the Metrel MI3290 GF can display earth test readings in both numerical and graphical formats as well as allowing the user to operate the analyser via the intuitive menu system. A set of navigation buttons is also available. Readings are saved to the large 1GB internal memory.

Once saved to the Metrel MI3290 GF’s memory, supplied Metrel ES software can be used to analyse and report on earth test results. It also facilitates data transfer via a USB cable or a wireless Bluetooth connection.

The Metrel MI3290 GF works from both the supplied NimH batteries or from the mains so it is very versatile. An IP54 rating when open and an IP65 rating when closed certifies that the earth tester is suited to use on industrial sites. It is supplied with accessories including test leads, test probes, crocodile clips, a G clamp, a voltmeter, a Kelvin clamp, a step voltage test plate, and a carry case.

Metrel part number: MI 3290 GF

Testing Facilities

  • 2-, 3-, 4-pole earth resistance test
  • Wenner and Schlumberger specific earth resistance
  • Low ohm resistance measurement with 7mA and 200mA test currents
  • Earth potential measurement
  • Step and contact measurements
  • 10/350µs impulse earth measurement
Licence key GX GL GF GP
Measurement methods
Ground Z 2-pole
Ground Z 3-pole
Ground Z 4-pole
Single/multi/sweep frequency
Wenner 4-pole
Schlumberger 4-pole
Selective (iron clamp)
Stakeless 2-clamps
Transient Impulse Impedance
HF 25 kHz Impedance
Step / Touch
Voltage potential
Low Impedance 4-point
Low Resistance 200 mA
Tower Passive one rod / Flex clamps
Tower FOP / 1xFlex clamp GX1
Tower FOP / 4xFlex clamp GX4 Option
Mono Tower FOP / Flex clamp
Measurement accessory
Current earth spike, 90 cm, 2 pcs
Potential earth spike, 50 cm 2 pcs
G clamp
Shielded test lead on reel, 75 m
Test lead on reel 50 m, 3 pcs (black, green, blue)
Test lead, 5 m, 2 pcs (blue, red)
Set of test probes, crocodile clip and 2 m test lead, 4 pcs
Flex clamp 5 m with 15 m shielded cable

4 pcs (GX4)
1 pce (GX1)

1 pce
Iron clamp, 2 pcs
Kelvin clamp with 2,5 m cable, 2 pcs
Step Contact Meter Measuring Set



Kit Contents

  • Metrel MI3290 GF Earth Tester
  • Current earth spike 90 cm, 2 pcs
  • Potential earth spike 50 cm, 2 pcs
  • Connection lead black 2 m
  • Test lead 5 m blue
  • Test lead 5 m red
  • Test lead 50 m black on cable reel
  • Test lead 50 m green on cable reel
  • Test lead 50 m blue on cable reel
  • Shielded test lead 75 m on reel
  • G clamp
  • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
  • Bag for accessories
  • USB cable
  • Mains cable
  • Calibration certificate
  • Instruction manual
  • PC SW Metrel ES Manager
  • Licence GF
  • Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
  • Kelvin clamp
  • Voltmeter MI 3295M with 2 wire test lead*
  • Soft carrying bag
  • Step voltage test plate, 2 pcs
  • NiMH battery cells, type AA, 6 pcs
  • Power supply adapter
  • Bag for accessories

What's In The Box?

  • Metrel MI3290 GF Earth Tester
  • Current earth spike 90 cm, 2 pcs
  • Potential earth spike 50 cm, 2 pcs
  • Connection lead black 2 m
  • Test lead 5 m blue
  • Test lead 5 m red
  • Test lead 50 m black on cable reel
  • Test lead 50 m green on cable reel
  • Test lead 50 m blue on cable reel
  • Shielded test lead 75 m on reel
  • G clamp
  • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
  • Bag for accessories
  • USB cable
  • Mains cable
  • Calibration certificate
  • Instruction manual
  • PC SW Metrel ES Manager
  • Licence GF
  • Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
  • Kelvin clamp
  • Voltmeter MI 3295M with 2 wire test lead*
  • Soft carrying bag
  • Step voltage test plate, 2 pcs
  • NiMH battery cells, type AA, 6 pcs
  • Power supply adapter
  • Bag for accessories
Specification

Earth resistance (2, 3, 4-pole)

  • Open-terminal test voltage 20 or 40 VAC
  • Short-circuit test current >220mA
  • Test frequencies: 55Hz to 329Hz; 659Hz to 2.63kHz; 3.29kHz to 15kHz
  • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ; 0.00Ω to 199.9Ω
  • Uncertainty: ±(3% + 3 digits); ±(5% + 3 digits); ±(8% + 3 digits)

Specific earth resistance ro Wenner and Schlumberger method

  • Open-terminal test voltage 20 or 40V AC
  • Short-circuit test current >220mA
  • Test frequency: 164Hz
  • Measurement range: 0.00Ωm to 19.99kΩm
  • Uncertainty: Calculated (conside uncertainty of 4-pole method)

DC Resistance RLOW

  • Test current: 200mA
  • Measurement range: 0.00Ω to 1.99kΩ
  • Uncertainty: ±(2% + 2 digits)

DC Resistance CONT

  • Test current: 7mA
  • Measurement range: 0.00Ω to 19.9kΩ
  • Uncertainty: ±(3% + 2 digits)

AC impedance

  • Test frequency: 55Hz to 15kHz
  • Measurement range: 0.00Ω to 19.99kΩ
  • Uncertainty: ±(3% + 2 digits)

Current RMS (Iron Clamp)

  • Nominal frequency: 45Hz to 1.5kHz
  • Measurement range: 1.0mA to 7.99A
  • Uncertainty: ±(2% + 3 digits)

Current RMS (Flex Clamp)

  • Nominal frequency: 45Hz to 1.5kHz
  • Measurement range: 10mA to 49.9A
  • Uncertainty: ±(8% + 3 digits)

General

  • Battery power supply: 14.4V DC (4.4Ah Li-ion)
  • Mains power supply: 90-260 VAC, 45Hz to 65Hz, 100VA (300V Cat II)
  • Degree of protection: IP65 (case closed); IP54 (case open)
  • Dimensions: 360mm x 160mm x 330mm
  • Display: 3.4” colour LCD display with backlight and touchscreen
  • Communication: USB, BT
  • Memory: >1GB
