Metrel MI3290 GP Earth Analyser

Metrel
SKU: METRMI3290GP
  • Assess earthing facilities on mono-pylons and multi-leg pylons
  • Performs 2-, 3-, and 4-pole testing with the Wenner and Schlumberger methods
  • Save thousands of readings to earth tester’s 1GB internal memory
More Info
Typically ships in 2-4 working days

Metrel MI3290 GP Earth Analyser

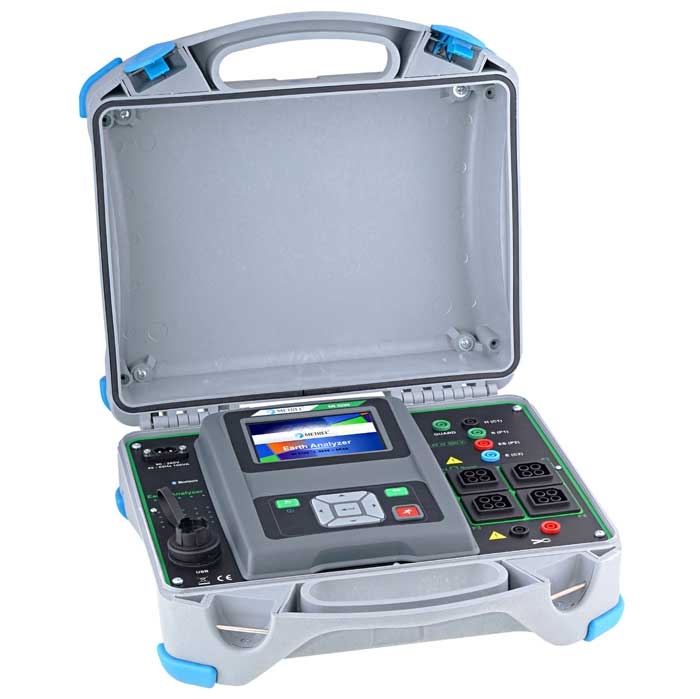

The Metrel MI3290 GP Earth Analyser is a sophisticated instrument that is ideal for testing the earthing facilities on pylons and residences. It can perform earth testing using a range of methods including two-, three- and four-pole testing, Wenner and Schlumberger methods; tower passive one rod testing (with a flex clamp); tower FOP testing (with flex clamp); and mono-tower FOP testing. It is therefore suitable for both mono- and multi-leg pylons.

The Metrel MI3290 GP has a wide frequency range that is ideally suited to extensive earth testing. The range goes from 55Hz up to 15kHz and it is possible to sweep across the entire frequency range during a single test or use selected single or multiple frequencies. A high frequency filter helps prevent interference from electrical noise in order to preserve accuracy.

The 3.4” colour touchscreen on the Metrel MI3290 GP clearly displays results in both numeric and graphical formats. It also allows the operator to use the earth tester via the intuitive menus, although navigation buttons are available as well. Results can be saved to the 1GB internal memory and then exported using a USB cable or via wireless Bluetooth connectivity. Supplied Metrel ES software facilitates analysis, reporting and data transfer.

The Metrel MI3290 GP can work from its own batteries or from the mains so it is suitable for a range of different settings. These include challenging fieldwork thanks to the IP54 ingress protection rating when open and the IP65 ingress protection rating when closed. Accessories in the Metrel MI3290 GP Set include a flex clamp with a 5m shielded cable, a G clamp, test leads, and test probes.

Metrel part number: MI 3290 GP

Testing Facilities

  • 2-, 3-, 4-pole earth resistance test
  • Wenner and Schlumberger specific earth resistance
  • Earth resistance of mono-leg pylons
  • Earth resistance of multi-leg pylons
  • Current measurement (via iron or flex clamps)
Licence key GX GL GF GP
Measurement methods
Ground Z 2-pole ✔ ✔ ✔ ✔
Ground Z 3-pole ✔ ✔ ✔ ✔
Ground Z 4-pole ✔ ✔ ✔ ✔
Single/multi/sweep frequency ✔ ✔ ✔ ✔
Wenner 4-pole ✔ ✔ ✔ ✔
Schlumberger 4-pole ✔ ✔ ✔ ✔
Selective (iron clamp) ✔ ✔
Stakeless 2-clamps ✔ ✔
Transient Impulse Impedance ✔ ✔
HF 25 kHz Impedance ✔ ✔
Step / Touch ✔ ✔
Voltage potential ✔ ✔
Low Impedance 4-point ✔ ✔
Low Resistance 200 mA ✔ ✔
Tower Passive one rod / Flex clamps ✔ ✔
Tower FOP / 1xFlex clamp GX1 ✔
Tower FOP / 4xFlex clamp GX4 Option
Mono Tower FOP / Flex clamp ✔ ✔
Measurement accessory
Current earth spike, 90 cm, 2 pcs
Potential earth spike, 50 cm 2 pcs
G clamp
Shielded test lead on reel, 75 m
Test lead on reel 50 m, 3 pcs (black, green, blue)
Test lead, 5 m, 2 pcs (blue, red)
Set of test probes, crocodile clip and 2 m test lead, 4 pcs		 ✔ ✔ ✔ ✔
Flex clamp 5 m with 15 m shielded cable

4 pcs (GX4)
1 pce (GX1)

 1 pce
Iron clamp, 2 pcs ✔ ✔
Kelvin clamp with 2,5 m cable, 2 pcs ✔ ✔
Step Contact Meter Measuring Set ✔ ✔



Kit Contents

  • Instrument MI 3290
  • Current earth spike 90 cm, 2 pcs
  • Potential earth spike 50 cm, 2 pcs
  • Connection lead black 2 m
  • Test lead 5 m blue
  • Test lead 5 m red
  • Test lead 50 m black on cable reel
  • Test lead 50 m green on cable reel
  • Test lead 50 m blue on cable reel
  • Shielded test lead 75 m on reel
  • G clamp
  • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
  • Bag for accessories
  • USB cable
  • Mains cable
  • Calibration certificate
  • Instruction manual
  • PC SW Metrel ES Manager
  • Licence GP
  • Flex clamp 5 m with 15 m shielded cable
  • Bag for accessories

What's In The Box?

  • Instrument MI 3290
  • Current earth spike 90 cm, 2 pcs
  • Potential earth spike 50 cm, 2 pcs
  • Connection lead black 2 m
  • Test lead 5 m blue
  • Test lead 5 m red
  • Test lead 50 m black on cable reel
  • Test lead 50 m green on cable reel
  • Test lead 50 m blue on cable reel
  • Shielded test lead 75 m on reel
  • G clamp
  • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
  • Bag for accessories
  • USB cable
  • Mains cable
  • Calibration certificate
  • Instruction manual
  • PC SW Metrel ES Manager
  • Licence GP
  • Flex clamp 5 m with 15 m shielded cable
  • Bag for accessories
Specification

Earth resistance (2, 3, 4-pole)

  • Open-terminal test voltage 20 or 40 VAC
  • Short-circuit test current >220mA
  • Test frequencies: 55Hz to 329Hz; 659Hz to 2.63kHz; 3.29kHz to 15kHz
  • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ; 0.00Ω to 199.9Ω
  • Uncertainty: ±(3% + 3 digits); ±(5% + 3 digits); ±(8% + 3 digits)

Selective earth resistance of pylon with flex clamp

  • Open-terminal test voltage 40 VAC
  • Short-circuit test current >220mA
  • Test frequencies: 55Hz to 329Hz; 659Hz to 1.5kHz; passive mode
  • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ; 0.00Ω to 19.99Ω
  • Uncertainty: ±(8% + 3 digits)

Specific earth resistance ro Wenner and Schlumberger method

  • Open-terminal test voltage 20 or 40V AC
  • Short-circuit test current >220mA
  • Test frequency: 164Hz
  • Measurement range: 0.00Ωm to 19.99kΩm
  • Uncertainty: Calculated (conside uncertainty of 4-pole method)

Impulse earth resistance

  • Open-terminal test voltage ~120V peak
  • Short-circuit test current ~6A peak
  • Impulse waveform 10/350µs
  • Measurement range: 0.0Ω to 199Ω
  • Accuracy: ±(8% + 3 digits)

Current RMS (Flex Clamp)

  • Nominal frequency: 45Hz to 1.5kHz
  • Measurement range: 10mA to 49.9A
  • Uncertainty: ±(8% + 3 digits)

General

  • Battery power supply: 14.4V DC (4.4Ah Li-ion)
  • Mains power supply: 90-260 VAC, 45Hz to 65Hz, 100VA (300V Cat II)
  • Degree of protection: IP65 (case closed); IP54 (case open)
  • Dimensions: 360mm x 160mm x 330mm
  • Display: 3.4” colour LCD display with backlight and touchscreen
  • Communication: USB, BT
  • Memory: >1GB
