Metrel MI3290 GX Earth Analyser GX4 Set

Be the first to review this product

  • Multiple flex clamps supplied for testing earthing facilities on electricity pylons
  • Test transformer stations, radio masts, industrial facilities and renewable energy
  • Capable of simulating a lightning strike with a 25kHz high frequency pulse

rrp £8,960.00

now £6,272.00 (Ex. VAT) £7,526.40 (Inc. VAT)

rrp £8,960.00

OR

Please select a free gift below.

  • Description

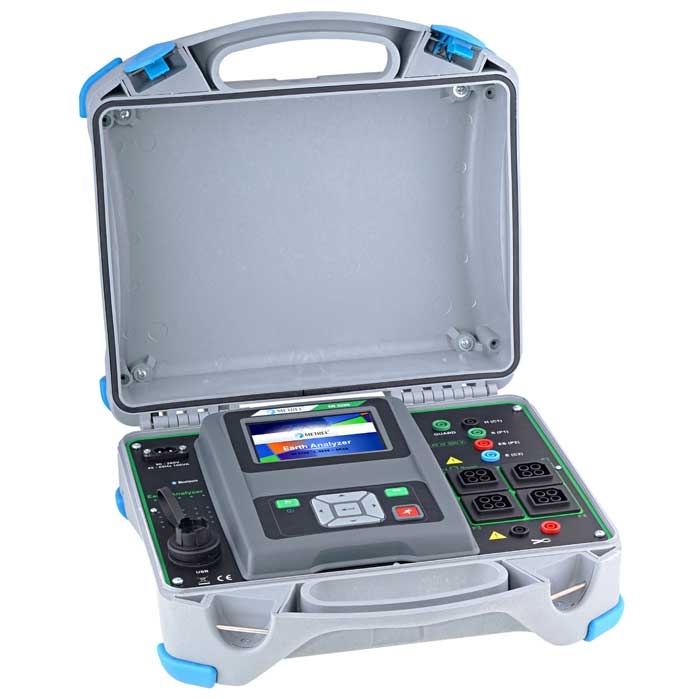

    Metrel MI3290 GX Earth Analyser GX4 Set

    The Metrel MI3290 GX Earth Analyser is a comprehensive earth testing device that can be used to assess earthing facilities on pylons, MV/LV transformers, ski lifts, radio masts, renewable energy installations and industrial complexes.

    The large variety of earth testing methods on the Metrel MI3290 GX is very impressive. It can perform two-, three- or four-pole earth resistance testing and also features the Wenner and Schlumberger methods. Supplied flex and iron clamps allow current measurement and testing of earth resistance on both mono pylons and multi-leg pylons. Notable, the GX4 set has four supplied flex clamps for use on pylons.

    Additionally, the Metrel MI3290 GX is capable of other measurements such as earth potential, low resistance, step and contact measurements, and impulse earth measurements. The large frequency range of 55Hz to 15kHz allows comprehensive testing, either when testing using the pre-selected frequencies or using the whole range in sweep mode. A high-frequency 25kHz pulse can also be used to simulate the effect of a lightning strike.

    Results are shown in either graphical or numerical formats on the Metrel MI3290 GX’s 3.4” colour touchscreen. This is also where the user can see and access the intuitive menus that are used to operate the earth tester although there are also navigation keys available. Single measurements and automatic test sequences are available on the earth tester and it has high immunity for electrical noise.

    The large 1GB internal memory of the Metrel MI3290 GX can save thousands of readings with useful accompanying information. Files can be transferred via a USB cable or wireless Bluetooth connectivity and the earth tester comes supplied with a useful software package that facilitates data transfer, analysis and reporting.

    The Metrel MI3290 GX can run from mains chargers or its own batteries and has an IP54 ingress protection rating when open and an IP65 ingress protection rating when closed. The Metrel MI3290 GX4 Set includes accessories such as iron clamps, a G clamp, a Kelvin clamp, voltmeter, test leads, test probes and much more.

    Metrel part number: MI 3290 GX4

    Testing Facilities

    • 2-, 3-, 4-pole earth resistance test
    • Selective earth resistance (with 1 clamp)
    • Wenner and Schlumberger specific earth resistance
    • Lightning simulation high-frequency 25kHz pulse test
    • Earth resistance of mono-leg pylons
    • Earth resistance of multi-leg pylons
    • Current measurement (via iron or flex clamps)
    • Low ohm resistance measurement with 7mA and 200mA test currents
    • Earth potential measurement
    • Step and contact measurements
    • 10/350µs impulse earth measurement
    Licence key GX GL GF GP
    Measurement methods
    Ground Z 2-pole
    Ground Z 3-pole
    Ground Z 4-pole
    Single/multi/sweep frequency
    Wenner 4-pole
    Schlumberger 4-pole
    Selective (iron clamp)
    Stakeless 2-clamps
    Transient Impulse Impedance
    HF 25 kHz Impedance
    Step / Touch
    Voltage potential
    Low Impedance 4-point
    Low Resistance 200 mA
    Tower Passive one rod / Flex clamps
    Tower FOP / 1xFlex clamp GX1
    Tower FOP / 4xFlex clamp GX4 Option
    Mono Tower FOP / Flex clamp
    Measurement accessory
    Current earth spike, 90 cm, 2 pcs
    Potential earth spike, 50 cm 2 pcs
    G clamp
    Shielded test lead on reel, 75 m
    Test lead on reel 50 m, 3 pcs (black, green, blue)
    Test lead, 5 m, 2 pcs (blue, red)
    Set of test probes, crocodile clip and 2 m test lead, 4 pcs
    Flex clamp 5 m with 15 m shielded cable

    4 pcs (GX4)
    1 pce (GX1)

    1 pce
    Iron clamp, 2 pcs
    Kelvin clamp with 2,5 m cable, 2 pcs
    Step Contact Meter Measuring Set



    Kit Contents

    • Instrument MI 3290
    • Current earth spike 90 cm, 2 pcs
    • Potential earth spike 50 cm, 2 pcs
    • Connection lead black 2 m
    • Test lead 5 m blue
    • Test lead 5 m red
    • Test lead 50 m black on cable reel
    • Test lead 50 m green on cable reel
    • Test lead 50 m blue on cable reel
    • Shielded test lead 75 m on reel
    • G clamp
    • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
    • Bag for accessories
    • USB cable
    • Mains cable
    • Calibration certificate
    • Instruction manual
    • PC SW Metrel ES Manager
    • Licence GX
    • Iron clamp A 1018 with 3,5 m test lead
    • Iron clamp A 1019
    • 4 x flex clamps 5 m with 15 m shielded cable
    • Kelvin clamp
    • Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
    • Voltmeter MI 3295M with 2 wire test lead*
    • Soft carrying bag
    • Step voltage test plate, 2 pcs
    • NiMH battery cells, type AA, 6 pcs
    • Power supply adapter
    • Bag for accessories
  • Specification

    Earth resistance (2, 3, 4-pole)

    • Open-terminal test voltage 20 or 40 VAC
    • Short-circuit test current >220mA
    • Test frequencies: 55Hz to 329Hz; 659Hz to 2.63kHz; 3.29kHz to 15kHz
    • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ; 0.00Ω to 199.9Ω
    • Uncertainty: ±(3% + 3 digits); ±(5% + 3 digits); ±(8% + 3 digits)

    Selective earth resistance with iron clamp

    • Open-terminal test voltage 40VAC
    • Short-circuit test-current >220mA
    • Test frequencies: 55Hz to 329Hz; 659Hz to 1.5kHz
    • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ
    • Uncertainty: ±(8% + 3 digits)

    Selective earth resistance of pylon with flex clamp

    • Open-terminal test voltage 40 VAC
    • Short-circuit test current >220mA
    • Test frequencies: 55Hz to 329Hz; 659Hz to 1.5kHz; passive mode
    • Measurement ranges: 0.010Ω to 19.99kΩ; 0.00Ω to 1.999kΩ; 0.00Ω to 19.99Ω
    • Uncertainty: ±(8% + 3 digits)

    Earth resistance with two iron clamps

    • Test frequency: 82Hz to 329Hz
    • Measurement ranges: 0Ω to 9.99Ω; 10.0Ω to 49.9Ω; 50.0Ω to 100Ω
    • Uncertainty: ±(5% + 2 digits); ±(10% + 2 digits); ±20%

    Specific earth resistance ro Wenner and Schlumberger method

    • Open-terminal test voltage 20 or 40V AC
    • Short-circuit test current >220mA
    • Test frequency: 164Hz
    • Measurement range: 0.00Ωm to 19.99kΩm
    • Uncertainty: Calculated (conside uncertainty of 4-pole method)

    HF-Earth Resistance 3 pole

    • Open-terminal test voltage 40 VAC
    • Short-circuit test current >220mA
    • Test frequency: 25.000Hz
    • Measurement range: 0.00Ω to 19.9Ω; 20.0Ω to 299Ω
    • Uncertainty: ±(3% + 2 digits)

    Impulse earth resistance

    • Open-terminal test voltage ~120V peak
    • Short-circuit test current ~6A peak
    • Impulse waveform 10/350µs
    • Measurement range: 0.0Ω to 199Ω
    • Accuracy: ±(8% + 3 digits)

    DC Resistance RLOW

    • Test current: 200mA
    • Measurement range: 0.00Ω to 1.99kΩ
    • Uncertainty: ±(2% + 2 digits)

    DC Resistance CONT

    • Test current: 7mA
    • Measurement range: 0.00Ω to 19.9kΩ
    • Uncertainty: ±(3% + 2 digits)

    AC impedance

    • Test frequency: 55Hz to 15kHz
    • Measurement range: 0.00Ω to 19.99kΩ
    • Uncertainty: ±(3% + 2 digits)

    Current RMS (Iron Clamp)

    • Nominal frequency: 45Hz to 1.5kHz
    • Measurement range: 1.0mA to 7.99A
    • Uncertainty: ±(2% + 3 digits)

    Current RMS (Flex Clamp)

    • Nominal frequency: 45Hz to 1.5kHz
    • Measurement range: 10mA to 49.9A
    • Uncertainty: ±(8% + 3 digits)

    General

    • Battery power supply: 14.4V DC (4.4Ah Li-ion)
    • Mains power supply: 90-260 VAC, 45Hz to 65Hz, 100VA (300V Cat II)
    • Degree of protection: IP65 (case closed); IP54 (case open)
    • Dimensions: 360mm x 160mm x 330mm
    • Display: 3.4” colour LCD display with backlight and touchscreen
    • Communication: USB, BT
    • Memory: >1GB
  • Supplied Accessories

    • Instrument MI 3290
    • Current earth spike 90 cm, 2 pcs
    • Potential earth spike 50 cm, 2 pcs
    • Connection lead black 2 m
    • Test lead 5 m blue
    • Test lead 5 m red
    • Test lead 50 m black on cable reel
    • Test lead 50 m green on cable reel
    • Test lead 50 m blue on cable reel
    • Shielded test lead 75 m on reel
    • G clamp
    • Set of test probes, crocodile clip and 2 m test lead, 4 pcs
    • Bag for accessories
    • USB cable
    • Mains cable
    • Calibration certificate
    • Instruction manual
    • PC SW Metrel ES Manager
    • Licence GX
    • Iron clamp A 1018 with 3,5 m test lead
    • Iron clamp A 1019
    • 4 x flex clamps 5 m with 15 m shielded cable
    • Kelvin clamp
    • Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
    • Voltmeter MI 3295M with 2 wire test lead*
    • Soft carrying bag
    • Step voltage test plate, 2 pcs
    • NiMH battery cells, type AA, 6 pcs
    • Power supply adapter
    • Bag for accessories
