Radiodetection C.A.T4+ Cable Avoidance Tool with Depth Function

SKU: RADICAT4PLUSSTR
  • Accurately pin-point underground cables, pipes and structures
  • High contrast, backlit LCD display with Metric or Imperial depth units
  • Network Rail approved
More Info
In Stock - Available Next Day

Radiodetection C.A.T4+ Cable Avoidance Tool with Depth Function

The Radiodetection C.A.T4+ cable avoidance tool allows ground workers to accurately detect, map and check how deep underground utility services such as power cables, data/telecoms supplies, pipe work and other structures are when excavating.

It is important to note that the CAT4+ cable avoidance tool is recommended for use alongside Radiodection’s Genny4 Signal Generator (select above if required). This allows for locating services that do not generate an electromagnetic field or radio signal, in order for them to be detected by the C.A.T4+ alone.

Moreover, and in addition to the standard C.A.T4, the CAT4+ features a depth function. When used in ‘genny mode’ (which requires use of the Genny4), the instrument will display a depth indication to a located utility service. Note the depth measurements can be displayed as either Metric or Imperial units - please be sure to let us know which unit is preferred upon ordering.

The C.A.T4+ includes the integrated ‘StrikeAlert’ function that displays the location of services that are buried at a shallow depth, which could potentially cause a ‘strike’ risk if left undetected.

The C.A.T4+ features 4 modes to assist in detecting different utility types; avoidance mode, genny mode, power mode and radio mode:

  • Avoidance mode - detects genny, power and radio signals at the same time
  • Power mode - detects EMFs that surround buried electricity supply cables
  • Radio mode - detects long-range radio signals travelling through buried pipes and cables
  • Genny mode - used to detect signals generated by the optional Radiodetection Genny4 Signal Generator. Also displays depths of buried utilities when used with the C.A.T4+ cable avoidance tool

Similar to the other C.A.T4 cable avoidance tools, the C.A.T4+ features ‘Dynamic Overload Protection’ that filters out electrical noise that can affect the signals used to detect underground utility services. Any signals detected are presented by means of a ‘tidemark’ bar graph on a high-contrast, backlit LCD screen.

All Radiodetection CAT4 and Genny4 products are Network Rail approved – please click here to view the Network Rail Certificate.

  C.A.T4 C.A.T4+ gC.A.T4+
Avoidance mode
Genny signal locate
Power signal locate
Radio signal locate ✔  ✔
Smaller diameter locate frequency ✔
eCert
Dynamic overload protection
Depth
StrikeAlert
Data aquisition
 Service due indicator
 SWING warning
 CALSafe
 Bluetooth (for future use)
 GPS/GNSS

Radiodetection accessory packs

The Radiodetection C.A.T4+ cable avoidance tool is compatible with number of Radiodetection accessory packs. Each pack contains a Genny4 signal locator and soft carry case as standard with further accessories detailed below:

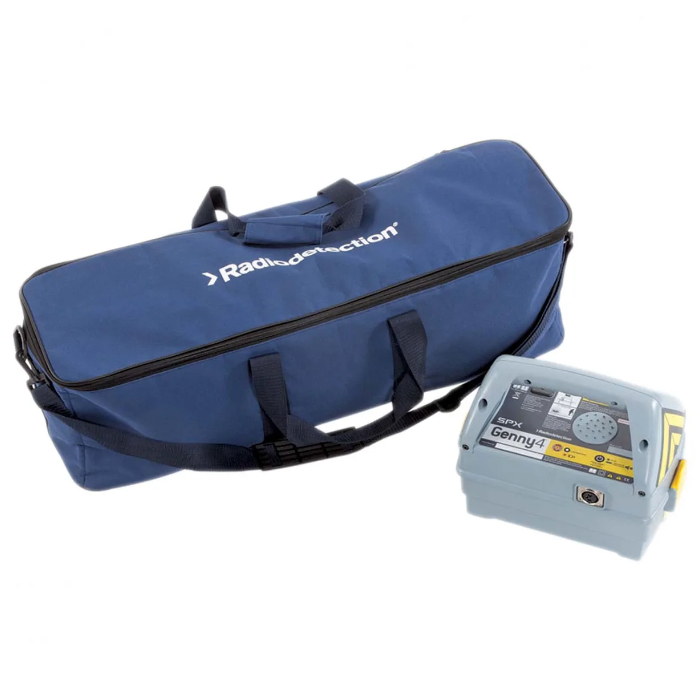

  • Radiodetection Genny4 and Bag Pack- Genny4 signal locator and Radiodetection soft carry case.

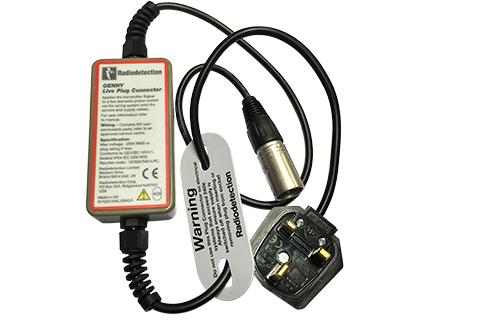

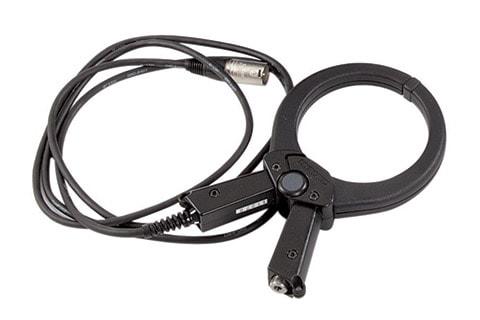

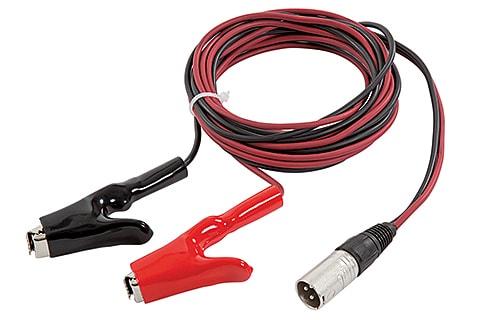

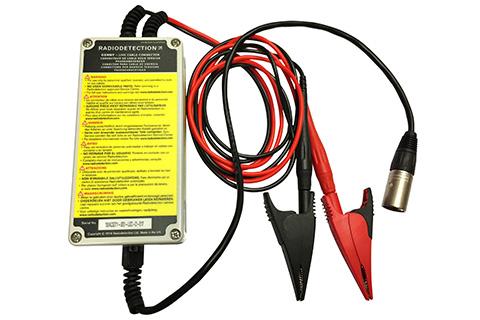

  • Radiodetection Electricians Accessory Pack- kit providing users with a Radiodetection Genny4 signal generator, a live plug connector (UK plug), 100m (4") Clamp and a soft carry case.

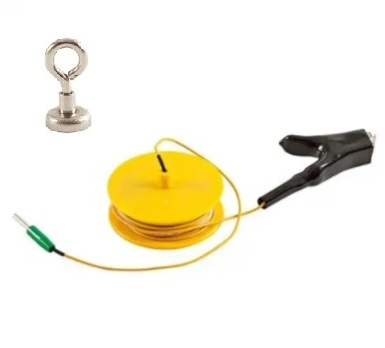

  • Radiodetection Builders Accessory Pack- Radiodetection Genny4 signal generator, a standard 33kHz Sonde, M10 spring and 100mm (4") clamp. A soft carry case enables easy storage and transportation of the Genny and all accessories.

Simply check the box with the kit required when you place your order and your C.A.T4+ cable avoidance tool will be shipped with your chosen accessory pack.

Key Features

  • Accurately pin-point underground cables, pipes and structures
  • High contrast, backlit LCD display with Metric or Imperial depth units
  • Network Rail approved
  • StrikeAlert feature: displays the location of services that are buried at a shallow depth, which could potentially cause a ‘strike’ risk if left undetected
  • Avoidance mode, power mode, radio mode and genny mode
  • Dynamic overload protection filters out electrical noise that can impact detection signals

What's In The Box?

  • Radiodetection C.A.T4+ Cable Avoidance Tool with Depth Function
Specification
Please click here for full product specifications
  • Power signals (P): freq - 50Hz-1.5kHz, sensitivity - 3mA, locating depth(m) - 3 - 2
  • Radio signals (R): freq - 15kHz-30kHz, sensitivity - 25μA, locating depth(m) - 2 - 1
  • Genny4 signals (G): freq - 32.768kHz ±20Hz/131.072kHz ±20Hz, sensitivity - 5 μA, locating depth(m) - 4 - 2
  • Avoidance mode (A):freq - P + R + G as above, as above, sensitivity - 4 - 2
  • Dynamic range: 120dB @ 10Hz
  • Dynamic overload protection: 40dB @ 50Hz
  • Locate accuracy: ±10% of depth
  • Depth accuracy (on undistorted signal and with no adjacent signals): Line - 5% 0.1m to 3mm, Sonde: 5% 0.1m to 7m
  • Horizontal GPS position accuracy: 3m CEP (circular error probable)
  • Operating temp range: -20°C to +50°C
  • Storage temp range: -20°C to 70°C
  • Environmental protection: IP54
  • Batteries: 2 x LR20 (D) 1.5V alkaline
  • Data interface: USB 2.0, Bluetooth Low Energy (Android & Apple)
  • Recommended service interval: 1 year
  • Warranty: 12 months from purchase
  • Data storage capacity: 4GB
  • Calibration warning: Countdown from 31 days before due
