Seaward Apollo 400+ PAT Kits (Choice of Kits)

Be the first to review this product

  • Choice of 5 Seaward Apollo 400+ Kits available with Printers, Scanners, Software
  • Stores up to 2000 appliance records
  • Remote data transfer, bluetooth connectivity, HD colour display

rrp £2,650.00

now £699.00 (Ex. VAT) £838.80 (Inc. VAT)

rrp £2,650.00

* Required Fields

Please select a free gift below.

  • Description

    Seaward Apollo 400+ PAT Tester Kit

    The Seaward Apollo 400+ PAT Tester has updates firmware compared to the old Apollo 400 model which has introduced a search function to the database as well as an improved user interface. There is now also an external rechargeable battery pack that allows the battery to be changed in the field so there is no need to wait for the tester to charge.

    Offering straight-forward and fast PAT testing, plus storage for up to 2000 appliance records and 25 inbuilt auto sequence test (of which one is user editable), the Seaward Apollo 400+ PAT Tester is the ideal versatile, no-nonsense PAT instrument.

    The newly updated Seaward Apollo 400+ features an improved power supply. The external rechargeable battery can be exchanged in the field so there is no need for downtime whilst the first battery is recharged. This is ideal for professional PAT testing operatives with heavy workloads. An additional firmware update facilitates easier navigation through results and introduces a search function as part of an improved user interface.

    • Downloadable PAT tester with inbuilt QWERTY keyboard
    • Battery powered and portable (weighing just 1.5kg)
    • Stores and downloads up to 2000 apppliance records
    • Features high definition colour display
    • Transfers data remotely from field to office
    • Supplied with 25 pre-defined auto sequence tests
    • Communicates via Bluetooth to Seaward PAT label printers and scanners
    • Carries out tests to ensure full compliance with the 4th Edition IET Code of Practice
    • Point to point testing for fixed appliances
    • Downloads into Seaward PATGuard 3 software
    • The basic model within Seawards Apollo range (includes Apollo 400+/500+/600+)
    • Supplied with UKAS calibration certificate and a 2 year warranty

    The Seaward Apollo 400+ can also be purchased as a stand-alone tester here.

    Test n'Tag Labels Promotion

    **Get 10 FREE rolls of Test n' Tag labels with Seaward Apollo+ kits that include a Seaward Test n' Tag Printer. See full details below.

    Featured Accessories And Software Packages

    Seaward PATGuard 3 Elite PAT Testing Software

    The recommended PC software for the Seaward Apollo 400+ PAT Tester, designed as the best way to store, organise and manage your PAT Testing results. Immediately recognising a compatible tester, the software accepts download data either via USB connection or Bluetooth (Windows Bluetooth compatibility required).

    PATGuard Elite 3 has been built with IET requirements in mind and is the most comprehensive software package for Health and Safety management. The software enables users to record, store and report data from risk assessments & workplace hazard findings.

    As part of the upgrade to the Apollo 400+, Seaward PATGuard 3 now incorporates Time Manager 3. This is specifically intended for companies managing off-site or remote testing staff as it provides graphical and statistical records of staff activity.

    Seaward Test N Tag Elite 2 Printer 339A989

    The ideal Apollo 400+ accessory for anyone wanting to create custom PAT labels with ease. The printer is compact yet rugged, offering a long battery life and the capability of printing durable synthetic labels.

    With a low running cost of less than 10p per custom label it won't break the bank and the exclusive custom logo feature could give your business an edge over the competition.

    Seaward Test N Tag Pro Bluetooth Printer 339A980

    Pro Printer is Seaward's lightest, fastest and most affordable PAT printer.

    Printing all relevant PAT test information on durable synthetic labels, the Pro Printer offers two ways to transfer data, either by serial or by recommended wireless Bluetooth connection. This printer also benefits from a low running cost of less than 10p per custom label.





     We Have A Choice Of Five Seaward Apollo 400 Kits:

     PATGuard Elite KitPro Printer Kit 380A9902Pro Printer + PATGuard Elite Kit 380A9903Elite Printer Kit 380A9906Elite Printer + PATGuard Elite Kit 380A9907
    Seaward Apollo 400+ with standard accessories
    Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable)
    Seaward Test n' Tag PRO Printer
    Seaward Test n' Tag ELITE 2 Printer
    Bluetooth Barcode Scanner
    Standard Labels for Test n' Tag PRO / ELITE 2 Printers   10 rolls 10 rolls 6 rolls 6 rolls
    Extra Durable Labels for Test n' Tag ELITE 2 Printer       4 rolls
    Apollo Kit Carry Bag 71G109
    110V Appliance Adaptor
    110V Extension Lead Adaptor
    IEC Adaptor Kit
    PASS and FAIL Labels (not for use with Test n' Tag Printers)
    Seaward Online PAT Training Course


    Seaward Apollo 400+ with PATGuard Elite Kit includes:

    • Seaward Apollo 400+ PAT Tester w/ standard accessories
    • Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
    • Seaward Online PAT Training Course w/ Online Certificate/Exam
    • 1000 Pass Labels
    • 200 Fail Labels
    • 250 Pass Wrap Labels
    • 110V Appliance Adaptor
    • 110V Extension Lead Adaptor
    • IEC Adaptor Kit
    • FREE Seaward Apollo Custom Carry Bag

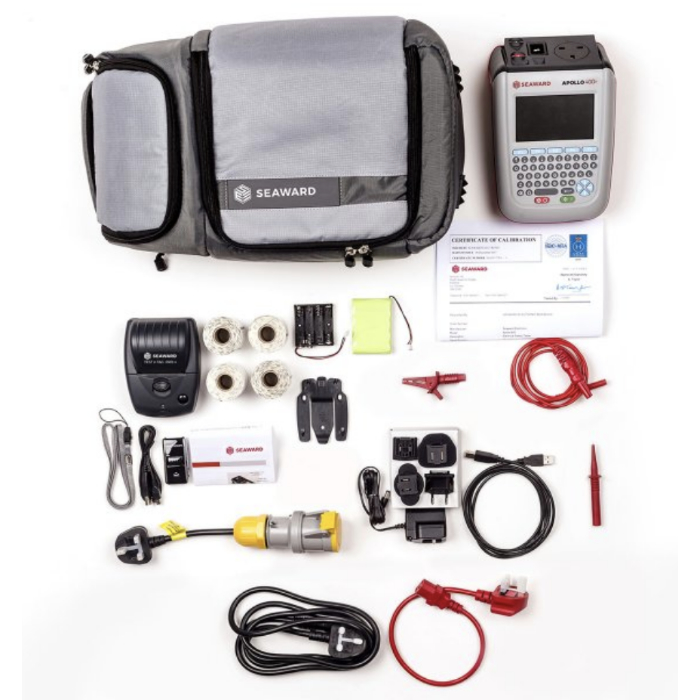

    Seaward Apollo 400+ Pro Printer Kit 380A9902 includes:

    • Seaward Apollo 400+ PAT Tester w/ standard accessories
    • Seaward Test n’ Tag PRO Printer
    • Seaward Bluetooth Barcode Scanner
    • Seaward Apollo Kit Carry Bag 71G109
    • 110V Appliance Adaptor
    • 110V Extension Lead Adaptor
    • FREE 10 x Roll of 350 Test n’ Tag PRO Labels (52x25mm)

     Seaward Apollo 400+ Pro Printer + PATGuard Elite Kit 380A9903 includes:

    • Seaward Apollo 400+ PAT Tester w/ standard accessories
    • Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
    • Seaward Test n’ Tag PRO Printer
    • Seaward Bluetooth Barcode Scanner
    • Seaward Apollo Kit Carry Bag 71G109
    • 110V Appliance Adaptor
    • 110V Extension Lead Adaptor
    • FREE 10 x Roll of 350 Test n’ Tag PRO Labels (52x25mm)

     Seaward Apollo 400+ Elite Printer Kit 380A9906 includes:

    • Seaward Apollo 400+ PAT Tester w/ standard accessories
    • Seaward Test n’ Tag ELITE 2 Printer
    • Seaward Bluetooth Barcode Scanner
    • Seaward Apollo Kit Carry Bag 71G109
    • 110V Appliance Adaptor
    • 110V Extension Lead Adaptor
    • FREE 2 x Roll of 338 Elite extra durable labels (52x25mm)
    • FREE 2 x Roll of 125 Elite extra durable labels (52x75mm)
    • FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm)

     Seaward Apollo 400+ Elite Printer + PATGuard Elite Kit 380A9907 includes:

    • Seaward Apollo 400+ PAT Tester + included accessories
    • Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
    • Seaward Test n’ Tag ELITE 2 Printer
    • Seaward Bluetooth Barcode Scanner
    • Seaward Apollo Carry Case 71G109
    • 110V Appliance Adaptor
    • 110V Extension Lead Adaptor
    • FREE 2 x Roll of 338 Elite extra durable labels (52x25mm)
    • FREE 2 x Roll of 125 Elite extra durable labels (52x75mm)
    • FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm)
    Elite Bundle
  • Specification

    Earth Continuity

    • Test Current: +/- 200mA DC
    • Display Range: 0.01 – 19.99Ω
    • Pass Value: User Defined

    Insulation Resistance

    • Test Voltage: 500V / 250VDC @ 1mA nominal
    • Display Range: 0.01MΩ - 19.99MΩ
    • Pass Value: User Defined

    IEC Lead Test

    • Test voltage: 5VAC nominal
    • Test: Live / Neutral Checks for o/c, s/c and crossed

    Protective Conductor Current/Load

    • Test Voltage: Supply voltage, maximum load current 16A
    • Display Ranges: 0.01mA to 19.99mA
    • Pass Value: User Defined

    Touch Current

    • Test Voltage: Supply Voltage, maximum load current 16A
    • Display Range: 0.00 – 3.50mA
    • Pass Value: User defined

    Load Power/Current

    • Test Voltage: Supply Voltage, maximum load current 16A
    • Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
    • Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

    Alternative Leakage Current

    • Test Voltages: >25VAC <50VAC
    • Display Range: 0.00mA to 19.99mA
    • Pass Value: User Defined

    RCD Test

    • Test Voltage: 230V +10%, -15%
    • Test Current: 30mA / 150mA rms sinusoidal
    • Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
    • Test method: Internal isolation to avoid tripping distribution board RCD

    Power Socket Test

    • Voltage Range: 207V – 253VAC
    • Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

    General

    • Memory size: 2000 records
    • Weight: 1.5kg
    • Dimensions: 230mm x 150mm x 100mm
    • Power Source: Mains or rechargeable battery pack
  • Supplied Accessories

    The Seaward Apollo 400+ comes with the following accessories as standard:

    • Seaward Apollo 400 PAT Tester
    • 30 day free trial of PATGuard 3 software
    • 1x test lead and probe with crocodile clip
    • 0.5m IEC lead
    • Mains power lead
    • USB download cable
    • Quick start guide
    • UKAS calibration certificate
    • 24 months manufacturers warranty
  • Product Documents

    Product Attachments

    View FileApollo Plus Series Datasheet    Size: (614.77 KB)
