Seaward Apollo 500+ PAT Tester Kits (Choice Of Kits)

SKU: SEAWAPOLLO500PLUSKITS
  • A choice of four Apollo 500+ PAT Test Kits with software and label options
  • Comprehensive range of electrical tests updated for 5th edition testing
  • Large internal memory stores up to 10,000 PAT Results and records
More Info
Choose Your Free Gift

For a limited time only, receive a FREE limited edition kit (worth up to £235) with every Apollo 500+ or 600+ purchase.

- Only available while stocks last.


Kit includes: 230V adaptor | Cloverleaf adaptor | 1000 Pass / 1000 Fail labels | Plug checker cards | 1 Year PATGuard 3 software licence | Guide to portable appliance testing

Seaward Apollo 500+ PAT Tester - 5th Edition Compliant

The Seaward Apollo 500+ PAT Tester boasts several updates from the previous Apollo 500. Firstly, the tester is capable of producing QR-coded PAT labels via a Seaward Test n Tag Elite 2 Printer and also reading them via a Seaward scanner. The QR-coded labels can be read via the end user’s smartphone so the customer has ready access to test data. Improved firmware brings a better interface and a database search function whilst an external battery pack allows the user to swap batteries in the field, thus minimising downtime.

Updated to be fully compliant with the 5th edition of the IET Code of Practice, the Apollo 500+ includes functions such as:

  • Pass/Fail limit of 5mA for all protective & touch leakage tests in line with 5th edition
  • New Test sequence for Class 2 FE equipment

The Apollo 500+ the latest intuitive PAT Tester from Seaward Electronic. A lightweight ergonomically designed instrument suitable for individuals and contractors wishing to PAT test in complete compliance with the IET Code of Practice. The tester is primarily battery powered but is also capable of performing mains powered tests and boasts enhanced firmware, QR-code compatibility, and an external battery pack.

The Apollo 500+ has one of the largest internal memories on the market capable of storing up to 10000 PAT records. These saved results can easily be edited using the Apollo’s full QWERTY keypad and simple menu navigation. The tester benefits from an impressive full colour display and five accurately placed function buttons for more efficient testing. The Apollo modernises data transfer by offering the user options to download/upload via the USB cable supplied or via inbuilt Bluetooth.

The Seaward Apollo 500+ boasts an improved power supply in the form of an external rechargeable battery that can be easily changed whenever required. This means that there is no costly downtime for those with heavy PAT testing workloads as there is no need to wait for a battery to charge before recommencing testing.

A comprehensive firmware update improves the user interface of the Seaward Apollo 500+ via enhanced navigation and a new search function. It is now also possible to customise the access levels of different user accounts. One of the most important features of the Seaward Apollo 500+ is the QR code scanning and printing capability. QR codes can convey more information (asset ID, site, location, most recent test and next scheduled test date) than regular barcodes and it also allows end users to check information by scanning the label with the QR Data Viewer App on an iOS or Android smartphone.

Despite its small size the Apollo 500+ has a huge range of professional test procedures including 3 phase testing, earth continuity testing, point to point testing on fixed appliances the tester is also ideal for testing IT equipment along with built-in RCD tests. More common tests such as insulation resistance, IEC lead tests, protective conductor current/load, load power/current, alternative leakage current and power socket testing are also included.

Along with developing of one of the most powerful and user-friendly PAT instruments Seaward have also been instrumental in considering and implementing a facility to tackle the latest risk regulations. The Apollo 500+ comes complete with a built-in Risk Assessment Tool its main facility being the retest period calculator which will consider a given environment and the type of equipment to generate a retest date.

Also available as a stand-alone tester, the Seaward Apollo 500+ PAT Tester is a truly modern instrument, offering a faster more considered approach to PAT Testing.

Test 'n' Tag Labels Promotion

Get 10 rolls of Test'n'Tag labels FREE!

* Offer applies only to kits that Include a Seaward Test n' Tag Elite/Pro Printer

* Choose from two different label sizes: Roll of 350 52 x 25mm Labels OR Roll of 180 of 52 x 75mm perforated labels (compatible with ELITE printer only)

Seaward Apollo 500 PAT Tester Main Features:

  • Ergonomically designed PAT Tester – Designed to fit comfortably in users hands
  • Plug and Play Technology – Designed to speed up testing with an intuitive navigation
  • Advanced fixed appliance testing - Point to point testing on fixed appliances
  • High Definition screen – Large colour screen
  • Full QWERTY Keypad – Speeds up data input
  • Built in Risk Assessment Tool – PAT Tester with Risk Assessment form built in
  • IET compliant PAT Tester – Tester carries out all the tests recommended by the IET
  • Large internal memory – Apollo 500 stores up to 10000 PAT results and records
  • Two ways to download/upload – Transfer data via USB cable or wirelessly via Bluetooth
  • Programmable user tests for non electrical tests and inspections
  • Extensive range of test procedures – quickly and effectively access basic and advanced tests

Featured Accessories And Software Packages

Seaward PATGuard 3 Elite PAT Testing Software

The recommended PC software for the Seaward Apollo 500+ PAT Tester, designed as the best way to store, organise and manage your PAT Testing results. Immediately recognising a compatible tester, the software accepts download data either via USB connection or Bluetooth (Windows Bluetooth compatibility required).

PATGuard Elite 3 has been built with IET requirements in mind and is the most comprehensive software package for Health and Safety management. The software enables users to record, store and report data from risk assessments & workplace hazard findings.

As part of the upgrade to the Apollo 500+, Seaward PATGuard 3 now incorporates Time Manager 3. This is specifically intended for companies managing off-site or remote testing staff as it provides graphical and statistical records of staff activity.

Seaward Test N Tag Elite 2 Printer 339A989

The ideal Apollo 500+ accessory for anyone wanting to create custom PAT labels with ease. The printer is compact yet rugged, offering a long battery life and the capability of printing durable synthetic labels.

With a low running cost of less than 10p per custom label it won't break the bank and the exclusive custom logo feature could give your business an edge over the competition.

Seaward Test N Tag Pro Bluetooth Printer 339A980

Pro Printer is Seaward's lightest, fastest and most affordable PAT printer.

Printing all relevant PAT test information on durable synthetic labels, the Pro Printer offers two ways to transfer data, either by serial or by recommended wireless Bluetooth connection. This printer also benefits from a low running cost of less than 10p per custom label.

Seaward Bluetooth Barcode Scanner 339A923

A portable asset label ID scanner with Bluetooth. Extremely compact and lightweight, making it ideal for mobile applications. Powered by USB rechargable lithium battery. Reads 1D barcode formats code 39, code 93 & code 128. This is used in combination with one of the above Test n' Tag label to speed up re-testing of appliances by scanning the barcode label previously added to bring up the appliance information.

Seaward Bluetooth QR and Barcode Scanner 339A925

A wireless-enabled label ID scanner capable of reading both 1D barcodes and 2D QR barcodes. QR codes can provide more information than a traditional barcode and are also readable via a smartphone. It is a compact, lightweight accessory that works together with the Seaward Test n Tag Elite 2 Printer to streamline the PAT testing process for large workloads.

Seaward QR Data Viewer App

The Seaward QR Data Viewer App can be downloaded to an iOS or Android smartphone in order to read QR codes on appliance ID labels produced by the Seaward Test n Tag Elite 2 Printer. This allows the end user to see pertinent information such as test date, result, and next scheduled test date, thus keeping clients fully informed about appliance testing.

We Have A Choice Of Four Seaward Apollo 500 Kits:

  Pro Printer Kit (380A9896) Pro Printer + PATGuard Elite Kit (380A9897) Elite Printer Kit (380A9899) Elite Printer + PATGuard Elite Kit (380A9900)
Seaward Apollo 500+  with standard accessories
Seaward PATGuard Elite 3 - 1-Year (Upgradable) - 1-Year (Upgradable)
Seaward Test n' Tag PRO Printer - -
Seaward Test n' Tag ELITE 2 Printer - -
Bluetooth Barcode Scanner - -
Seaward Bluetooth QR/Barcode Scanner - -
10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)
Apollo Kit Carry Bag 71G109
110V Appliance Adaptor

We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.

Seaward Apollo 500+ PAT Tester The Seaward Apollo 500+ PAT Tester boasts several updates from the previous Apollo 500. Firstly, the tester is capable of producing QR-coded PAT labels via a Seaward Test n Tag Elite 2 Printer and also reading them via a Seaward scanner. The QR-coded labels can be read via the end user’s smartphone so the customer has ready access to test data. Improved firmware brings a better interface and a database search function whilst an external battery pack allows the user to swap batteries in the field, thus minimising downtime. The Apollo 500+ the latest intuitive PAT Tester from Seaward Electronic. A lightweight ergonomically designed instrument suitable for individuals and contractors wishing to PAT test in complete compliance with the IET Code of Practice. The tester is primarily battery powered but is also capable of performing mains powered tests and boasts enhanced firmware, QR-code compatibility, and an external battery pack. The Apollo 500+ has one of the largest internal memories on the market capable of storing up to 10000 PAT records. These saved results can easily be edited using the Apollo’s full QWERTY keypad and simple menu navigation. The tester benefits from an impressive full colour display and five accurately placed function buttons for more efficient testing. The Apollo modernises data transfer by offering the user options to download/upload via the USB cable supplied or via inbuilt Bluetooth. The Seaward Apollo 500+ boasts an improved power supply in the form of an external rechargeable battery that can be easily changed whenever required. This means that there is no costly downtime for those with heavy PAT testing workloads as there is no need to wait for a battery to charge before recommencing testing. A comprehensive firmware update improves the user interface of the Seaward Apollo 500+ via enhanced navigation and a new search function. It is now also possible to customise the access levels of different user accounts. One of the most important features of the Seaward Apollo 500+ is the QR code scanning and printing capability. QR codes can convey more information (asset ID, site, location, most recent test and next scheduled test date) than regular barcodes and it also allows end users to check information by scanning the label with the QR Data Viewer App on an iOS or Android smartphone. Despite its small size the Apollo 500+ has a huge range of professional test procedures including 3 phase testing, earth continuity testing, point to point testing on fixed appliances the tester is also ideal for testing IT equipment along with built-in RCD tests. More common tests such as insulation resistance, IEC lead tests, protective conductor current/load, load power/current, alternative leakage current and power socket testing are also included. Along with developing of one of the most powerful and user-friendly PAT instruments Seaward have also been instrumental in considering and implementing a facility to tackle the latest risk regulations. The Apollo 500+ comes complete with a built-in Risk Assessment Tool its main facility being the retest period calculator which will consider a given environment and the type of equipment to generate a retest date. Also available as a stand-alone tester, the Seaward Apollo 500+ PAT Tester is a truly modern instrument, offering a faster more considered approach to PAT Testing. Test n'Tag Labels Promotion **Get 10 FREE rolls of Test n' Tag labels with Seaward Apollo+ kits that include a Seaward Test n' Tag Printer. See full details below. Seaward Apollo 500 PAT Tester Main Features: Ergonomically designed PAT Tester – Designed to fit comfortably in users hands Plug and Play Technology – Designed to speed up testing with an intuitive navigation Advanced fixed appliance testing - Point to point testing on fixed appliances High Definition screen – Large colour screen Full QWERTY Keypad – Speeds up data input Built in Risk Assessment Tool – PAT Tester with Risk Assessment form built in IET compliant PAT Tester – Tester carries out all the tests recommended by the IET Large internal memory – Apollo 500 stores up to 10000 PAT results and records Two ways to download/upload – Transfer data via USB cable or wirelessly via Bluetooth Programmable user tests for non electrical tests and inspections Extensive range of test procedures – quickly and effectively access basic and advanced tests   Featured Accessories And Software Packages Seaward PATGuard 3 Elite PAT Testing Software The recommended PC software for the Seaward Apollo 500+ PAT Tester, designed as the best way to store, organise and manage your PAT Testing results. Immediately recognising a compatible tester, the software accepts download data either via USB connection or Bluetooth (Windows Bluetooth compatibility required). PATGuard Elite 3 has been built with IET requirements in mind and is the most comprehensive software package for Health and Safety management. The software enables users to record, store and report data from risk assessments & workplace hazard findings. As part of the upgrade to the Apollo 500+, Seaward PATGuard 3 now incorporates Time Manager 3. This is specifically intended for companies managing off-site or remote testing staff as it provides graphical and statistical records of staff activity. Seaward Test N Tag Elite 2 Printer 339A989 The ideal Apollo 500+ accessory for anyone wanting to create custom PAT labels with ease. The printer is compact yet rugged, offering a long battery life and the capability of printing durable synthetic labels. With a low running cost of less than 10p per custom label it won't break the bank and the exclusive custom logo feature could give your business an edge over the competition. Seaward Test N Tag Pro Bluetooth Printer 339A980 Pro Printer is Seaward's lightest, fastest and most affordable PAT printer. Printing all relevant PAT test information on durable synthetic labels, the Pro Printer offers two ways to transfer data, either by serial or by recommended wireless Bluetooth connection. This printer also benefits from a low running cost of less than 10p per custom label.   Seaward Bluetooth Barcode Scanner 339A923 A portable asset label ID scanner with Bluetooth. Extremely compact and lightweight, making it ideal for mobile applications. Powered by USB rechargable lithium battery. Reads 1D barcode formats code 39, code 93 & code 128. This is used in combination with one of the above Test n' Tag label to speed up re-testing of appliances by scanning the barcode label previously added to bring up the appliance information.   Seaward Bluetooth QR and Barcode Scanner 339A925 A wireless-enabled label ID scanner capable of reading both 1D barcodes and 2D QR barcodes. QR codes can provide more information than a traditional barcode and are also readable via a smartphone. It is a compact, lightweight accessory that works together with the Seaward Test n Tag Elite 2 Printer to streamline the PAT testing process for large workloads. Seaward QR Data Viewer App The Seaward QR Data Viewer App can be downloaded to an iOS or Android smartphone in order to read QR codes on appliance ID labels produced by the Seaward Test n Tag Elite 2 Printer. This allows the end user to see pertinent information such as test date, result, and next scheduled test date, thus keeping clients fully informed about appliance testing.  We Have A Choice Of Five Seaward Apollo 500 Kits:  PATGuard Elite KitPro Printer Kit (380A9896)Pro Printer + PATGuard Elite Kit (380A9897)Elite Printer Kit (380A9899)Elite Printer + PATGuard Elite Kit (380A9900) Seaward Apollo 500+  with standard accessories ✔ ✔ ✔ ✔ ✔ Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable) Seaward Test n' Tag PRO Printer   ✔ ✔     Seaward Test n' Tag ELITE 2 Printer       ✔ ✔ Bluetooth Barcode Scanner   ✔ ✔     Seaward Bluetooth QR/Barcode Scanner       ✔ ✔ Standard Labels for Test n' Tag PRO / ELITE 2 Printers   10 rolls 10 rolls 6 rolls 6 rolls Extra Durable Labels for Test n' Tag ELITE 2 Printer       4 rolls 4 rolls Apollo Kit Carry Bag 71G109   ✔ ✔ ✔ ✔ 110V Appliance Adaptor ✔ ✔ ✔ ✔ ✔ 110V Extension Lead Adaptor ✔ ✔ ✔ ✔ ✔ IEC Adaptor Kit ✔         PASS & FAIL Labels (not for use with Test n' Tag printers ✔         Seaward Apollo 500+ with PATGuard Elite Kit includes: Seaward Apollo 500+ PAT Tester + included accessories Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License) 1000 Pass Labels 200 Fail Labels 250 Pass Wrap Labels 110V Appliance Adaptor 110V Extension Lead Adaptor IEC Adaptor Kit Seaward Apollo 500+ Pro Printer Kit 380A9896 includes: Seaward Apollo 500+ PAT Tester + included accessories Seaward Test n’ Tag PRO Printer Seaward Bluetooth Barcode Scanner Seaward Apollo Carry Case 71G109 110V Appliance Adaptor 110V Extension Lead Adaptor FREE 10 x Roll of 350 Test n’ Tag PRO Labels (52x25mm) Seaward Apollo 500+ Pro Printer + PATGuard Elite Kit 380A9897 Includes: Seaward Apollo 500+ PAT Tester + included accessories Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License) Seaward Test n’ Tag PRO Printer Seaward Bluetooth Barcode Scanner Seaward Apollo Carry Case 71G109 110V Appliance Adaptor 110V Extension Lead Adaptor FREE 10 x Roll of 350 Test n’ Tag PRO Labels (52x25mm) Seaward Apollo 500+ Elite Printer Kit 380A9899 Includes: Seaward Apollo 500+ PAT Tester + included accessories Seaward Test n’ Tag ELITE 2 Printer Seaward Bluetooth QR and Barcode Scanner Seaward Apollo Carry Case 71G109 110V Appliance Adaptor 110V Extension Lead Adaptor FREE 2 x Roll of 338 Elite extra durable labels (52x25mm) FREE 2 x Roll of 125 Elite extra durable labels (52x75mm) FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm) Seaward Apollo 500+ Elite Printer + PATGuard Elite Kit 380A9900 Includes: Seaward Apollo 500+ PAT Tester + included accessories Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License) Seaward Test n’ Tag ELITE 2 Printer Seaward Bluetooth QR and Barcode Scanner Seaward Apollo Carry Case 71G109 110V Appliance Adaptor 110V Extension Lead Adaptor FREE 2 x Roll of 338 Elite extra durable labels (52x25mm) FREE 2 x Roll of 125 Elite extra durable labels (52x75mm) FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm)

What's In The Box?



The Seaward Apollo 500+ standard model includes:

  • Seaward Apollo 500+ PAT Tester Part Number 380A913
  • UKAS Calibration Certificate
  • 2 Year Warranty (requires product registration)
  • Quick Start Guide
  • Mains Power Lead
  • 2 x Test Leads with Probes/Croc Clips
  • 0.5m IEC Lead
  • USB Download Cable

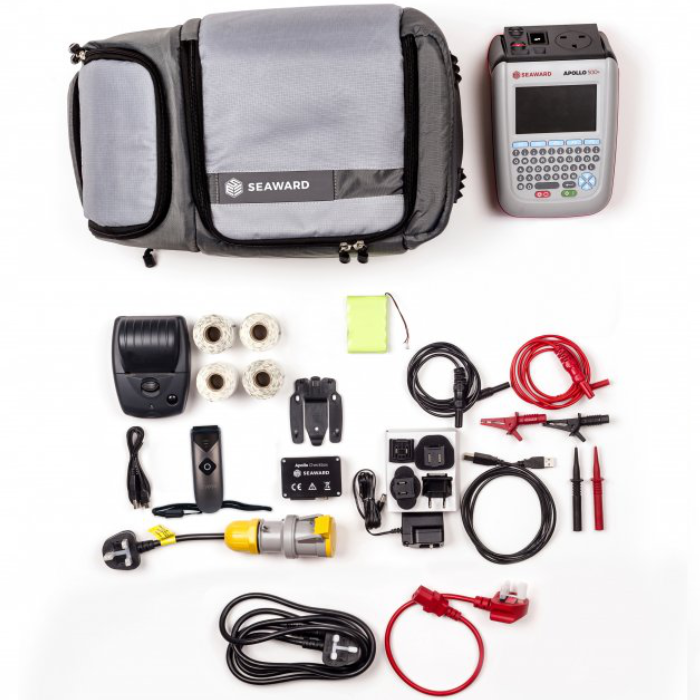

Seaward Apollo 500+ Pro Printer Kit 380A9896 includes:

  • Seaward Apollo 500+ PAT Tester + included accessories
  • Seaward Test n’ Tag PRO Printer
  • Seaward Bluetooth 1D Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)

Seaward Apollo 500+ Pro Printer + PATGuard Elite Kit 380A9897 Includes:

  • Seaward Apollo 500+ PAT Tester + included accessories
  • Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
  • Seaward Test n’ Tag PRO Printer
  • Seaward Bluetooth 1D Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)

Seaward Apollo 500+ Elite Printer Kit 380A9899 Includes:

  • Seaward Apollo 500+ PAT Tester + included accessories
  • Seaward Test n’ Tag ELITE 2 Printer
  • Seaward Bluetooth QR and 2D Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)

Seaward Apollo 500+ Elite Printer + PATGuard Elite Kit 380A9900 Includes:

  • Seaward Apollo 500+ PAT Tester + included accessories
  • Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
  • Seaward Test n’ Tag ELITE 2 Printer
  • Seaward Bluetooth QR and 2D Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 10 x Free Rolls of Labels for either Pro or Elite Printer (see above for details)
Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250V DC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5V ac nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
  • Display Range: 0.00kVA – 4.00kVA 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25Vac <50Vac
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%,-15%
  • Test Current: 30mA / 150mA rms sinusoidal
  • Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size 10,000 records
  • Weight 1.5kg
  • Dimensions 230mm x 150mm x 100mm
  • Power Source Mains or Rechargeable battery pack
